Front Right Brake Caliper for 2001-2006 Hyundai Santa Fe & More - Nugeon 99-00816B

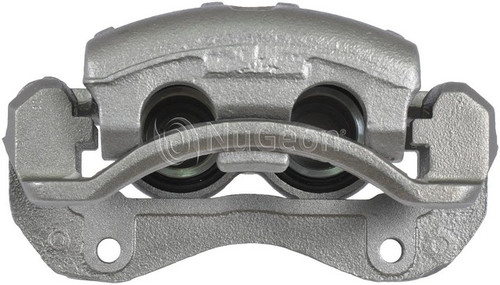

Nugeon 99-00816B front right brake caliper for the 2001-2006 Hyundai Santa Fe and other vehicles clamps the brake pads against the rotor when you press the pedal. This remanufactured disc brake caliper is a floating design.
- Two steel pistons, each 43 mm (1.69 in) across
- Cast iron caliper housing
- Rust-preventative finish on the caliper
- Banjo bolt inlet with an M10-1.0 thread and an M10-1.0 bleeder screw
Quick facts
- Part: Nugeon 99-00816B brake caliper
- Also called: disc brake caliper
- Fits: 2001-2006 Hyundai Santa Fe and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
Pulling to one side under braking, fluid around the caliper or uneven pad wear can mean a caliper is sticking or leaking. A worn rotor or a collapsed brake hose can be behind those signs too, so find the cause before buying. Calipers are normally replaced as a pair, one on each side of the axle; this listing is one front right caliper, and the left is a separate part.
Fits
This front right caliper fits the 2001-2006 Hyundai Santa Fe, the 2002-2003 Hyundai XG350 and the 2001 Hyundai XG300.
Specifications
Fit and size
- Position: Front right
- Sold individually: 1 caliper per listing
- Piston diameter: 43 mm (1.69 in)
- Piston quantity: 2
- Bleeder screw thread: M10-1.0
- Inlet fitting: banjo bolt, M10-1.0 thread
- Housing cast numbers: BC140047 BC140044 L
- Bracket cast number: BC412035
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Country of origin: Mexico
In the box
One brake caliper with its bracket, caliper slides, dust boots, bleeder screw and cap, crush washers and caliper and pad hardware. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D864
Frequently Asked Questions
Is this a brake caliper replacement for the front right of a 2001-2006 Hyundai Santa Fe?
Yes. Nugeon 99-00816B is a front right brake caliper for the 2001-2006 Hyundai Santa Fe, and it also fits the 2002-2003 Hyundai XG350 and the 2001 Hyundai XG300.
What comes with this Nugeon caliper?
Nugeon 99-00816B comes with the bracket, caliper slides, dust boots, bleeder screw and cap, crush washers and pad hardware. Pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included.
Is this Nugeon brake caliper remanufactured?
Yes. Nugeon 99-00816B is a remanufactured floating caliper with two steel pistons, each 43 mm (1.69 in) across.
How can I tell this brake caliper may be sticking or failing?
Pulling to one side when braking, fluid leaking around the caliper or pads that wear unevenly can be signs of a caliper problem. A brake shop can confirm it, and a failing caliper should be replaced promptly.
What size is the bleeder screw on the 99-00816B caliper?
The bleeder screw on Nugeon 99-00816B is M10-1.0, and the inlet fitting is a banjo bolt with an M10-1.0 thread.
