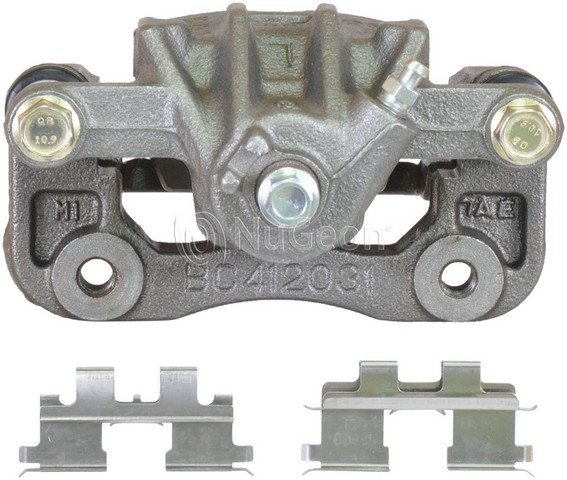

Nugeon 99-00835B rear left brake caliper for the 2007-2009 Hyundai Elantra clamps the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is made for the rear left wheel.
- Floating caliper with a single 30 mm steel piston
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting for the brake line
- Bleeder screw and bleeder screw cap included
Quick facts
- Part: Nugeon 99-00835B brake caliper
- Also called: disc brake caliper
- Fits: 2007-2009 Hyundai Elantra
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
Signs a disc brake caliper may be failing include the car pulling to one side when braking, uneven pad wear or brake fluid around the caliper. A worn rotor, worn pads or a restricted brake hose can be behind these signs as well, so find the cause before replacing the caliper.
Fits
This rear brake caliper for the 2007-2009 Hyundai Elantra goes on the left side, and that position takes one. This listing is one caliper; the rear right is a separate part, and both rear sides are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston diameter: 30 mm (1.18 in)
- Bleeder screw thread: M10-1.0
- Inlet fitting: banjo bolt, M10 - 1.0 thread
- Cast numbers: housing BC140117, bracket BC412031
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Country of origin: Mexico
In the box
One brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, a crush washer, and the bleeder screw with its cap. Brake pads, wear sensors, anti-squeal shims, bracket mounting bolts and mounting bolts are not included; the old bolts may not be reusable, so plan on new ones.
Interchange / FMSI:
FMSI: D813
Frequently Asked Questions
Is this the right replacement brake caliper for the 2007-2009 Hyundai Elantra?
Yes. Nugeon 99-00835B fits the 2007-2009 Hyundai Elantra on the rear left. The rear right takes its own separate caliper.
Does the Nugeon caliper come with the bracket and bleeder screw?
Yes. Nugeon 99-00835B includes the bracket, slides, dust boots, hardware, bleeder screw with cap and crush washer. Brake pads and bracket mounting bolts are not included.
What size is the piston and bleeder thread on this rear left caliper?
The single steel piston measures 30 mm (1.18 in) across, and the bleeder screw thread is M10-1.0.
What is the Nugeon 99-00835B caliper housing made of?
The housing is cast iron with a rust-preventative finish, and the piston is steel. This is a floating-type caliper.
How can I tell if this rear left brake caliper is sticking?
Signs can include pulling to one side when braking, uneven pad wear seen during a brake service, or brake fluid around the caliper. A shop can test the hydraulics.
