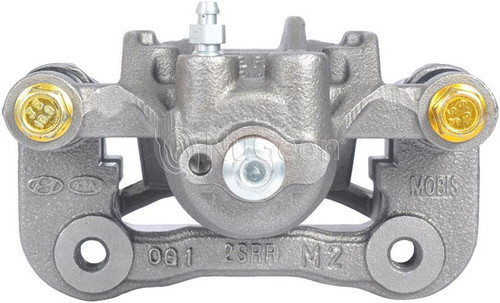

Nugeon 99-00857A rear right brake caliper for the 2011-2016 Kia Sportage and other vehicles squeezes the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper sits at the rear right wheel position.
- Floating caliper with one steel piston, 34 mm (1.34 in) in diameter
- Cast iron caliper casting with a rust-preventative finish
- Banjo bolt inlet fitting with an M10 - 1.0 thread, plus crush washers
- Bleeder screw with cap, M10-1.0 thread
Quick facts
- Part: Nugeon 99-00857A brake caliper
- Also called: disc brake caliper
- Fits: 2011-2016 Kia Sportage and other vehicles
- Position: Rear right
- Material: Cast iron casting, steel piston
- Condition: Remanufactured
A pull to one side under braking, uneven pad wear or brake fluid around the dust boot can mean the caliper is worn, though a collapsed brake hose or a worn pad can be behind a pull too, so find out which before buying. Rear calipers are normally replaced as a pair, so plan on the rear left separately; this listing is one caliper for the rear right.
Fits
It is a rear right brake caliper for the 2011-2016 Kia Sportage and a Tucson brake caliper for the 2010-2014 Hyundai Tucson; the rear right wheel on each needs one.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1 (this side)
- Piston diameter: 34 mm (1.34 in)
- Piston quantity: 1
- Bleeder screw thread: M10-1.0
- Inlet fitting: banjo bolt, M10 - 1.0 thread, 1 banjo bolt
Build and materials
- Type: floating caliper, remanufactured
- Caliper casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box

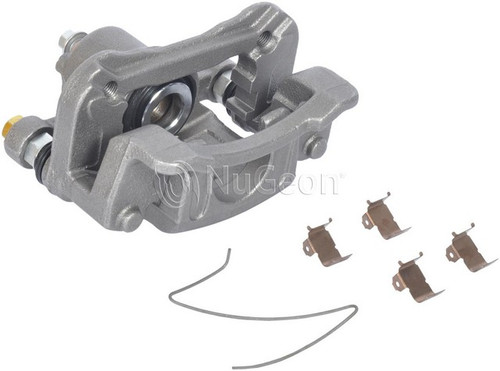

One brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap and crush washers. Brake pads, anti-squeal shims, wear sensors, bracket mounting bolts and caliper mounting bolts are not included, so plan on new bolts rather than reusing the old ones.
Interchange / FMSI:
FMSI: D1398
Frequently Asked Questions
Does this rear right caliper fit the 2011-2016 Kia Sportage?
Yes. Nugeon 99-00857A is a rear right caliper for the 2011-2016 Kia Sportage, and it also fits the 2010-2014 Hyundai Tucson.
Does this caliper come with the bracket and bleeder screw?
Yes. The bracket, bleeder screw with cap, slides, dust boots, hardware and crush washers are included. Brake pads, shims, wear sensors and mounting bolts are not.
What size is the piston on the Nugeon caliper?
The Nugeon 99-00857A has one steel piston, 34 mm (1.34 in) across, in a floating caliper with an M10-1.0 bleeder screw thread.
What thread does the banjo bolt inlet on this brake caliper use?
The inlet fitting is a banjo bolt type with an M10 - 1.0 thread, and the bleeder screw is M10-1.0. Crush washers are included.
Is this Nugeon brake caliper new or remanufactured?
Nugeon 99-00857A is a remanufactured floating caliper with a cast iron casting and a rust-preventative finish.
