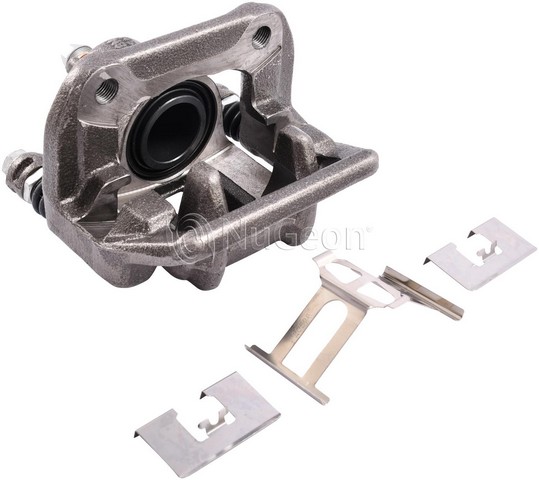

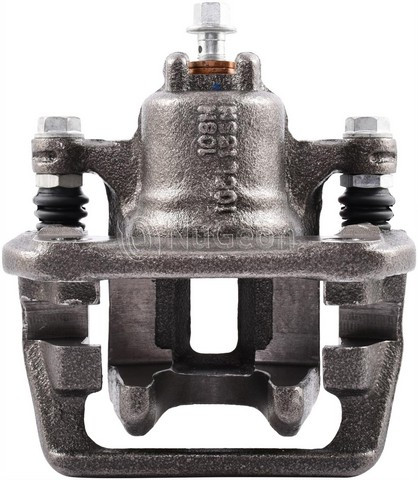

Nugeon 99-01028B rear left brake caliper for the 2007-2016 Honda CR-V and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper uses hydraulic pressure from the brake line to push its piston against the pad.
- Floating caliper with a single 38 mm steel piston
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting with an M10-1.0 inlet thread
- Bleeder screw with an M10-1.25 thread
Quick facts
- Part: Nugeon 99-01028B brake caliper
- Also called: disc brake caliper
- Fits: 2007-2016 Honda CR-V and other vehicles
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
Pulling to one side when braking, a burning smell from one wheel or fluid around the caliper can mean this caliper is sticking or leaking. A worn brake hose or worn pads can also produce these signs, so find the cause before you replace the caliper.
Fits
It is a rear caliper for the 2007-2016 Honda CR-V, and it also fits the 2007-2018 Acura RDX and the 2012-2015 Honda Crosstour. This listing is one rear left caliper; the rear right is a separate part, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston diameter: 38 mm (1.496 in)
- Piston quantity: 1
- Inlet port thread: M10-1.0 x 23.4
- Bleeder thread: M10-1.25
- Housing cast numbers: 10CL, WF
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Inlet fitting: Banjo bolt
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw, banjo bolt and crush washers. This listing holds one caliper, and the rear left takes one. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, the pad hardware and the bracket mounting bolts are not included, so plan on new mounting bolts.
Frequently Asked Questions
Is this a 2007-2016 Honda CR-V caliper for the rear left wheel?
Yes. Nugeon 99-01028B is the rear left caliper for the 2007-2016 Honda CR-V. If your car is a different one, look it up in the "Vehicles it fits" section on this page.
Does this disc brake caliper come with a bracket and slides?
Yes. Nugeon 99-01028B includes the mounting bracket, caliper slides, dust boots, bleeder screw, banjo bolt and crush washers. Brake pads and the bracket mounting bolts are not included.
Is the Nugeon caliper floating or fixed?
Floating. This rear caliper has a single 38 mm steel piston and a cast iron housing with a rust-preventative finish.
What signs can show a rear brake caliper is sticking?
A pull to one side when braking, a burning smell from one wheel or a rear brake that seems to drag can be signs. A shop can test the brake hydraulics safely.
What thread does the bleeder screw on this rear left caliper use?
The bleeder screw is M10-1.25. The banjo bolt inlet port is M10-1.0 x 23.4.
