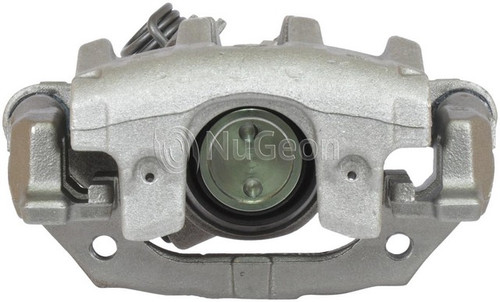

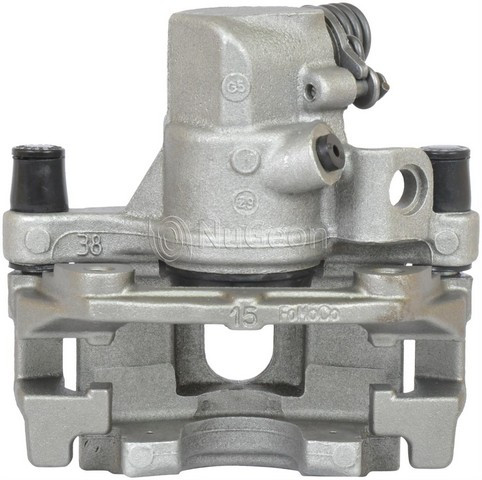

Nugeon 99-01169A rear left brake caliper for the 2004-2013 Mazda 3 and other vehicles squeezes the pads against the rotor to slow the wheel. This is a remanufactured disc brake caliper that takes hydraulic pressure from the brake line.
A car that pulls to one side under braking, fluid at the caliper or a pad worn much more on one side can mean a sticking caliper. Other parts give similar signs, so when the wheel is off for a brake service, look over the dust boot and the pad wear before replacing the caliper.
This brake caliper is a direct-fit replacement for the 2004-2013 Mazda 3 and the 2009-2013 Mazda 3 Sport. The rear axle takes one caliper on each side; this listing is the left one, the right is a separate part, and both sides are normally done together.
Fit and size
Build and materials
One caliper with its bracket, caliper slides, dust boots, bleeder screw, caliper and pad hardware and crush washers. Pads, anti-squeal shims, wear sensors, a grease pack, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new mounting bolts.
Interchange / FMSI:
FMSI: D973
Is this the rear brake caliper for the 2004-2013 Mazda 3 and the 2009-2013 Mazda 3 Sport?
Yes. Nugeon 99-01169A fits both the 2004-2013 Mazda 3 and the 2009-2013 Mazda 3 Sport on the rear left. The right side is a separate part.
Which side of the 2004-2013 Mazda 3 does this rear caliper go on?
The rear left. The 2004-2013 Mazda 3 takes one caliper on each side of the rear axle, so the right side is ordered separately.
What comes with this Nugeon caliper besides the caliper body?
The bracket, slides, dust boots, bleeder screw, caliper and pad hardware and crush washers come with it. Pads, shims, wear sensors and bracket mounting bolts are not included.
What thread does the bleeder screw on Nugeon 99-01169A use?
It is M10-1.0. The line inlet port on Nugeon 99-01169A also has an M10-1.0 thread.
Is this Nugeon brake caliper a floating or a fixed design?
Floating. This remanufactured caliper has a single steel piston with a 38 mm (1.49 in) outside diameter.
