Nugeon 99-01255B front right brake caliper for the 2018-2020 Mitsubishi Outlander PHEV and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured caliper replaces a unit that leaks fluid or sticks.
- Floating caliper with two steel pistons
- Cast iron housing with a rust-preventative finish

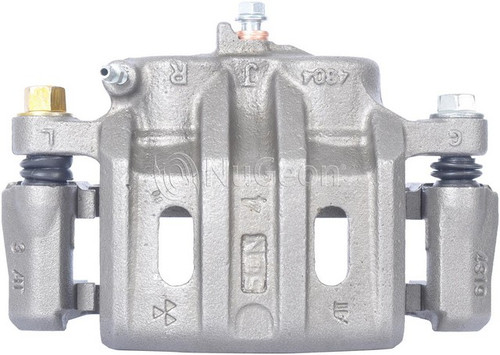

- Cast number 4304 on the housing and 4319 on the bracket
- Banjo bolt inlet fitting with an M10-1.0 x 27.32 port thread
Quick facts
- Part: Nugeon 99-01255B brake caliper
- Also called: disc brake caliper
- Fits: 2018-2020 Mitsubishi Outlander PHEV and other vehicles
- Position: Front right
- Material: Cast iron housing, steel pistons
- Condition: Remanufactured
Before you replace this disc brake caliper, rule out worn pads, a damaged brake hose and a rotor fault, since pulling to one side or uneven pad wear can come from those too. A brake fluid leak at the caliper is another sign to have it looked at. Front calipers are normally replaced as a pair, and this listing is a single caliper.
Fits
It is a direct-fit replacement for the 2018-2020 Mitsubishi Outlander PHEV, and it is a brake caliper for the 2009-2015 Mitsubishi Lancer and the 2005-2006 Mitsubishi Outlander as well.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston diameter: 43 mm (1.693 in)
- Bleeder screw thread: M7-1.0
Build and materials
- Caliper type: Floating, 2 pistons
- Piston material: Steel
- Caliper casting material: Cast iron
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box

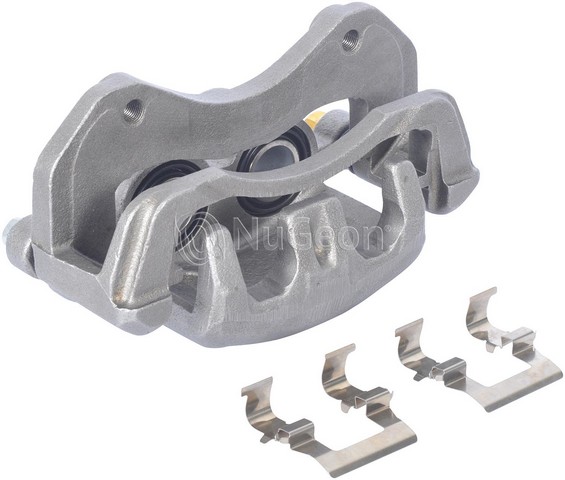

One remanufactured brake caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. This listing holds one caliper; the front right position takes one, and the front left is ordered separately. Pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bolts.
Frequently Asked Questions
Is this Nugeon brake caliper the right one for the 2009-2015 Mitsubishi Lancer?
Yes, Nugeon 99-01255B is a front right brake caliper that fits the 2009-2015 Mitsubishi Lancer and the 2018-2020 Mitsubishi Outlander PHEV.
Does this Nugeon caliper come with the bracket and slides?
Yes, Nugeon 99-01255B includes the bracket, caliper slides, dust boots, bleeder screw and crush washers; pads, shims, wear sensors and bracket mounting bolts are not included.
What are the pistons made of in this floating caliper?
The caliper has two steel pistons with a 43 mm (1.693 in) piston diameter. It is a floating design with a cast iron housing.
What are the signs of a failing front right brake caliper?
Pulling to one side under braking, uneven pad wear or fluid near the piston boot can point to a failing caliper. Have a shop check brake problems promptly.
What thread sizes does the Nugeon 99-01255B use for the bleeder and inlet?
The bleeder screw thread is M7-1.0, and the banjo bolt inlet port is M10-1.0 x 27.32.
