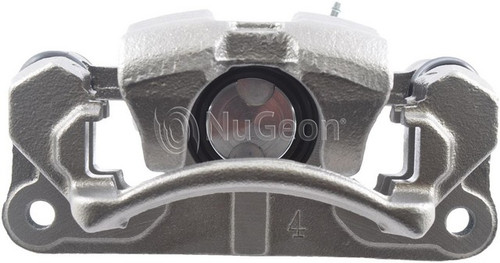

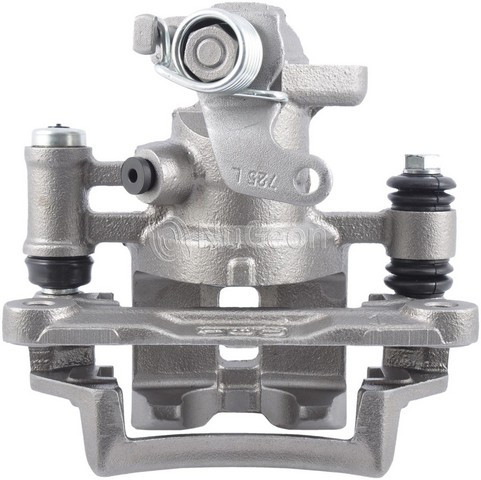

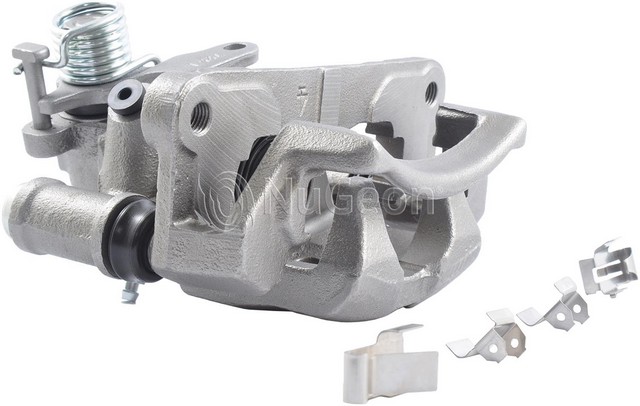

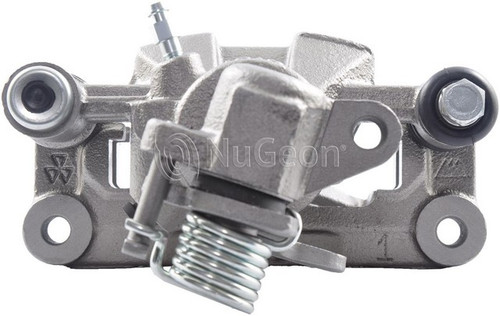

Nugeon 99-01525A rear left brake caliper for the 1985-1987 Toyota Corolla squeezes the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured and has a cast iron housing.
- Single steel piston
- Rust preventative finish on the housing
- Bleeder screw with an M7-1.0 thread
- Tube seat inlet fitting with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-01525A brake caliper
- Also called: disc brake caliper
- Fits: 1985-1987 Toyota Corolla
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
A worn caliper can show up as the car pulling to one side, a rear brake that drags or fluid around the caliper. A collapsed brake hose or worn pads can produce the same symptoms, so find the cause before you replace the caliper.
Fits
This is a direct-fit replacement caliper for the 1985-1987 Toyota Corolla. The rear axle takes one caliper on each side: this one is the rear left, the rear right is ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston outside diameter: 35 mm (1.38 in)
- Bleeder screw thread: M7-1.0 x 32
- Inlet port thread: M10-1.0
- Inlet fitting type: Tube seat
Build and materials
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative

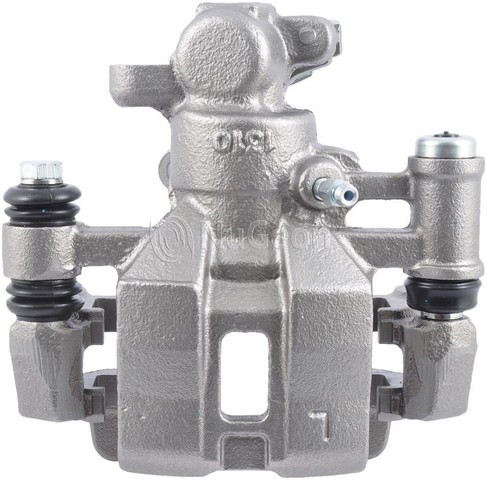

- Housing cast number: 1310
- Country of origin: Mexico
In the box
One caliper with its bracket, mounting hardware, caliper and pad hardware, slides, dust boots, bleeder screw, one banjo bolt and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bracket mounting bolts.
Frequently Asked Questions
Is this the right caliper replacement for the 1985-1987 Toyota Corolla?
Yes. Nugeon 99-01525A is the rear left brake caliper for the 1985-1987 Toyota Corolla. The rear right side is a separate part.
Does the Nugeon caliper come with the bracket and pads?
Yes, the bracket is included, but brake pads are not. Slides, dust boots and pad hardware come with it; the bracket mounting bolts are not included.
What size is the piston in this disc brake caliper?
Nugeon 99-01525A has one steel piston with a 35 mm (1.38 in) outside diameter.
How can I tell if this rear caliper is leaking or sticking?
Signs can include fluid around the caliper, the car pulling to one side or a rear brake that drags. Have a leaking or dragging brake checked promptly rather than driving on it.
What thread does the bleeder screw on this caliper use?
The included bleeder screw has an M7-1.0 x 32 thread. The inlet port is M10-1.0 with a tube seat fitting.
