Nugeon 99-01578A rear right brake caliper for the 1994-1999 Toyota Celica clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a disc brake caliper that uses brake fluid pressure to push its piston when you press the pedal.
- Floating caliper design with one 35 mm steel piston
- Cast iron body with a rust preventative finish
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 mm inlet port thread
Quick facts
- Part: Nugeon 99-01578A brake caliper
- Also called: disc brake caliper
- Fits: 1994-1999 Toyota Celica
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A worn caliper can show up as the car pulling to one side when braking, a rear wheel that drags, or brake fluid around the piston boot. The rear brake hose or the pads can be behind those signs too, so find out which before replacing the caliper.
Fits
It is a direct-fit replacement caliper for the 1994-1999 Toyota Celica. This listing is one caliper for the rear right, and the 1994-1999 Toyota Celica takes one on that side; the rear left is a separate part, and both rear calipers are normally replaced together.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Piston diameter: 35 mm (1.378 in)
- Piston quantity: 1
- Inlet fitting: Banjo bolt, M10-1.0 x 23.4 mm inlet port thread
- Bleeder screw thread: M7-1.0
Build and materials
- Type: Floating, remanufactured
- Casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative

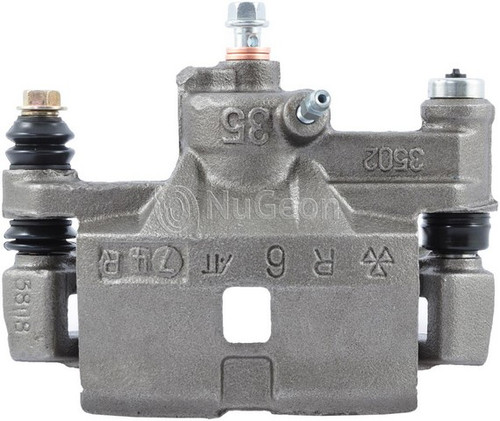

- Housing cast numbers: 3502, 35, R
- Country of origin: Mexico
In the box
One brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware and the bracket mounting bolts are not included, so plan on new bolts.
Frequently Asked Questions
Is this the rear caliper for the 1994-1999 Toyota Celica on the right or left side?
It is the rear right. Nugeon 99-01578A fits the 1994-1999 Toyota Celica on that side; the rear left caliper is a separate part.
What comes with this Nugeon caliper?
It includes the mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included.
What size is the piston in the Nugeon 99-01578A?
It has one steel piston, 35 mm (1.378 in) across, in a floating caliper.
Is a dragging rear wheel or a pull to one side a sign this caliper is worn?
It can be. A dragging wheel, a pull under braking or fluid near the piston boot can point to a worn caliper. Have the brakes checked promptly, since braking is affected.
Does this remanufactured caliper use a banjo bolt for the brake line?
Yes. The inlet fitting is a banjo bolt type with an M10-1.0 thread, and crush washers are included. The bleeder screw uses an M7-1.0 thread.
