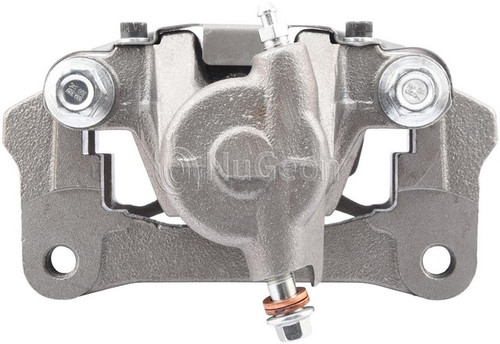

Nugeon 99-01598B rear right brake caliper for the 1993-1997 Toyota Land Cruiser and other vehicles presses the brake pads against the rotor to slow the wheel. This Nugeon caliper is remanufactured and mounts at the rear right wheel.
- Floating caliper with one steel piston, 48 mm in outside diameter
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet fitting for the brake line connection
- Inlet port thread M10-1.0 x 27.32 mm; bleeder screw thread M10-1.0
Quick facts
- Part: Nugeon 99-01598B brake caliper
- Also called: disc brake caliper
- Fits: 1993-1997 Toyota Land Cruiser and other vehicles
- Position: Rear right
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A disc brake caliper that sticks can show up as pulling to one side, brake drag or brake fluid around the dust boot. A worn rotor, worn pads or a damaged brake hose can be behind those signs too, so find the cause before buying.
Fits
It fits the 1993-1997 Toyota Land Cruiser and the 1996-1997 Lexus LX450, with one caliper at the rear right on both. Rear calipers are best changed as a pair, so budget for the rear left as well; this listing is one caliper for the rear right, and the left is its own part.
Specifications
Fit and size
- Position: Rear right
- Quantity: 1 for the rear right
- Piston outside diameter: 48 mm (1.89 in)
- Piston quantity: 1
Build and materials
- Type: Remanufactured, floating caliper
- Housing casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast numbers: F14B, R
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap, bracket mounting bolts and caliper and pad hardware are not included. Plan on new mounting bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is this brake caliper right for the 1993-1997 Toyota Land Cruiser?
Yes. Nugeon 99-01598B fits the 1993-1997 Toyota Land Cruiser as the rear right caliper, and that position takes one.
Does this Nugeon brake caliper come with brake pads?
No. Nugeon 99-01598B leaves out pads, anti-squeal shims, wear sensors, the bleeder screw cap and bracket mounting bolts. It does include its bracket, slides, dust boots, bleeder screw and crush washers.
What piston does this rear caliper have?
It has a single steel piston, 48 mm (1.89 in) in outside diameter, in a floating caliper design.
How can I tell if a rear brake caliper is sticking?
A burning smell after driving or one rear pad wearing much faster than its partner can mean a caliper is sticking. A shop can measure the wear and confirm it.
What brake line fitting does this caliper take?
It has a banjo bolt inlet fitting with an M10-1.0 x 27.32 mm inlet port thread, and the bleeder screw thread is M10-1.0.
