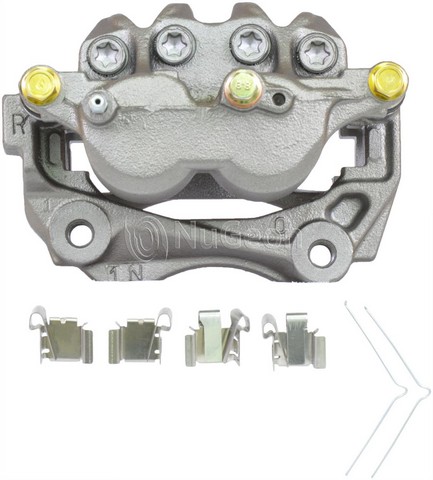

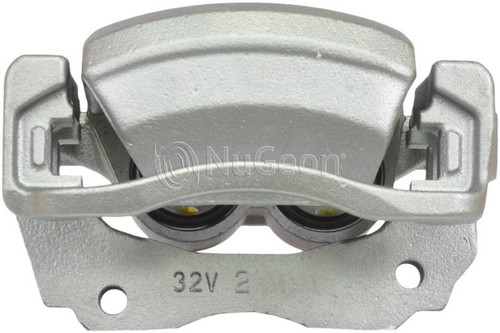

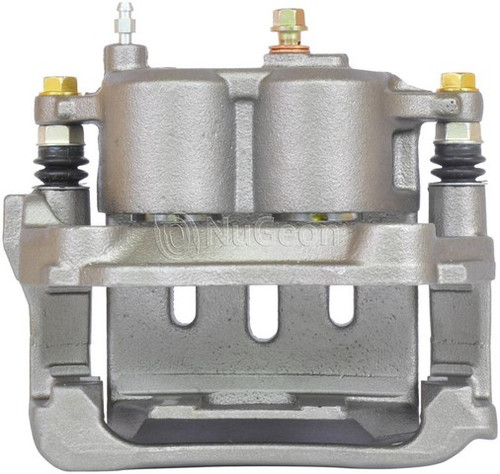

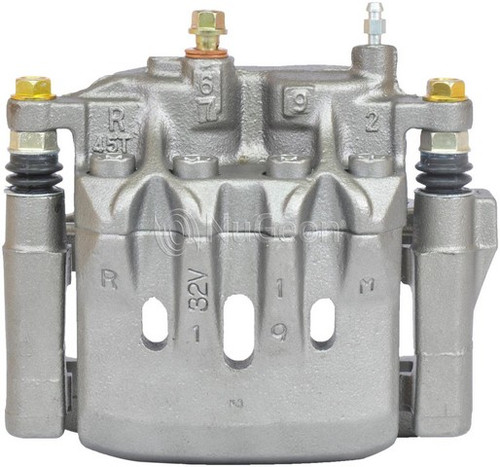

Front Right Brake Caliper for 2002-2010 Lexus SC430 & More - Nugeon 99-01606A
Nugeon 99-01606A front right brake caliper for the 2002-2010 Lexus SC430 and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces a worn or leaking one.
- Floating caliper design
- Two steel pistons, each 45 mm in diameter
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 port thread
Quick facts
- Part: Nugeon 99-01606A brake caliper
- Also called: disc brake caliper
- Fits: 2002-2010 Lexus SC430 and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
Pulling to one side under braking, fluid around a dust boot or one pad wearing faster than its partner can mean a caliper is worn, though a brake hose or the pads themselves may be behind it, so trace the cause before you buy.
Fits
The 2002-2010 Lexus SC430, the 1996-2005 Lexus GS300 and the 2001-2005 Lexus GS430 take this brake caliper, along with other vehicles, at one per front right position. The front left is a separate part, and the two sides are normally replaced together. If your car is not named here, look for it in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1
- Piston diameter: 45 mm (1.772 in)
- Piston quantity: 2
- Inlet fitting: banjo bolt, M10-1.0 thread, port thread M10-1.0 x 23.4 mm
- Bleeder thread: M7-1.0
Build and materials
- Caliper type: floating
- Housing material: cast iron
- Piston material: steel
- Finish: rust preventative
- Housing cast numbers: 32V, 45T, R
- Condition: remanufactured
- Country of origin: Mexico
In the box
One front right brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washer. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap, pad hardware and bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is this a 1996-2005 Lexus GS300 brake caliper for the front right wheel?
Yes. Nugeon 99-01606A is listed for the 1996-2005 Lexus GS300 as the front right caliper. This side takes one, and the front left is a separate part ordered separately.
Is this the right 2001-2005 Lexus GS430 brake caliper for the front right wheel?
Yes. This front right caliper is listed for the 2001-2005 Lexus GS430. This side takes one, and the left side is a separate part ordered separately.
Does the Nugeon caliper come with its bracket and bleeder screw?
Yes. Nugeon 99-01606A includes the mounting bracket, caliper slides, dust boots, bleeder screw and crush washer. Pads, shims, wear sensors and bracket bolts are not included.
Is this disc brake caliper a floating type?
Yes. This front right caliper is a floating type with two steel pistons, each 45 mm (1.772 in) in diameter, in a cast iron housing.
Which inlet and bleeder thread sizes does this caliper have?
The banjo bolt inlet is M10-1.0, with an M10-1.0 x 23.4 port thread, and the bleeder screw is M7-1.0. Nugeon 99-01606A includes the bleeder screw and a crush washer.
