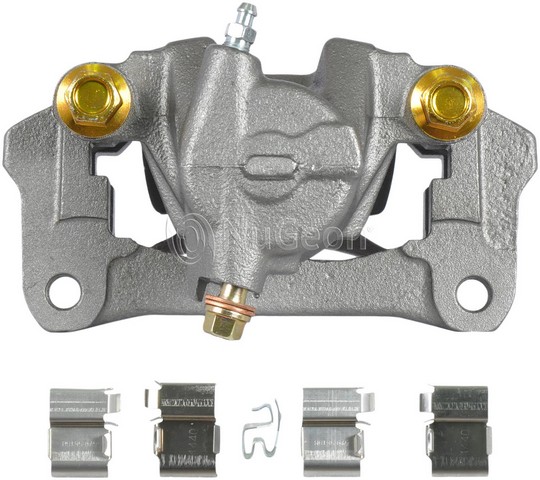

Nugeon 99-01662A rear right brake caliper for the 2003-2009 Toyota 4Runner and other vehicles clamps the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured.
- Floating design with one steel piston
- Cast iron housing with a rust preventative finish
- Mounting bracket, caliper slides, dust boots and pad hardware included
- Banjo inlet fitting with crush washers included
- Bleeder screw included
Quick facts
- Part: Nugeon 99-01662A brake caliper
- Also called: disc brake caliper
- Fits: 2003-2009 Toyota 4Runner and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A sticking caliper can show up as the vehicle pulling to one side, uneven pad wear or brake fluid around the wheel. These signs alone do not prove the caliper is at fault, since a collapsed brake hose can cause a similar drag. Calipers are normally replaced as a pair across an axle, but this listing is one caliper for the rear right. The 2007-2014 Toyota FJ Cruiser takes one in this position, and the rear left is ordered separately.
Fits
This caliper fits the 2003-2009 Toyota 4Runner and the 2007-2014 Toyota FJ Cruiser.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Piston diameter: 45.29 mm (1.78 in)
- Piston quantity: 1
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Inlet fitting: Banjo
- Housing cast numbers: F13, R
- Country of origin: Mexico
In the box
One brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, wear sensors, anti-squeal shims, the bleeder screw cap and the mounting bolts are not included, so plan on new mounting bolts.
Frequently Asked Questions
Is this a 2003-2009 Toyota 4Runner caliper for the rear right wheel?
Yes. Nugeon 99-01662A is a rear right caliper that fits the 2003-2009 Toyota 4Runner and the 2007-2014 Toyota FJ Cruiser.
Does this Nugeon caliper come with brake pads?
No. Nugeon 99-01662A includes the bracket, slides, dust boots, hardware, bleeder screw and crush washers, but not pads, wear sensors, shims or mounting bolts.
Is this disc brake caliper floating or fixed?
This rear right caliper is a floating type with one steel piston, 45.29 mm (1.78 in) across.
What could a pull to one side or a brake fluid leak at the rear right wheel mean?
They can point to a sticking piston, a leaking seal or a damaged slide, among other causes. Have a shop inspect the brakes promptly.
What thread sizes does the Nugeon 99-01662A use for the banjo inlet and bleeder?
The inlet port thread is M10-1.0 x 23.4 mm, and the bleeder screw thread is M10-1.0.
