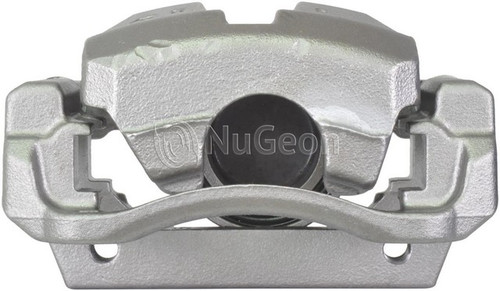

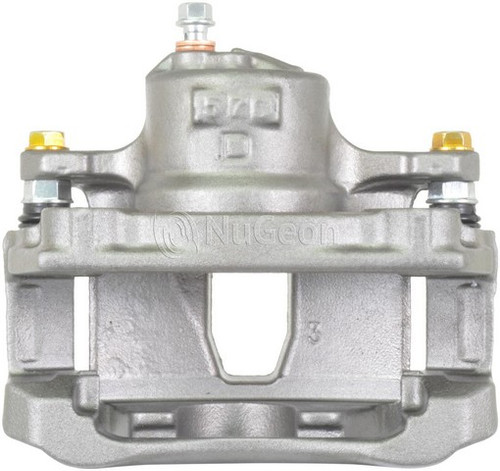

Front Right Brake Caliper for 2009-2015 Lexus IS250 & More - Nugeon 99-01680A
Nugeon 99-01680A front right brake caliper for the 2009-2015 Lexus IS250 and other vehicles squeezes the brake pads against the rotor to slow the wheel. This is a remanufactured part with a floating design and a single piston.
- Nugeon caliper housing is cast iron with a rust-preventative finish
- Steel piston, 60 mm in diameter
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 port thread
- Bleeder screw with an M7-1.0 thread
Quick facts
- Part: Nugeon 99-01680A brake caliper
- Also called: disc brake caliper
- Fits: 2009-2015 Lexus IS250 and other vehicles
- Position: Front right
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A sticking or leaking disc brake caliper can show up as the car pulling to one side, a front pad that wears faster than its twin, or fluid around the dust boot. A collapsed brake hose can also make a car pull, so these signs alone do not prove the caliper is the problem.
Fits
It fits the 2009-2015 Lexus IS250 and the 2006 Lexus GS300. This listing is one caliper for the front right; the front axle takes one on each side, and the front left is a separate part that is normally done at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per side: 1
- Piston diameter: 60 mm (2.362 in)
- Pistons: 1
- Inlet fitting: banjo bolt, M10-1.0 x 23.4 port thread
- Bleeder screw thread: M7-1.0
Build and materials
- Condition: Remanufactured
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast number: 60-32
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its bracket, slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap, caliper and pad hardware and bracket mounting bolts are not included, so plan on new bolts rather than reusing the old ones.
Frequently Asked Questions
Is this a Lexus IS250 brake caliper for the 2009-2015 model years?
Yes. Nugeon 99-01680A fits the front right of the 2009-2015 Lexus IS250.
Can I use this as a Lexus GS300 brake caliper on a 2006 car?
Yes. Nugeon 99-01680A also fits the front right of the 2006 Lexus GS300.
Does the Nugeon brake caliper come with brake pads?
No. This listing is one remanufactured caliper with its bracket, slides, dust boots, bleeder screw and crush washers. Pads, shims and bracket mounting bolts are not included.
What size is the piston and brake line fitting on this caliper?
The single steel piston is 60 mm (2.362 in) across. The inlet is a banjo bolt fitting with an M10-1.0 x 23.4 port thread.
Does this caliper come with a bleeder screw, and what thread does it use?
Yes. The bleeder screw is included and has an M7-1.0 thread. The bleeder screw cap is not included.
