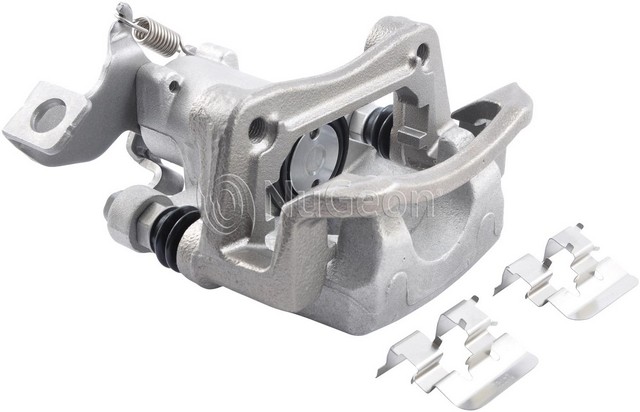

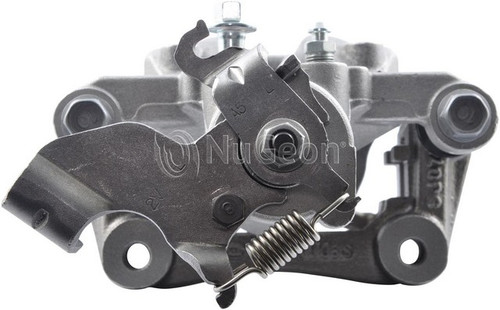

Nugeon 99-01854B rear left brake caliper for the 2014-2019 Kia Soul clamps the rear left brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating type.
- Aluminum caliper casting with a rust-preventative finish
- Single steel piston, 33.91 mm in outside diameter
- Banjo inlet fitting with an M10-1.0 x 23.4 port thread
- Housing cast number 2V 34 and bracket cast number B2 HM
Quick facts
- Part: Nugeon 99-01854B brake caliper
- Also called: disc brake caliper
- Fits: 2014-2019 Kia Soul
- Position: Rear left
- Material: Aluminum (caliper casting), steel (piston)
- Condition: Remanufactured
A caliper that sticks or leaks can show up as the car pulling to one side, uneven pad wear or brake fluid around the dust boot. The same signs can come from other brake parts, so at a brake service look over the rear left caliper and its pads first. If the caliper is the cause, this one replaces it.
Fits
As a 2014-2019 Kia Soul caliper, it is a direct-fit replacement for the rear left wheel. The 2014-2019 Kia Soul takes one on this side; the rear right is its own part, ordered separately, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 on this side
- Piston quantity: 1
- Piston diameter: 33.91 mm (1.34 in), also listed as 34 mm (1.339 in)
- Inlet port thread: M10-1.0 x 23.4
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating, banjo inlet fitting
- Casting material: Aluminum
- Piston material: Steel
- Finish: Rust preventative
- Cast numbers: housing 2V 34, bracket B2 HM
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rear left caliper with its bracket, caliper slides, dust boots, pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1594
Frequently Asked Questions
Is this the rear brake caliper for a 2016 Kia Soul in the 2014-2019 range?
Yes. Nugeon 99-01854B is the rear left caliper for the 2014-2019 Kia Soul, which covers the 2016 model. The rear right side is a separate part.
Does the Nugeon caliper come with the bracket and slides?
Yes. Nugeon 99-01854B includes the bracket, caliper slides, dust boots, pad hardware, bleeder screw and crush washers. Brake pads and the bracket mounting bolts are not included.
Is this disc brake caliper floating or fixed?
This rear left caliper is a floating type with one steel piston, 33.91 mm (1.34 in) in outside diameter, in an aluminum casting.
What size are the bleeder screw and the inlet thread?
The bleeder screw is M10-1.0 and is included. The banjo inlet port thread is M10-1.0 x 23.4.
My car pulls to one side and a rear pad is wearing unevenly; can the caliper be the cause?
Yes, a sticking rear caliper can cause both, though other brake parts can too. Have the brakes checked promptly by a shop, as this is a safety item.
