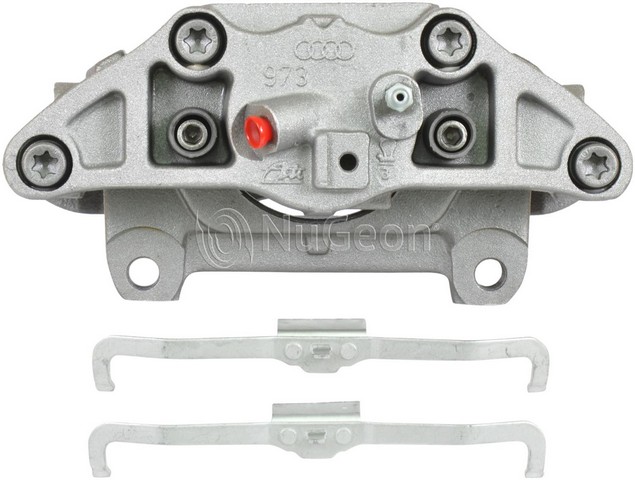

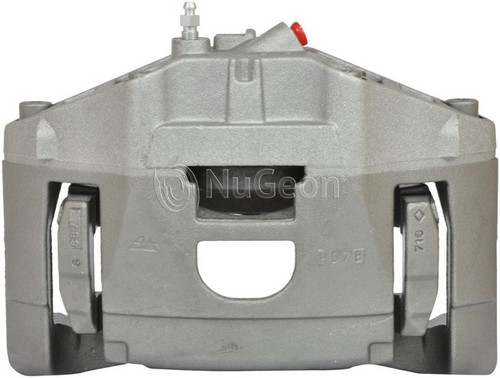

Nugeon 99-02146B front left brake caliper for the 2006-2011 Audi A6 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating type.
- Single aluminum piston, 60 mm (2.362 in) in diameter
- Aluminum caliper casting with a rust preventative finish
- M10-1.0 bleeder screw thread and M10-1.0 inlet port thread
Quick facts
- Part: Nugeon 99-02146B brake caliper
- Also called: disc brake caliper
- Fits: 2006-2011 Audi A6 and other vehicles
- Position: Front left
- Material: Aluminum
- Condition: Remanufactured
A sticking caliper can show up as the car pulling to one side under braking, brake fluid weeping around the piston boot, or one pad wearing faster than the others. A collapsed brake hose or worn pads can pull a car to one side too, so find the cause before replacing the caliper. During a brake service, look for fluid around the caliper while the engine is off and the brakes are cool.
Fits
This front left caliper is listed for a range of Audi models, led by the 2006-2011 Audi A6, the 2005-2011 Audi A6 Quattro and the 2005-2008 Audi A4. If your Audi is not one of these, look it up in the "Vehicles it fits" section. This listing is one caliper for the front left, and each of these cars takes one on that side. The front right is a separate part, and both sides of the axle are normally replaced together.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Piston diameter: 60 mm (2.362 in)
- Piston quantity: 1
- Bleeder screw and inlet port thread: M10-1.0
- Housing cast numbers: 973, 6013 / 6013
- Bracket cast number: 716
Build and materials
- Caliper type: floating
- Caliper casting material: aluminum
- Piston material: aluminum
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw, mounting hardware and a crush washer. Brake pads, anti-squeal shims, the bleeder screw cap, bracket mounting bolts, caliper and pad hardware and wear sensors are not included, so plan on new bolts rather than reusing the old ones.
Frequently Asked Questions
Is Nugeon 99-02146B a 2005-2008 Audi A4 brake caliper for the front left?
Yes. Nugeon 99-02146B is a front left brake caliper listed for the 2005-2008 Audi A4. Other Audi models are in the "Vehicles it fits" section.
Will this work as a 2006-2011 Audi A6 brake caliper on the front left?
Yes. Nugeon 99-02146B is a front left brake caliper listed for the 2006-2011 Audi A6. The front right side is a separate part.
Does this disc brake caliper come with brake pads or bracket bolts?
No. This caliper comes with its mounting bracket, caliper slides, dust boots and bleeder screw, but brake pads and bracket mounting bolts are not included.
What size piston does the Nugeon caliper have?
The Nugeon 99-02146B has one aluminum piston, 60 mm (2.362 in) across, in a floating caliper.
What can a sticking front left caliper look like?
Pulling to one side under braking, fluid weeping near the piston boot or one pad wearing faster than the other can point to a sticking caliper. A shop can test the hydraulics.
