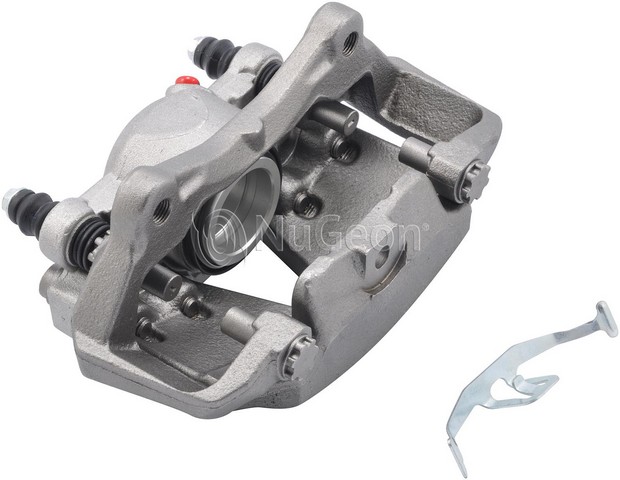

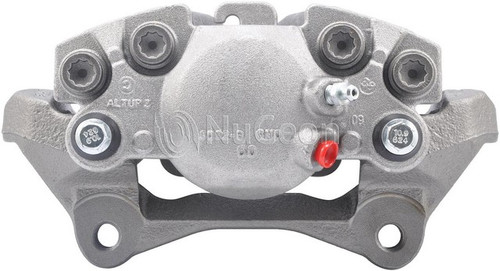

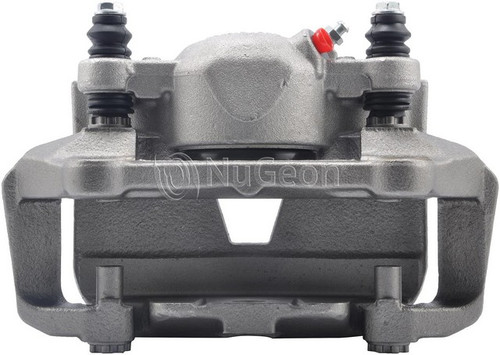

Front Left Brake Caliper for 2009-2017 Audi Q5 - Nugeon 99-02180B
Nugeon 99-02180B front left brake caliper for the 2009-2017 Audi Q5 squeezes the brake pads against the rotor to slow the wheel. It is a remanufactured Nugeon brake caliper, also called a disc brake caliper.
- Floating caliper design with a single piston
- Aluminum piston and aluminum casting for the caliper body
- Rust-preventative finish on the caliper
- Line inlet fitting, with a bleeder screw included
Quick facts
- Part: Nugeon 99-02180B brake caliper
- Also called: disc brake caliper
- Fits: 2009-2017 Audi Q5
- Position: Front left
- Material: Aluminum
- Condition: Remanufactured
A worn or sticking caliper can show up as the car pulling to one side under braking, uneven pad wear or a brake fluid leak at the caliper. These signs alone do not prove the caliper is at fault, since a collapsed brake hose is another common cause.
Fits
This 2009-2017 Audi Q5 brake caliper is a direct-fit replacement for the front left position. This listing is one caliper for the front left; the front right is a separate part, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Piston quantity: 1
- Piston outside diameter: 59.89 mm (2.36 in)
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Casting material: aluminum
- Piston material: aluminum
- Finish: rust preventative
- Housing cast number: 8705/A
- Country of origin: Mexico
In the box
This listing holds one caliper, and the front left takes one. It comes with its bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, the bracket mounting bolts and the mounting bolt are not included, so plan on new bolts since the old ones may not be reusable.
Frequently Asked Questions
Will this Nugeon 99-02180B front left caliper fit the 2009-2017 Audi Q5?
Yes. Nugeon 99-02180B is the front left caliper for the 2009-2017 Audi Q5. The front right side takes its own separate caliper.
Does this Nugeon caliper come with brake pads?
No. Nugeon 99-02180B comes without pads, anti-squeal shims or wear sensors. It does include the bracket, caliper slides, dust boots and hardware.
Is the piston in this front left caliper aluminum?
Yes. The piston is aluminum, 59.89 mm (2.36 in) across, in a single-piston floating caliper.
How can I tell if a front brake caliper is going bad?
Pulling to one side when braking, uneven pad wear or a brake fluid leak at the caliper can mean it is worn or sticking. Have braking problems checked promptly by a shop.
Are the bracket mounting bolts included with this front left caliper?
No. The bracket mounting bolts and the mounting bolt are not included, so plan on new bolts. The bracket itself comes with the caliper.
