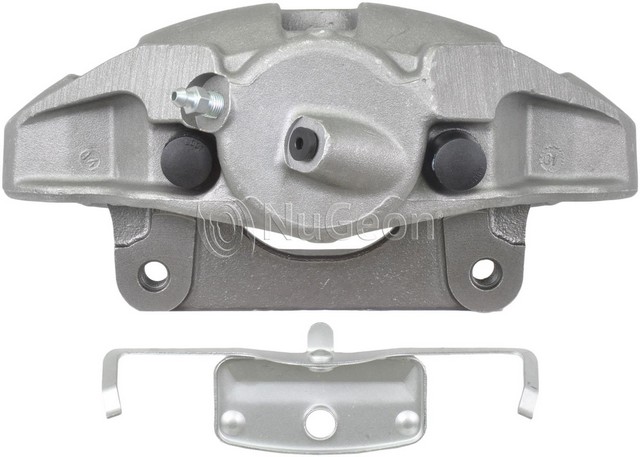

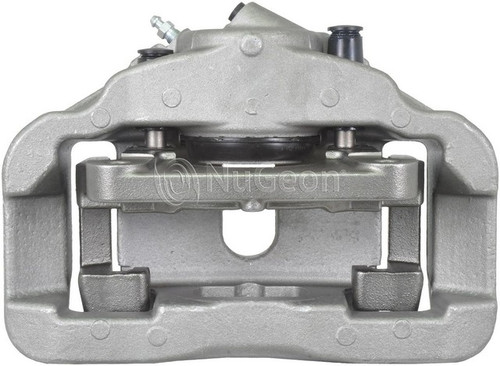

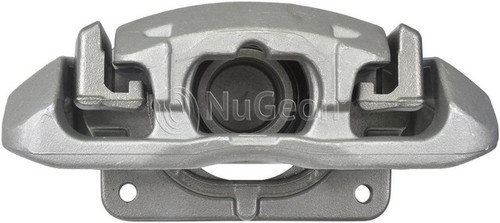

Nugeon 99-02351A front right brake caliper for the 2008-2010 BMW 535i and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is also called a disc brake caliper.
- Floating caliper design with a single piston
- Aluminum piston, 60 mm (2.362 in) in diameter
- Aluminum caliper casting
- Rust preventative finish on the caliper
Quick facts
- Part: Nugeon 99-02351A brake caliper
- Also called: disc brake caliper
- Fits: 2008-2010 BMW 535i and other vehicles
- Position: Front right
- Material: Aluminum
- Condition: Remanufactured
A caliper that sticks can show up as the car pulling to one side or a wheel that drags. Worn pads, a worn rotor or a damaged brake hose can be behind those signs as well, so find the cause before buying. Each side of the front axle takes one caliper: this listing is the front right, the front left is its own part, and the two are normally replaced together.
Fits
It is listed for a wide range of BMW models, including the 2006-2010 BMW 550i and the 2006-2010 BMW 650i alongside the 2008-2010 BMW 535i. If your BMW is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Piston quantity: 1
- Piston diameter: 60 mm (2.362 in)
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: Floating
- Casting material: Aluminum
- Piston material: Aluminum
- Finish: Rust preventative
- Condition: Remanufactured
- Cast numbers: housing 60/30/348, 78; bracket 556
- Country of origin: Mexico
In the box
One front right brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware and the bracket mounting bolts are not included, so plan on new bracket mounting bolts rather than reusing the old ones.
Frequently Asked Questions
Is this the right 2008-2010 BMW 535i brake caliper for the front right wheel?
Yes. Nugeon 99-02351A is a front right brake caliper that fits the 2008-2010 BMW 535i. The front left side takes its own separate caliper.
Does the Nugeon caliper include the mounting bracket?
Yes. Nugeon 99-02351A includes the mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, shims and bracket mounting bolts are not included.
What piston size does this floating brake caliper have?
This front right caliper has a single aluminum piston 60 mm (2.362 in) in diameter. The bleeder screw thread is M10-1.0.
How can I tell a front brake caliper is worn or leaking?
Uneven pad wear or brake fluid around the piston boot can be signs. If you notice either, have the brakes inspected promptly rather than driving on them.
What cast numbers does this remanufactured brake caliper carry?
The housing cast numbers are 60/30/348, 78, and the bracket cast number is 556.
