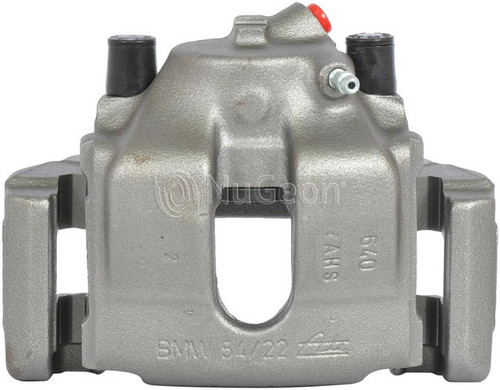

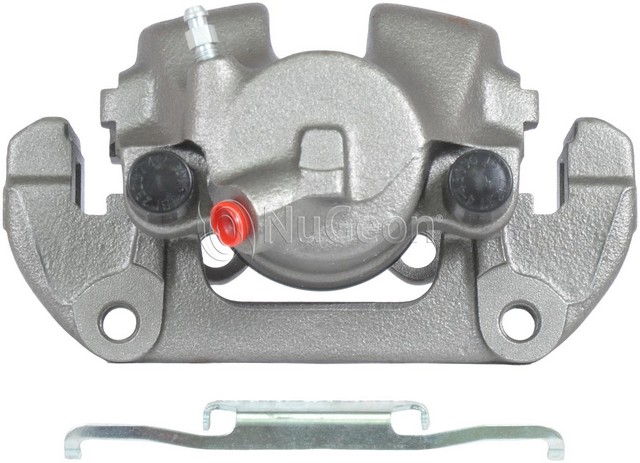

Nugeon 99-02394A front right brake caliper for the 2003-2007 BMW Z4 and other vehicles clamps the brake pads onto the rotor to slow the wheel. This Nugeon brake caliper is remanufactured and made for the front right wheel.
- Floating disc brake caliper with a single steel piston
- Cast iron housing with a rust preventative finish
- Mounting bracket and caliper slides included
- Bleeder screw and bleeder screw cap included
Quick facts
- Part: Nugeon 99-02394A brake caliper
- Also called: disc brake caliper
- Fits: 2003-2007 BMW Z4 and other vehicles
- Position: Front right
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A caliper that sticks or leaks can show up as the vehicle pulling to one side, a burning smell after driving or fluid at the wheel. A swollen brake hose or worn pads can be behind those signs too, so find the cause before replacing the caliper.
Fits
It suits a wide range of BMW models, including the 2003-2007 BMW Z4, the 2001-2006 BMW 325Ci and the 2001-2005 BMW 320i. Each side of the front axle has its own caliper; this listing is the front right, so order the front left on its own and replace the two together. If your BMW is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston diameter: 54 mm (2.13 in)
- Piston quantity: 1
- Inlet fitting: line, M10 - 1.0 thread
- Bleeder screw thread: M8-1.25
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with dust boots, caliper and pad hardware and crush washers. Brake pads, anti-squeal shims, wear sensors, the bracket mounting bolts and the mounting bolt are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D558
Frequently Asked Questions
Does this BMW 320i brake caliper fit the 2001-2005 BMW 320i front right?
Yes, Nugeon 99-02394A is a front right brake caliper listed for the 2001-2005 BMW 320i. The front left is a separate part.
Are Z4 brake calipers sold one per side for the 2003-2007 BMW Z4?
Yes, Nugeon 99-02394A is the front right caliper only; the front left is its own part, so order it separately and replace the two together.
What comes with the Nugeon caliper besides the caliper body?
It comes with the bracket, slides, dust boots, caliper and pad hardware, bleeder screw with cap and crush washers. Pads, anti-squeal shims, wear sensors and mounting bolts are not included.
What piston size and brake line thread does this front right caliper have?
The single steel piston is 54 mm (2.13 in) across, and the line inlet thread is M10 - 1.0. The bleeder screw thread is M8-1.25.
Is the Nugeon 99-02394A a floating or fixed caliper?
It is a floating caliper with one steel piston. The housing is cast iron with a rust preventative finish.
