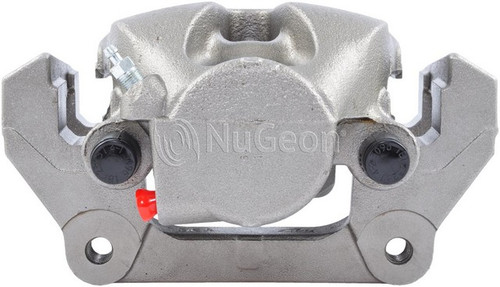

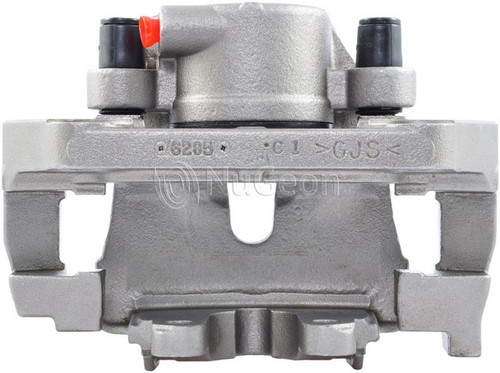

Nugeon 99-02395A front right brake caliper for the 2007-2018 BMW X5 and other vehicles squeezes the brake pads against the rotor to slow the wheel. This is a remanufactured unit, sold individually for the right side of the front axle.
A car pulling to one side under braking, a burning smell after driving or fluid around the piston boot can mean a sticking or leaking caliper, though a damaged brake hose or unevenly worn pads may be behind them, so find the cause first. If the caliper is at fault, this Nugeon caliper replaces it.
This caliper fits the 2007-2018 BMW X5 and the 2008-2010 BMW X6 on the front right, and each takes one for this side. The front left caliper is a separate part ordered on its own, and the two sides are normally replaced together.
Fit and size
Build and materials
One front right brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washer. Brake pads, anti-squeal shims, bleeder screw cap, bracket mounting bolts, caliper and pad hardware and wear sensors are not included, so plan on new bolts rather than reusing the old ones.
Is this one of the calipers for the 2007-2018 BMW X5, and which side does it go on?
Yes. Nugeon 99-02395A fits the 2007-2018 BMW X5 and the 2008-2010 BMW X6 on the front right side. The front left needs its own caliper.
Does this front right disc brake caliper come with brake pads and bracket bolts?
No. Pads, bracket mounting bolts, anti-squeal shims and wear sensors are not included. The mounting bracket, caliper slides, dust boots, bleeder screw and crush washer are.
Is this Nugeon brake caliper a floating or fixed design, and what size is the piston?
Nugeon 99-02395A is a floating caliper with one steel piston. The piston measures 60 mm (2.362 in) in diameter.
How can I tell if this front right caliper is sticking?
A car pulling toward one side when braking, a burning smell after a drive or fluid at the piston boot can point to a sticking caliper. A shop can test the hydraulic side safely.
What thread size does the bleeder screw on this caliper use?
The bleeder screw is M10-1.0 and is included, and the inlet port thread is also M10-1.0. The bleeder screw cap is not included.
