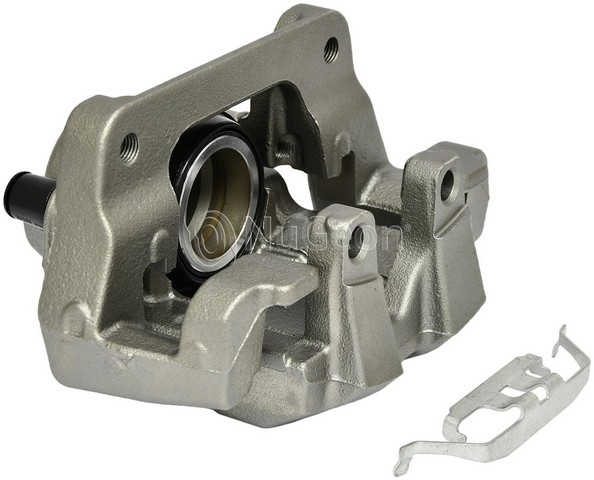

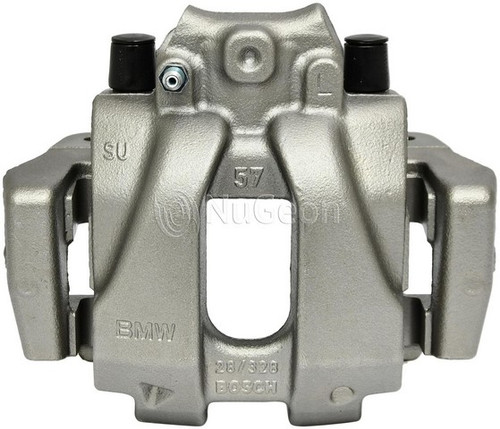

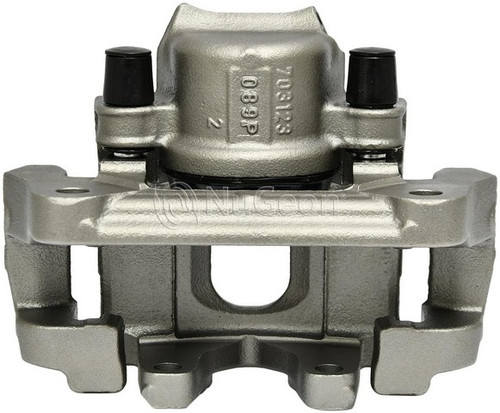

Nugeon 99-02436B front left brake caliper for the 2015-2018 BMW X4 and other vehicles clamps the brake pads against the rotor to slow the wheel. The unit is a remanufactured disc brake caliper, sold individually.
- Floating caliper with one steel piston, 57 mm (2.24 in) in diameter
- Cast iron housing with a rust preventative finish
- Line-type inlet fitting with M10 - 1.0 thread
- Bleeder screw with M10-1.0 thread and a bleeder screw cap
Quick facts
- Part: Nugeon 99-02436B brake caliper
- Also called: disc brake caliper
- Fits: 2015-2018 BMW X4 and other vehicles
- Position: Front left
- Material: cast iron housing, steel piston
- Condition: Remanufactured
A sticking or leaking caliper can show up as pulling to one side, a burning smell or one pad wearing faster than the other. Those signs alone do not prove the caliper is at fault, since a worn brake hose is another common cause. Each front wheel takes one caliper; this listing is the front left, the front right is ordered separately, and the two are normally replaced together.
Fits
This brake caliper fits the 2015-2018 BMW X4 and the 2011-2017 BMW X3.
Specifications
Fit and size
- Position: Front left
- Quantity per application: 1
- Piston diameter: 57 mm (2.24 in)
- Piston quantity: 1
- Inlet thread size: M10 - 1.0, line-type fitting
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and cap, crush washers, and caliper and pad hardware. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included, so plan on new bolts, as the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1561
Frequently Asked Questions
Is this a 2011-2017 BMW X3 brake caliper?
Yes, Nugeon 99-02436B is a front left caliper that fits the 2011-2017 BMW X3 and also the 2015-2018 BMW X4; the front right side is a separate part.
Are brake pads included with this Nugeon caliper?
No, brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included. The caliper comes with its bracket, slides, dust boots, bleeder screw and cap, crush washers and hardware.
Is this Nugeon brake caliper remanufactured?
Yes, Nugeon 99-02436B is a remanufactured floating caliper with a cast iron housing and a 57 mm steel piston. Its country of origin is Mexico.
What thread does the bleeder screw on this front left caliper use?
The bleeder screw is M10-1.0 and comes with a bleeder screw cap. The line-type inlet fitting uses an M10 - 1.0 thread.
How can I tell if a caliper is sticking?
Pulling to one side, a burning smell after driving or one pad wearing faster than the other can come from a sticking caliper. A shop can test it properly.
