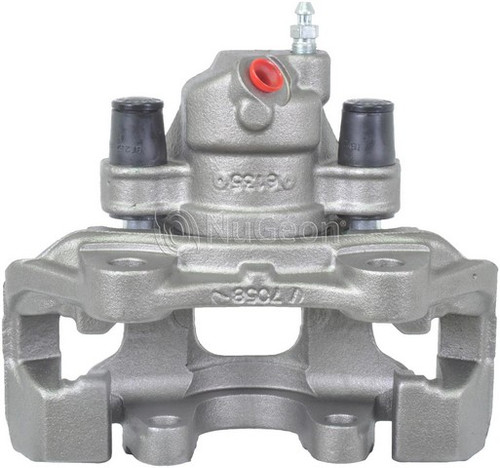

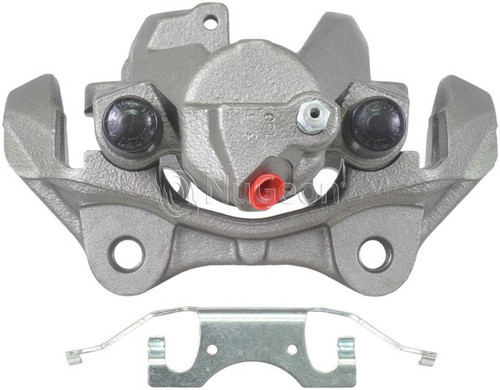

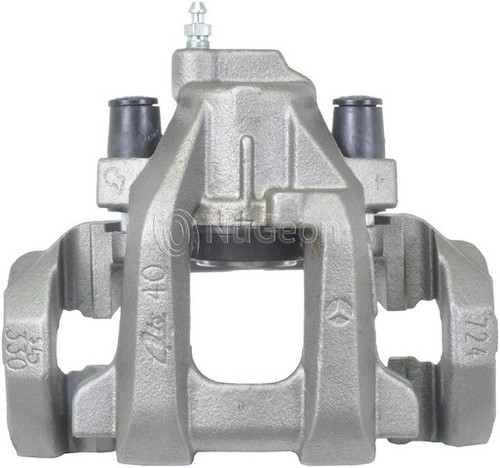

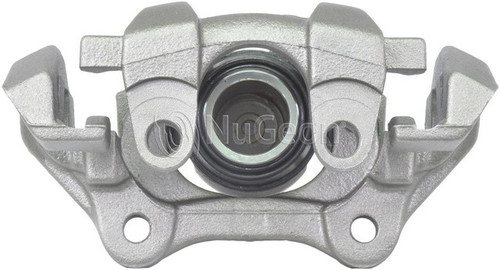

Nugeon 99-02801B rear right brake caliper for the 2006-2013 Mercedes-Benz R350 and other vehicles clamps the pads against the rotor to slow the rear right wheel. This remanufactured Nugeon brake caliper uses brake fluid pressure to push its piston against the pad.
- Floating caliper design with one 40 mm steel piston
- Cast iron housing
- Rust-preventative finish on the caliper
Quick facts
- Part: Nugeon 99-02801B brake caliper
- Also called: disc brake caliper
- Fits: 2006-2013 Mercedes-Benz R350 and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A pull to one side, uneven pad wear or fluid around the dust boot can mean the caliper is worn, though a swollen brake hose or a damaged rotor can be behind the same symptoms. Sort out which one it is before you buy.
Fits
The 2006-2013 Mercedes-Benz R350, the 2006-2011 Mercedes-Benz ML350 and the 2010-2011 Mercedes-Benz ML450 take this caliper, and so do other vehicles. If your Mercedes-Benz is not named here, look it up in the "Vehicles it fits" section. This listing is one rear right caliper; the rear left is a separate part, and that axle is normally done as a pair.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1
- Piston diameter: 40 mm (1.575 in)
- Piston quantity: 1
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
- Banjo bolt quantity: 1
Build and materials
- Caliper type: floating
- Casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, bracket mounting bolts and caliper and pad hardware are not included, so plan on new bolts. This listing holds one caliper, and the rear right takes one.
Frequently Asked Questions
Is this 2006-2011 Mercedes-Benz ML350 brake caliper the right one for the rear right wheel?
Yes. Nugeon 99-02801B is listed as the rear right caliper for the 2006-2011 Mercedes-Benz ML350, and that side of the car takes one.
Does the Nugeon caliper come with brake pads?
No. Nugeon 99-02801B comes without pads, shims, wear sensors, bracket mounting bolts and pad hardware. The bracket, slides, dust boots, bleeder screw and crush washers are included.
How many pistons does this disc brake caliper have?
This caliper has one steel piston, 40 mm (1.575 in) across, in a floating caliper body.
What are the signs of a sticking rear right caliper?
Uneven pad wear, fluid around the dust boot or a pull to one side can mean the caliper is worn. A shop can test it, and brakes showing these signs need prompt attention.
What size is the bleeder screw on this rear caliper?
The bleeder screw is M10-1.0 and is included with the caliper. The bleeder screw cap is not included.
