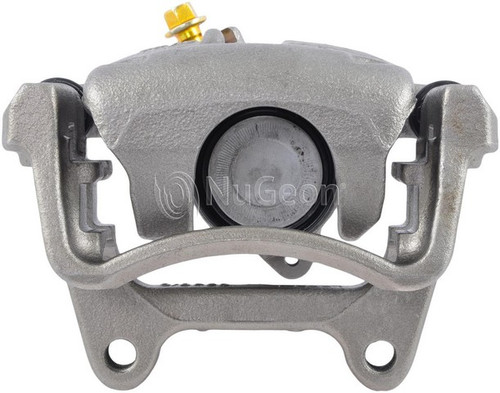

Nugeon 99-03361B rear right brake caliper for the 2009-2010 Volkswagen Tiguan clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper goes on the rear right wheel in place of a worn or leaking one.
- Floating caliper design with a single steel piston
- Cast iron housing with a rust preventative finish
- Banjo inlet fitting with an M10-1.5 inlet thread
Quick facts
- Part: Nugeon 99-03361B brake caliper
- Also called: disc brake caliper
- Fits: 2009-2010 Volkswagen Tiguan
- Position: Rear right
- Material: Cast iron (housing), steel (piston)
- Condition: Remanufactured
A car that pulls to one side under braking, a leaking piston boot or a pad worn much thinner than its partner can point to a sticking caliper. A softened brake hose can also make a car pull, so these signs alone do not prove the caliper is at fault.
Fits
This listing is one rear right caliper for the 2009-2010 Volkswagen Tiguan, and that side takes one. The rear left is a separate part, ordered separately, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: rear right
- Quantity per application: 1
- Piston outside diameter: 40.97 mm (1.61 in)
- Piston quantity: 1
- Inlet port thread: M10-1.5 x 23.14 mm
- Bleeder thread size: M10-1.0
Build and materials
- Caliper type: floating
- Casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Inlet fitting: banjo
- Housing cast number: 5079/B
- Condition: remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, pad hardware, dust boots, bleeder screw and crush washer. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap and bracket mounting bolts are not included; plan on new bracket bolts rather than reusing the old ones.
Frequently Asked Questions
Is the Nugeon 99-03361B rear right caliper right for the 2009-2010 Volkswagen Tiguan?
Yes. Nugeon 99-03361B fits the 2009-2010 Volkswagen Tiguan and goes on the rear right; the rear left takes a separate caliper.
Does the Nugeon caliper come with its bracket?
Yes. The bracket, caliper slides, pad hardware, dust boots, bleeder screw and crush washer are included. Pads, shims, wear sensors and bracket mounting bolts are not.
What size is the piston in the Nugeon 99-03361B?
The Nugeon 99-03361B has one steel piston with a 40.97 mm (1.61 in) outside diameter, in a floating caliper.
What signs can mean a rear brake caliper is sticking or leaking?
Look for the car pulling to one side when braking, a wet or torn piston boot, or one pad worn much thinner than the other. A shop can test a caliper that may be seizing.
Is this disc brake caliper a floating type, and what bleeder thread does it have?
Yes. This rear right caliper is a floating type, and its bleeder screw is M10-1.0. The screw is included, but the bleeder screw cap is not.
