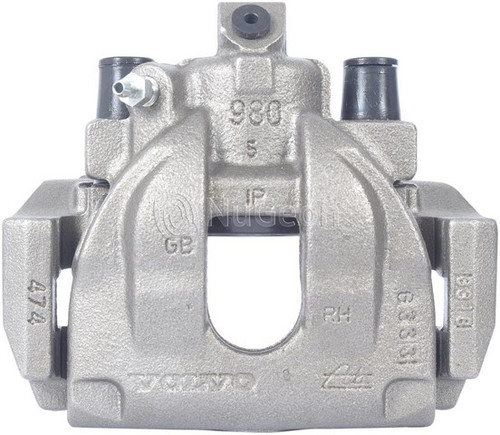

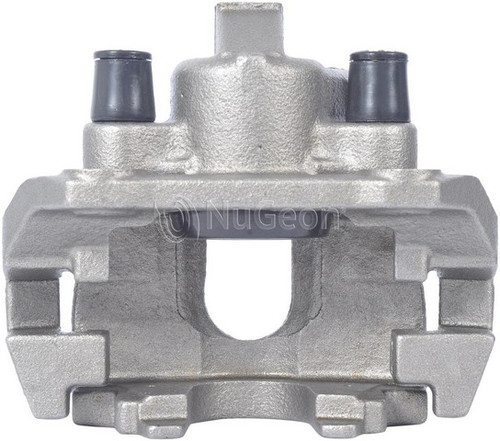

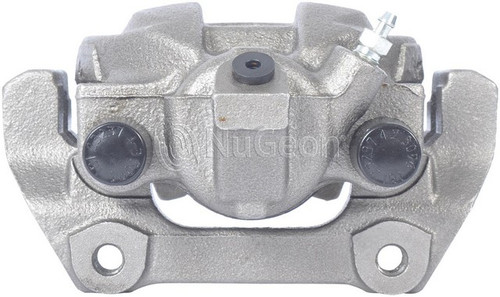

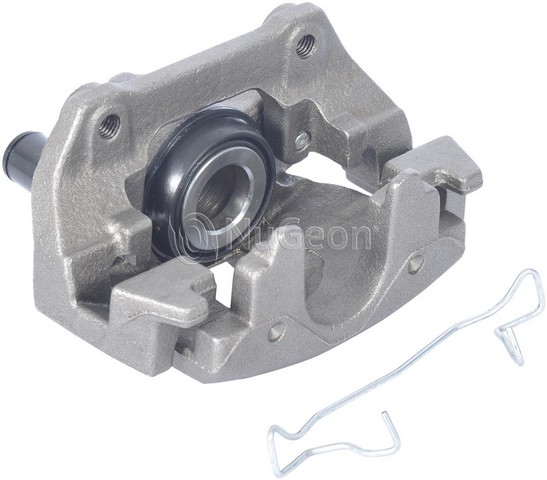

Nugeon 99-09325B rear right brake caliper for the 2001-2009 Volvo S60 and other vehicles squeezes the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating type.
- Single steel piston, 42 mm (1.65 in) in diameter
- Cast iron housing with a rust-preventative finish
- Supplied with caliper slides, dust boots and a bleeder screw with cap
Quick facts
- Part: Nugeon 99-09325B brake caliper
- Also called: disc brake caliper
- Fits: 2001-2009 Volvo S60 and other vehicles
- Position: Rear right
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side under braking, one rear pad wearing faster than the other, or fluid around the piston boot. Worn pads or a seized slide can look the same, so check the pads and the boot area during a brake service and find the cause before replacing the caliper.
Fits
It is a rear brake caliper for the 2001-2009 Volvo S60 and a direct-fit replacement for the 2001-2007 Volvo V70 and the 2003-2007 Volvo XC70. This listing is one caliper for the rear right, so the car takes one on that side; the rear left is a separate part, and both sides are normally replaced together. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Rear right
- Quantity: 1 per listing, for the rear right side
- Piston diameter: 42 mm (1.65 in)
- Piston quantity: 1
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rear right brake caliper with its bracket, caliper and pad hardware, and crush washers. Brake pads, anti-squeal shims, wear sensors and mounting bolts are not included; plan on new bolts.
Interchange / FMSI:
FMSI: D795
Frequently Asked Questions
Is this one of the 2001-2009 Volvo S60 calipers for the rear right wheel?
Yes. Nugeon 99-09325B is a rear right caliper for the 2001-2009 Volvo S60. The rear left wheel takes its own separate caliper.
Is 99-09325B a brake caliper for the 2001-2007 Volvo V70?
Yes. This Nugeon 99-09325B rear right caliper fits the 2001-2007 Volvo V70, one per side.
Does this disc brake caliper come with brake pads?
No. Pads, anti-squeal shims, wear sensors and mounting bolts are not included, so plan on new bolts. You get the caliper, bracket, slides, dust boots, hardware and crush washers.
What piston size and bleeder thread does the Nugeon caliper have?
Nugeon 99-09325B has one steel piston 42 mm (1.65 in) across and an M10-1.0 bleeder screw, with an M10-1.0 inlet port thread.
How can I tell if a rear caliper is sticking?
Signs can include the car pulling to one side, one rear pad wearing faster than the other, or fluid around the piston boot. A shop can test it, and a brake service lets you look at the pads and boot.
