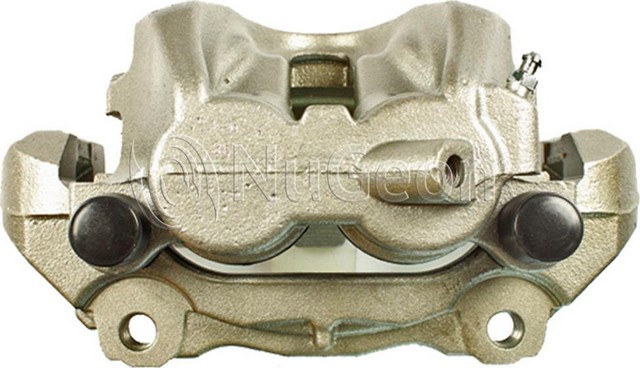

Nugeon 99-09355B front right brake caliper for the 2010-2015 Volvo XC60 and other vehicles clamps the brake pads against the rotor to slow the wheel. This is a remanufactured unit, and it replaces a worn or leaking caliper at that wheel.
- Floating design with two steel pistons, 44 mm in diameter
- Cast iron housing with a rust-preventative finish
- Line-type inlet fitting with an M10-1.0 inlet port thread
- Bleeder screw with M10-1.0 thread and crush washers
Quick facts
- Part: Nugeon 99-09355B brake caliper
- Also called: disc brake caliper
- Fits: 2010-2015 Volvo XC60 and other vehicles
- Position: Front right
- Material: Cast iron caliper casting, steel pistons
- Condition: Remanufactured
A worn caliper can show up as pulling to one side, uneven pad wear or brake fluid around the wheel. These signs alone do not prove the caliper is at fault; a collapsed brake hose is another common cause. This listing is one caliper for the front right; the front left is a separate part, and the two are normally replaced together. Each front wheel has its own caliper.
Fits
It is a direct-fit replacement for the 2010-2015 Volvo XC60 and the 2003-2014 Volvo XC90.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Piston outside diameter: 44 mm (1.732 in)
- Piston quantity: 2
- Inlet port thread: M10-1.0
- Bleeder screw thread: M10-1.0
- Housing cast number: 928
- Bracket cast numbers: 956, 967, 1709462
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Caliper casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw, crush washers and caliper and pad hardware. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bolts because the old ones may not be reusable.
Frequently Asked Questions
Is this a Volvo XC90 brake caliper for 2003-2014 models?
Yes. Nugeon 99-09355B is the front right caliper for the 2003-2014 Volvo XC90, and it also fits the 2010-2015 Volvo XC60.
Does this disc brake caliper come with the bracket and slides?
Yes. Nugeon 99-09355B includes the mounting bracket, slides, dust boots, bleeder screw, crush washers and hardware. Pads, shims and wear sensors are not included.
What is the piston size on this Nugeon brake caliper?
The piston diameter is 44 mm (1.732 in), and the caliper has two steel pistons. It is a floating caliper.
Is this Nugeon caliper new or remanufactured?
It is remanufactured. The housing is cast iron with a rust-preventative finish.
What are the signs of a sticking front right caliper?
The car may pull to one side when braking, the pads may wear unevenly, or brake fluid may show up around the wheel. A shop can inspect and test the brakes to find the cause.
