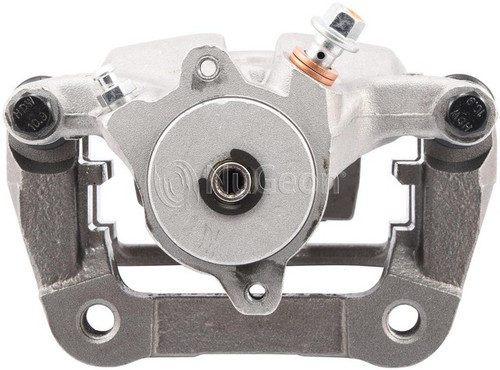

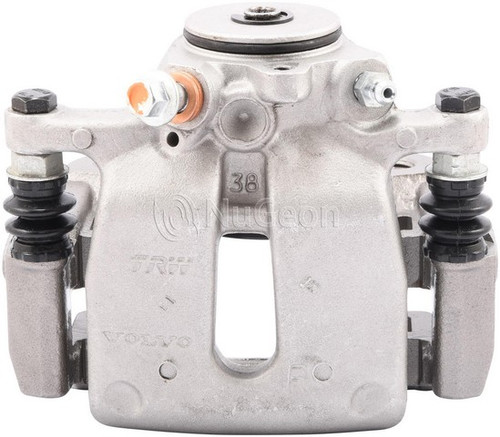

Nugeon 99-09357A rear right brake caliper for the 2011-2018 Volvo S60 and other vehicles squeezes the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured and is also called a disc brake caliper.
- Cast iron housing with a rust-preventative finish
- Steel piston, 38 mm (1.496 in) outside diameter
- Banjo bolt inlet fitting with an M10-1.5 inlet port thread
- Bleeder screw with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-09357A brake caliper
- Also called: disc brake caliper
- Fits: 2011-2018 Volvo S60 and other vehicles
- Position: Rear right
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A caliper that is sticking or leaking can show up as the car pulling to one side under braking, a wheel that drags, or brake fluid around the caliper. Before you replace it, rule out worn pads, a damaged brake hose and seized slide pins at that wheel, since those can pull or drag too. A shop can test the brakes.
Fits
This caliper is listed for a wide range of Volvo models, led by the 2011-2018 Volvo S60, the 2016-2018 Volvo S60 Cross Country and the 2015-2018 Volvo V60. If your Volvo is a different one, look up your year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1 (this side)
- Piston outside diameter: 38 mm (1.496 in)
- Piston quantity: 1
- Inlet port thread: M10-1.5 x 23.14 mm
- Bleeder screw thread: M10-1.0 x 28 mm
Build and materials
- Type: Remanufactured disc brake caliper
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Inlet fitting: Banjo bolt
- Housing cast numbers: 1992/A, 1991/A
- Bracket cast number: 537/D
- Country of origin: Mexico
In the box
One caliper with its bracket, caliper slides, dust boots, caliper and pad hardware, mounting hardware, bleeder screw, banjo bolt and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new mounting bolts rather than reusing the old ones. This listing is one caliper for the rear right, which takes one; the rear left is its own part, ordered separately, and the two sides are normally replaced together.
Frequently Asked Questions
Is this one of the 2011-2018 Volvo S60 calipers for the rear right or the rear left?
Nugeon 99-09357A is the rear right caliper for the 2011-2018 Volvo S60. The rear left side takes its own separate caliper.
Does the Nugeon 99-09357A also fit the 2015-2018 Volvo V60?
Yes, Nugeon 99-09357A is listed as a rear right caliper for the 2015-2018 Volvo V60 and the 2016-2018 Volvo S60 Cross Country. Other Volvos are in the "Vehicles it fits" section.
Do I need to buy pads and bolts separately with this remanufactured caliper?
Yes, brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included, so plan on new bolts. The bracket, slides, dust boots, bleeder screw, banjo bolt and crush washers are included.
What piston and inlet fitting does this Nugeon caliper have?
Nugeon 99-09357A has one steel piston, 38 mm (1.496 in) across, and a banjo bolt inlet with an M10-1.5 x 23.14 mm port thread. The bleeder screw is M10-1.0 x 28 mm.
What are the cast numbers on this remanufactured caliper?
The housing carries cast numbers 1992/A and 1991/A, and the bracket carries cast number 537/D.
