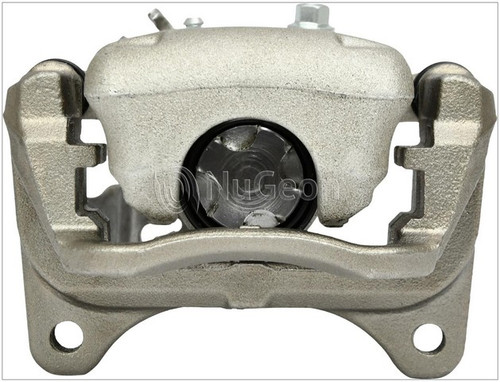

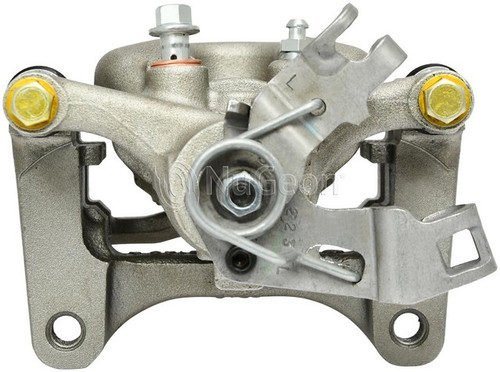

Nugeon 99-17499B rear left brake caliper for the 2016-2019 Chevrolet Cruze clamps the brake pad against the rotor to slow the wheel. This remanufactured Nugeon brake caliper, also called a disc brake caliper, arrives with its bracket and hardware.
- Floating caliper design with a single steel piston, 38 mm in diameter
- Aluminum caliper housing with a rust-preventative finish
- Mounting bracket, caliper slides, dust boots and caliper and pad hardware included
- Banjo inlet fitting with M10-1.0 thread and crush washers included
- Bleeder screw included, M10-1.0 thread
Quick facts
- Part: Nugeon 99-17499B brake caliper
- Also called: disc brake caliper
- Fits: 2016-2019 Chevrolet Cruze
- Position: Rear left
- Material: Aluminum housing, steel piston
- Condition: Remanufactured
Pulling to one side, a burning smell near a wheel or fluid around the caliper can mean a rear caliper is sticking or leaking. Other brake parts can produce similar symptoms, so during a brake service, with the engine off, look at the dust boot and pads for fluid or uneven wear before replacing the caliper; a shop can test the rest.
Fits
This caliper is a direct-fit replacement for the rear left side of the 2016-2019 Chevrolet Cruze. This listing is one caliper, and both rear sides are normally replaced together.
Specifications
Fit and size
- Position: rear left
- Quantity per vehicle: 1 for this side
- Piston diameter: 38 mm (1.496 in); piston outside diameter 38.07 mm (1.5 in)
- Inlet fitting: banjo, M10-1.0 port thread
- Banjo bolt quantity: 1
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: floating, 1 piston
- Housing material: aluminum
- Piston material: steel
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One rear left caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. The rear left takes one; the rear right is ordered separately. Brake pads, bracket mounting bolts, mounting bolts, anti-squeal shims, a bleeder screw cap, a grease pack and wear sensors are not included. Plan on new mounting bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1857
Frequently Asked Questions
Which side does this 2016-2019 Chevy Cruze brake caliper go on?
The Nugeon 99-17499B goes on the rear left of the 2016-2019 Chevrolet Cruze. The rear right takes its own caliper, sold separately.
What hardware comes with this Nugeon caliper?
The Nugeon 99-17499B includes the bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Pads and mounting bolts are not included.
What thread size do the inlet port and bleeder screw use on this brake caliper?
The banjo inlet port and the bleeder screw are both M10-1.0. The piston is 38 mm in diameter.
How can I tell if this rear left brake caliper is sticking?
Pulling to one side, a burning smell near one wheel or one pad worn much faster than the other can mean a sticking caliper. Because this is a brake part, have it checked promptly.
Is this rear left brake caliper a floating type?
Yes. The Nugeon 99-17499B is a floating caliper with one steel piston in an aluminum housing.
