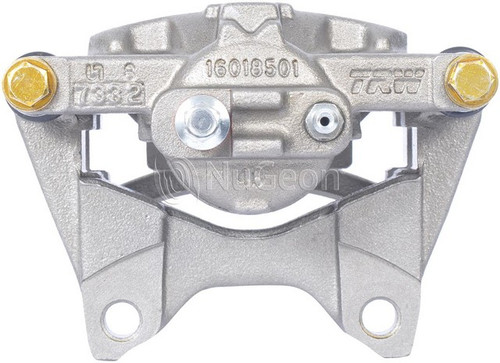

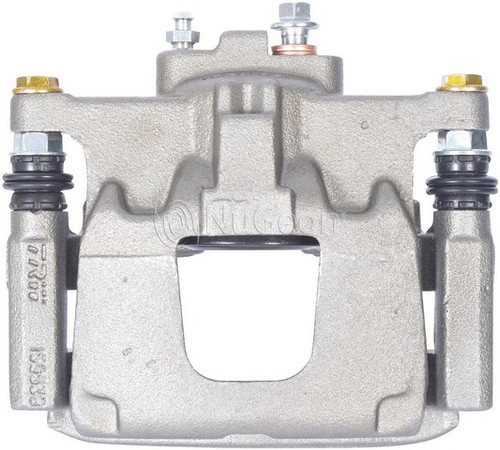

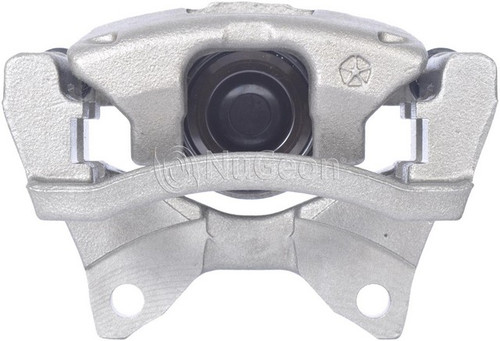

Nugeon 99-17736B rear brake caliper for the 2007-2017 Jeep Wrangler and other vehicles clamps the brake pads against the rotor to slow the wheel. Also known as a disc brake caliper, this Nugeon caliper is remanufactured.
- Floating caliper design with a single phenolic piston, 48 mm in diameter
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet fitting for the brake line connection
Quick facts
- Part: Nugeon 99-17736B brake caliper
- Also called: disc brake caliper
- Fits: the 2007-2017 Jeep Wrangler and other vehicles
- Position: Rear left, rear right
- Material: Cast iron
- Condition: Remanufactured
Fluid around the caliper, a car that pulls to one side or pads that wear unevenly can mean this caliper is worn, though a collapsed brake hose or a worn rotor can be behind the same signs. Rear calipers are normally swapped as a pair, and this listing is one caliper. The 2007-2017 Jeep Wrangler takes one at each rear wheel.
Fits
This caliper is listed for a range of Jeep and Dodge models, including the 2007-2017 Jeep Wrangler, the 2008-2012 Jeep Liberty and the 2018 Jeep Wrangler JK. Search the "Vehicles it fits" section for your own year and model.
Specifications
Fit and size
- Position: rear left, rear right
- Quantity per vehicle: 1
- Piston diameter: 48 mm (1.89 in)
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
- Cast numbers: housing 16018501, bracket 15953801
Build and materials
- Condition: remanufactured
- Caliper type: floating
- Casting material: cast iron
- Piston material: phenolic
- Finish: rust preventative
- Inlet fitting: banjo bolt
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap, bracket mounting bolts and caliper and pad hardware are not included, so plan on new bracket mounting bolts; the old ones may not be reusable.
Frequently Asked Questions
Is this the right brake caliper for a 2007-2017 Jeep Wrangler?
Yes. Nugeon 99-17736B is a rear caliper listed for the 2007-2017 Jeep Wrangler, and it is used on the rear left or rear right.
What comes with this Nugeon brake caliper?
Nugeon 99-17736B comes with the mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, shims, wear sensors and bracket mounting bolts are not included.
What diameter is the piston in the 99-17736B rear caliper?
This rear caliper has one phenolic piston that measures 48 mm (1.89 in) across.
Which signs can point to a worn rear brake caliper?
Brake fluid around the caliper, pulling to one side or unevenly worn pads can mean the caliper is worn. If you are unsure, a shop can test the brakes.
What thread does the inlet on this banjo bolt caliper use?
The inlet port thread is M10-1.0 x 23.4 mm, and the bleeder screw uses an M10-1.0 thread.
