Rear Right Brake Caliper for 2010-2018 Mercedes-Benz Sprinter 3500 & More - Nugeon 99-17746B

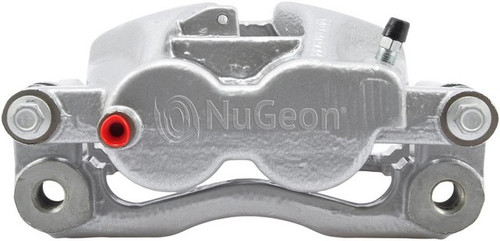

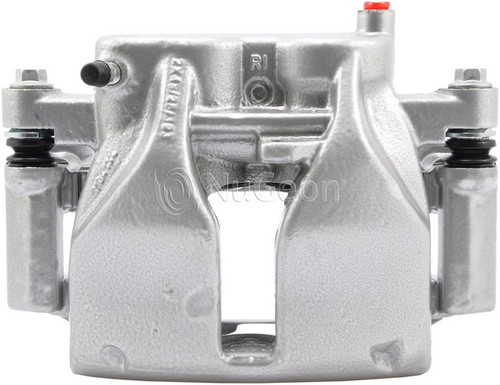

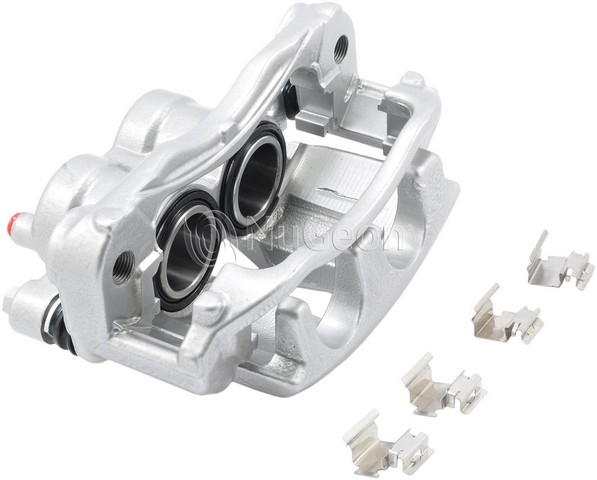

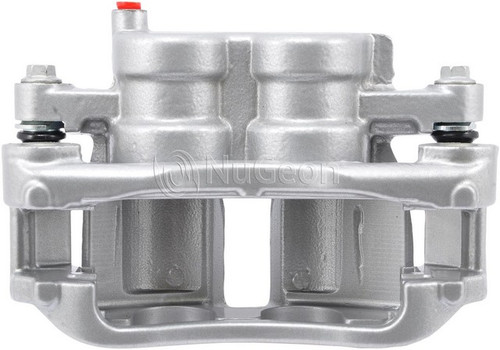

Nugeon 99-17746B rear right brake caliper for the 2010-2018 Mercedes-Benz Sprinter 3500 and other vehicles squeezes the brake pads against the rotor to slow the wheel. This Nugeon caliper is remanufactured, a floating disc brake caliper with a cast iron housing.
- Floating design with two steel pistons, 48 mm (1.89 in) in diameter
- Cast iron housing with a rust preventative finish
- Bleeder screw and line inlet port both use M10-1.0 threads
Quick facts
- Part: Nugeon 99-17746B brake caliper
- Also called: disc brake caliper
- Fits: 2010-2018 Mercedes-Benz Sprinter 3500 and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A dragging brake, a pull to one side or fluid near the rear right wheel can mean this caliper is worn, though a brake hose or the brake pads can be behind the same signs. This listing is one caliper for the rear right; the rear left is a separate part, and both rear calipers are normally replaced together.
Fits
It fits the 2010-2018 Mercedes-Benz Sprinter 3500, the 2007-2018 Freightliner Sprinter 3500 and the 2007-2009 Dodge Sprinter 3500, and each takes one at the rear right wheel.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Piston diameter: 48 mm (1.89 in)
- Piston quantity: 2
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Housing cast numbers: 2X48/28/303 Y04133
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper and pad hardware, slides, dust boots, bleeder screw with cap and crush washers. Brake pads, wear sensors, anti-squeal shims, the bracket mounting bolts and the caliper mounting bolt are not included, so plan on new bolts rather than reusing the old ones.
Interchange / FMSI:
FMSI: D1318
Frequently Asked Questions
Will this Nugeon brake caliper fit the 2007-2009 Dodge Sprinter 3500?
Yes. Nugeon 99-17746B fits the 2007-2009 Dodge Sprinter 3500 at the rear right wheel, and that vehicle takes one caliper for that position.
Does this rear right caliper come with brake pads?
No. Nugeon 99-17746B includes the bracket, slides, dust boots, bleeder screw with cap, hardware and crush washers. Pads, wear sensors and anti-squeal shims are not included.
How big are the pistons on this rear right caliper?
This rear right caliper has two steel pistons with a 48 mm (1.89 in) diameter. It is a floating caliper with a cast iron housing.
My rear right wheel drags. Could the caliper be the problem?
Yes, it can. A dragging brake, a pull to one side or fluid around the caliper can point to a worn or leaking caliper, and a shop can inspect the brakes to confirm.
What thread does the bleeder screw on this caliper use?
Nugeon 99-17746B has an M10-1.0 bleeder screw thread, and its line inlet port is also M10-1.0.
