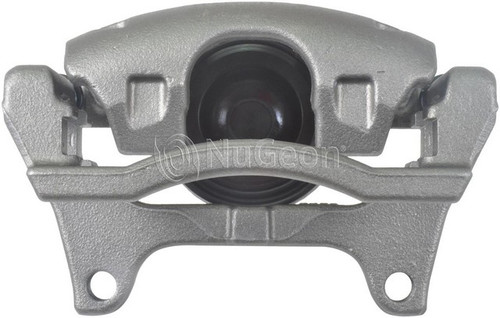

Nugeon 99-17748A front left brake caliper for the 2009-2013 Dodge Journey clamps the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating design, also called a disc brake caliper, with a single piston.
- Floating caliper with one phenolic piston, 65.89 mm outside diameter
- Cast iron body with a rust-preventative finish
- Banjo inlet fitting with an M10-1.0 x 23.4 mm inlet port thread
Quick facts
- Part: Nugeon 99-17748A brake caliper
- Also called: disc brake caliper
- Fits: 2009-2013 Dodge Journey
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side, a pad wearing faster on one side or fluid near the wheel. Before you replace the caliper, rule out a worn brake hose, worn pads and a damaged rotor, since those can cause some of the same signs. This listing is one caliper, and both front calipers are normally replaced together.
Fits
This front left brake caliper fits the 2009-2013 Dodge Journey.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1 for this side
- Piston outside diameter: 65.89 mm (2.59 in)
- Number of pistons: 1
- Inlet fitting: Banjo, M10-1.0 x 23.4 mm port thread
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Caliper casting material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Condition: Remanufactured
- Housing cast number: 16018401
- Country of origin: Mexico
In the box
One front left caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washer. The 2009-2013 Dodge Journey takes one caliper on this side; the front right is ordered separately. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, the bracket mounting bolts and the mounting bolt are not included, so plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is this a 2009-2013 Dodge Journey brake caliper for the left or right side?
It goes on the front left. Nugeon 99-17748A fits the 2009-2013 Dodge Journey, and the front right uses its own separate caliper.
What comes with this Nugeon caliper?
The caliper comes with its bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washer. Brake pads, anti-squeal shims, wear sensors and mounting bolts are not included.
What size is the piston on this front left caliper?
Nugeon 99-17748A has one phenolic piston with a 65.89 mm (2.59 in) outside diameter. The bleeder screw thread is M10-1.0.
What signs can a sticking front left brake caliper show?
A sticking caliper can show as the car pulling to one side, uneven pad wear or a fluid leak at the caliper. A shop can test it to confirm the cause.
What is the body of this floating brake caliper made of?
Nugeon 99-17748A has a cast iron casting with a rust-preventative finish. Its piston is phenolic.
