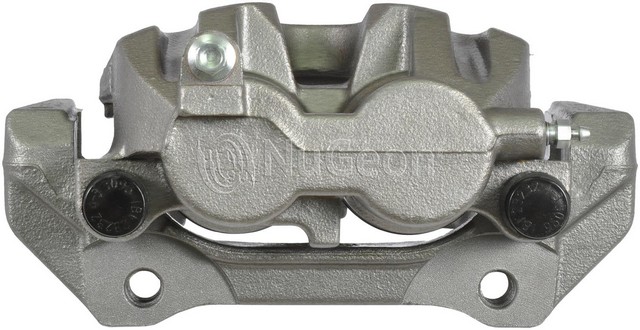

Nugeon 99-17756B front left brake caliper for the 2011-2020 Jeep Grand Cherokee and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured disc brake caliper uses brake fluid pressure to drive the pistons that apply the pads.
- Floating design with two phenolic pistons, each 48 mm (1.89 in) in outside diameter
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet with an M10-1.0 x 23.4 inlet port thread
Quick facts
- Part: Nugeon 99-17756B brake caliper
- Also called: disc brake caliper
- Fits: 2011-2020 Jeep Grand Cherokee and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side under braking, one pad wearing faster than the other, or fluid around the piston boot. Pads, hoses or the rotor can cause similar signs, so at a brake service check the boot and slides first. If the caliper is the cause, this one replaces it.
Fits
It fits the front left of the 2011-2020 Jeep Grand Cherokee and the 2011-2020 Dodge Durango. This listing is one caliper; the front right on the same axle is a separate part, and the two sides are normally done together.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1 for this side
- Piston diameter: 48 mm (1.89 in)
- Piston quantity: 2
- Inlet fitting: banjo bolt, M10-1.0 x 23.4 inlet port thread
- Bleeder screw thread: M10-1.0
- Housing cast number: 4865 LH
- Bracket cast number: 0315
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One front left brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap, and crush washer; the front left takes one. Brake pads, bracket mounting bolts, anti-squeal shims and wear sensors are not included, so plan on new bracket bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1455
Frequently Asked Questions
Is Nugeon 99-17756B the right caliper for the 2011-2020 Jeep Grand Cherokee?
Yes. Nugeon 99-17756B fits the front left side of the 2011-2020 Jeep Grand Cherokee. The right side is a separate caliper.
Is this the right brake caliper for the 2011-2020 Dodge Durango front left?
Yes. This front left caliper fits the 2011-2020 Dodge Durango. It is sold singly, so the opposite side needs its own.
What comes with this Nugeon brake caliper?
Nugeon 99-17756B comes with its bracket, caliper slides, dust boots, hardware, bleeder screw with cap, and a crush washer. Brake pads, bracket bolts, shims and wear sensors are not included.
Which hose fitting does this Nugeon caliper take?
Nugeon 99-17756B has a banjo bolt inlet with an M10-1.0 x 23.4 thread. Its bleeder screw is M10-1.0.
How can I tell if the front left caliper is leaking or sticking?
Signs can include the car pulling to one side when braking, brake fluid around the piston boot or bleeder, and one pad worn faster than the other at a brake service. A shop can check the hydraulics.
