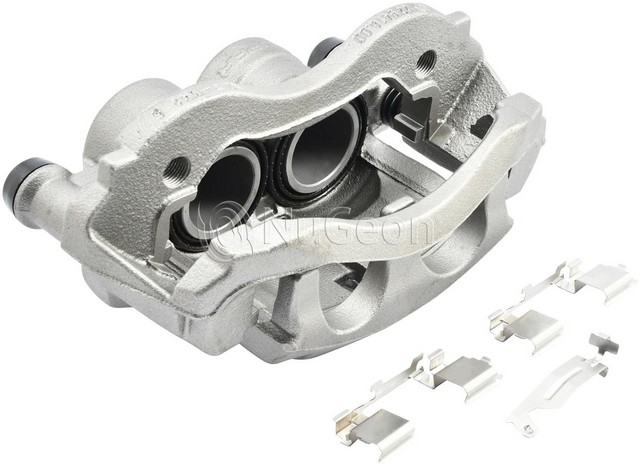

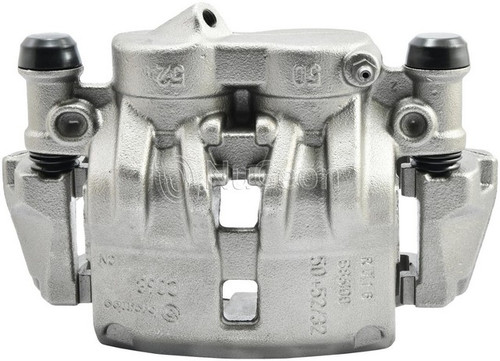

Nugeon 99-17785A front left brake caliper for the 2014-2024 Ram ProMaster 1500 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper has a rust-preventative finish.
Signs a caliper may need replacing include a dragging or seized wheel, uneven pad wear, fluid leaking at the piston or fitting, or a soft pedal. With the engine off, look at the dust boot and line fitting for wetness before you replace it, because worn pads or air in the line can show similar symptoms; a shop can test the rest. This listing is one front left caliper; the front right is a separate part, and both sides are normally replaced together.
This direct-fit front left caliper suits the 2014-2024 Ram ProMaster 1500, the 2014-2024 Ram ProMaster 2500 and the 2014-2024 Ram ProMaster 3500, and each of them takes one.
Fit and size
Build and materials
One caliper with a bleeder screw and cap, one banjo bolt and crush washers. Brake pads, anti-squeal shims, a grease pack, bracket mounting bolts and caliper mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1540
Interchange: 68230103AB
This part cross-references / interchanges with the following part numbers:
Does this Nugeon brake caliper fit the 2014-2024 Ram ProMaster 1500?
Yes. Nugeon 99-17785A is a direct-fit front left caliper for the 2014-2024 Ram ProMaster 1500, and that vehicle takes one on the front left.
Are brake pads included with this Nugeon caliper?
No. Pads, anti-squeal shims, a grease pack and mounting bolts are not included. The caliper does come with the mounting bracket, caliper and pad hardware, slides and dust boots.
What thread size is the bleeder screw on this front left caliper?
Nugeon 99-17785A has an M10-1.0 bleeder screw, and its line inlet fitting also uses an M10-1.0 thread. A bleeder screw cap, one banjo bolt and crush washers are included.
What size are the pistons in this floating caliper?
This floating caliper has two steel pistons, 50 mm (1.97 in) and 52 mm (2.05 in) in outside diameter.
Can a sticking front left caliper make a vehicle pull to one side?
Yes, it can. Pulling to one side while braking or a burning smell after driving can mean a caliper is sticking, so have a shop inspect the brakes promptly.
