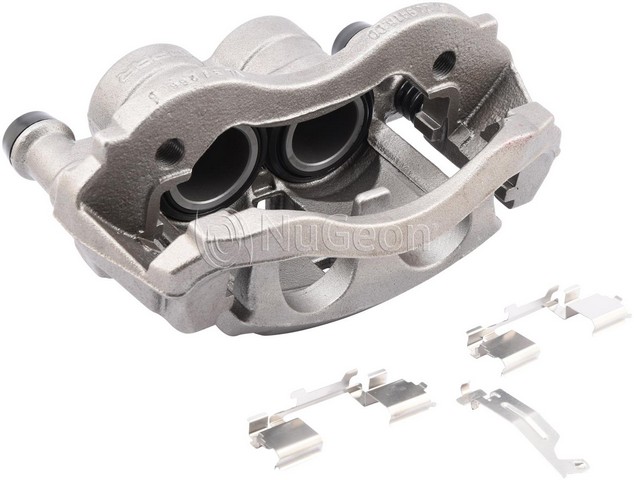

Nugeon 99-17785B front right brake caliper for the 2014-2024 Ram ProMaster 1500 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper replaces a worn or leaking unit on the front right brake.
Pulling to one side under braking, fluid around the caliper or uneven pad wear can mean the caliper is worn, though a collapsed brake hose or glazed pads can also bring them on, so rule those out before replacing it. Front calipers are normally replaced as an axle pair, one on each side; this listing is one caliper for the front right, and the front left is a separate part.
This front right caliper is a direct-fit replacement for the 2014-2024 Ram ProMaster 1500, the 2014-2024 Ram ProMaster 2500 and the 2014-2024 Ram ProMaster 3500.
Fit and size
Build and materials
One remanufactured front right caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and cap, caliper and pad hardware and crush washers. Brake pads, anti-squeal shims, a grease pack and bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1540
Interchange: 68230102AB
This part cross-references / interchanges with the following part numbers:
Does the Nugeon brake caliper fit the 2014-2024 Ram ProMaster 3500?
Yes. Nugeon 99-17785B fits the 2014-2024 Ram ProMaster 3500 at the front right wheel. The front left takes its own separate caliper.
What comes with this Nugeon caliper besides the caliper body?
It comes with the bracket, slides, dust boots, bleeder screw and cap, caliper and pad hardware and crush washers. Pads, shims, a grease pack and bracket mounting bolts are not included.
Is this front right caliper a floating or fixed type?
It is a floating type. Nugeon 99-17785B has two steel pistons, 50 mm and 52 mm in diameter, in a cast iron housing.
What thread size does the bleeder screw use?
The bleeder screw is M10-1.0, and the inlet port for the brake line uses the same M10-1.0 thread.
Does Nugeon 99-17785B cross-reference to 68230102AB?
Yes. 68230102AB is listed as an interchange number for this front right caliper.
