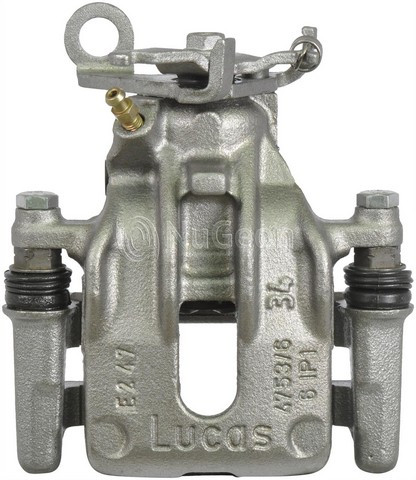

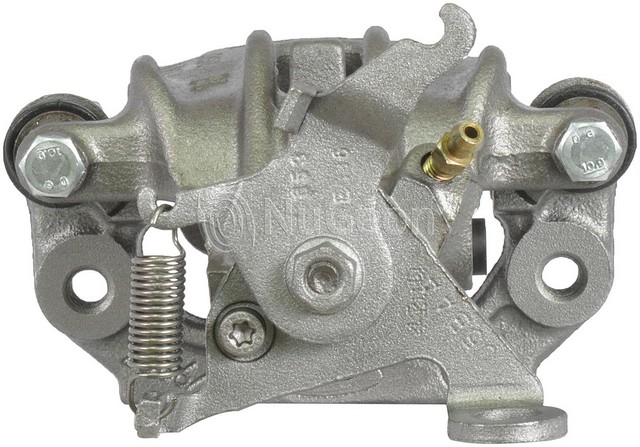

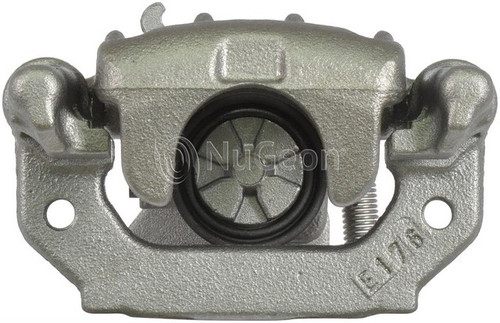

Nugeon 99-17891B rear left brake caliper for the 2000-2007 Ford Focus clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces one that has worn out, seized or started to leak on the rear left.
- Floating caliper with one 34 mm steel piston
- Cast iron housing with a rust-preventative finish
Quick facts
- Part: Nugeon 99-17891B brake caliper
- Also called: disc brake caliper
- Fits: 2000-2007 Ford Focus
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A pull to one side, a dragging brake or fluid at the wheel can mean this caliper is worn, though a collapsed brake hose or worn pads can be behind them too, so find the cause before replacing it.
Fits
This brake caliper is a direct-fit replacement for the left rear of the 2000-2007 Ford Focus. This listing is one caliper for the rear left; the car takes one on each side of the rear axle, so the rear right is ordered separately and the pair is normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Piston diameter: 34 mm (1.339 in)
- Piston quantity: 1
- Bleeder screw: M7-1.0 x 32
- Inlet port thread: M10-1.0, plug fitting
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast number: 4753/6
- Bracket cast number: 2386-1
- Country of origin: Mexico
In the box
One caliper with its bracket, slides and dust boots, plus caliper and pad hardware, a bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D886
Frequently Asked Questions
Is this the rear brake caliper for the 2000-2007 Ford Focus, left or right side?
It is the left side. Nugeon 99-17891B is the rear left caliper for the 2000-2007 Ford Focus, and the rear right is a separate part.
Does the Nugeon caliper come with the bracket and brake pads?
Nugeon 99-17891B includes the bracket, slides, dust boots, hardware and bleeder screw. Brake pads and the bracket mounting bolts are not included.
What size is the piston on this floating caliper?
This caliper has one steel piston that measures 34 mm (1.339 in) across.
What thread sizes does this disc brake caliper use?
The bleeder screw is M7-1.0 x 32, and the inlet port is M10-1.0 with a plug fitting.
Is this rear left caliper remanufactured, and where is it made?
Yes, it is remanufactured, with a cast iron housing and a rust-preventative finish. The country of origin is Mexico.
