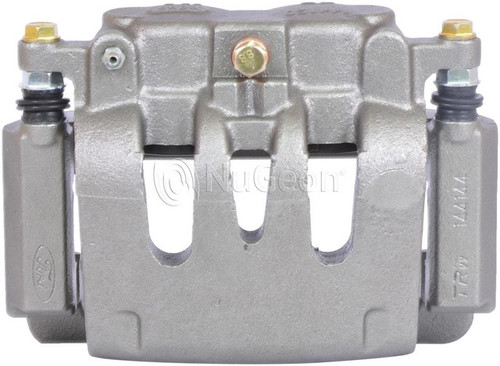

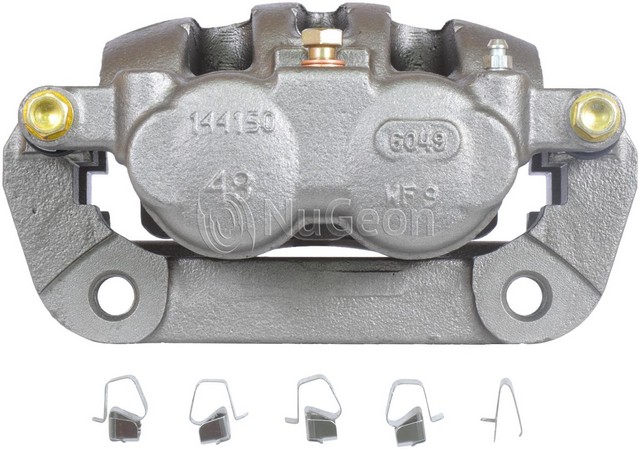

Nugeon 99-17937B rear left brake caliper for the 2005-2007 Ford F-250 Super Duty and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper comes with its bracket, slides and dust boots.
- Floating caliper with two 48 mm phenolic pistons
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet with a 3/8-24 thread and a crush washer
- Bleeder screw included, sized 3/8-24 x 1
- Caliper and pad hardware included
Quick facts
- Part: Nugeon 99-17937B brake caliper
- Also called: disc brake caliper
- Fits: 2005-2007 Ford F-250 Super Duty and other vehicles
- Position: Rear left
- Material: Cast iron housing, phenolic pistons
- Condition: Remanufactured
Fluid wetness around the piston boot, one pad wearing faster than the other, or the truck pulling when you brake can mean a caliper is failing. If you are already doing a brake service with the wheel off, look over the old caliper for wet fluid at the boot and see whether the slides move freely by hand, since a seized slide or a tired hose can also leave a pad dragging.
Fits
This caliper fits the 2005-2007 Ford F-250 Super Duty and the 2005-2007 Ford F-350 Super Duty. The rear left position on both trucks takes one caliper; the rear right is a separate part, and the two are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston diameter: 48 mm (1.89 in)
- Piston quantity: 2
- Inlet fitting: Banjo bolt, 3/8-24 thread
- Bleeder screw size: 3/8-24 x 1
- Housing cast numbers: 144150, 48
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rear left brake caliper with its bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washer. Pads, anti-squeal shims, wear sensors, a bleeder screw cap and the bracket mounting bolts are not included, so plan on new mounting bolts rather than reusing the old ones.
Frequently Asked Questions
Is this the right brake caliper for the 2005-2007 Ford F-250 Super Duty rear left?
Yes. Nugeon 99-17937B fits the rear left of the 2005-2007 Ford F-250 Super Duty. The rear right side needs its own caliper.
Is this a brake caliper for the 2005-2007 Ford F-350 Super Duty rear left?
Yes. Nugeon 99-17937B is listed for the rear left on the 2005-2007 Ford F-350 Super Duty, and that position takes one caliper.
Are brake pads included with this Nugeon caliper?
No. This Nugeon caliper comes with its bracket, slides, dust boots, hardware, bleeder screw and crush washer. Pads, anti-squeal shims, wear sensors and the bracket mounting bolts are not included.
What size is the banjo bolt inlet on this rear brake caliper?
The inlet takes a banjo bolt with a 3/8-24 thread, and a crush washer is included. The bleeder screw is 3/8-24 x 1.
What can a failing disc brake caliper look like?
Fluid weeping at the piston boot, one pad wearing faster than the other, or the truck pulling to one side when braking can point to a caliper problem. A shop can confirm it.
