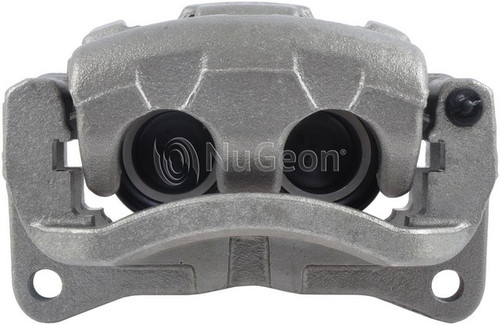

Nugeon 99-17975B front right brake caliper for the 2011-2014 Ford Edge and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper is meant to replace a unit that leaks, sticks or has worn out.
- Floating caliper with two steel pistons
- Cast iron body with a rust-preventative finish
- Banjo inlet fitting with an M10 - 1.0 thread
- Bleeder screw with an M8-1.0 thread included
Quick facts
- Part: Nugeon 99-17975B brake caliper
- Also called: disc brake caliper
- Fits: 2011-2014 Ford Edge and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side under braking, uneven pad wear or fluid around the dust boot. A worn hose or a stuck pad can also make a car pull, so find the cause before replacing the caliper: with the engine off and the brakes cool, look for a torn boot or wet fluid, and leave any other test to a shop.
Fits
This caliper is a direct-fit replacement for the 2011-2014 Ford Edge, the 2011-2015 Lincoln MKX and the 2007-2015 Mazda CX-9. The 2011-2014 Ford Edge takes one caliper at the front right; the front left is a separate part ordered on its own, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Piston quantity: 2
- Piston outside diameter: 45 mm (1.78 in)
- Inlet thread size: M10 - 1.0
- Bleeder screw thread: M8-1.0
Build and materials
- Caliper type: Floating
- Inlet fitting: Banjo
- Casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One front right brake caliper with its mounting bracket, caliper slides, dust boots, pad hardware, mounting hardware and crush washers. Brake pads, bracket mounting bolts, wear sensors, anti-squeal shims, a grease pack and a bleeder screw cap are not included, so plan on new bolts for the bracket rather than reusing the old ones.
Interchange / FMSI:
FMSI: D1258
Frequently Asked Questions
Will this brake caliper fit a 2013 Ford Edge in the 2011-2014 range?
Yes. Nugeon 99-17975B is the front right brake caliper for the 2011-2014 Ford Edge, so it fits a 2013 Ford Edge on that side. The front left caliper is ordered separately.
Does this Nugeon caliper come with the mounting bracket and slides?
Yes. The bracket, caliper slides, dust boots and pad hardware are included. Brake pads, bracket mounting bolts, wear sensors and anti-squeal shims are not.
What inlet fitting does this Nugeon brake caliper have?
Nugeon 99-17975B has a banjo inlet fitting with an M10 - 1.0 thread, and its bleeder screw is M8-1.0. Crush washers are included.
How can I tell this front right caliper is sticking?
Signs can include the car pulling to one side, a burning smell near the wheel after driving, or one pad wearing faster than the other. A shop can confirm whether the caliper is the cause.
How big are the pistons in the Nugeon 99-17975B?
This floating caliper has two steel pistons, each 45 mm (1.78 in) in outside diameter.
