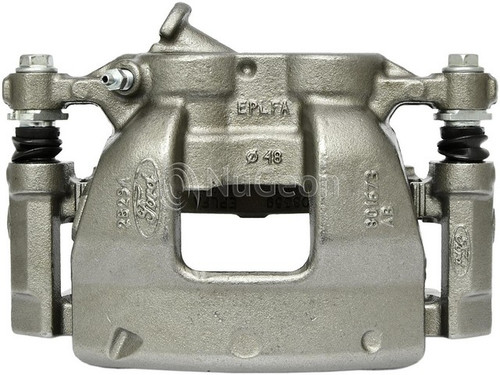

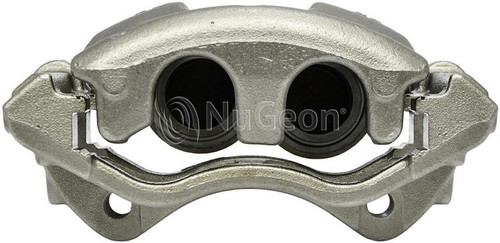

Nugeon 99-18029B front right brake caliper for the 2015-2020 Ford Transit-150 and other vehicles squeezes the brake pads against the rotor to slow the wheel. This Nugeon caliper is remanufactured.
- Floating design with two steel pistons
- Cast iron caliper body
- Rust preventative finish on the caliper
- M10-1.0 threads on both the bleeder screw and the inlet port
Quick facts
- Part: Nugeon 99-18029B brake caliper
- Also called: disc brake caliper
- Fits: 2015-2020 Ford Transit-150 and other vehicles
- Position: Front right
- Material: Cast iron body, steel pistons
- Condition: Remanufactured
Fluid near the wheel, a pull to one side under braking or one pad wearing faster than the other can mean a caliper is sticking or leaking. Those signs alone do not prove the caliper is at fault, since a worn brake hose can produce a similar pull.
Fits
It fits the 2015-2020 Ford Transit-150, the 2015-2020 Ford Transit-250 and the 2015-2020 Ford Transit-350. This listing is one caliper for the front right wheel, and that side takes one. The front left is a separate part, and the other caliper on the front axle is normally replaced at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Pistons: 2
- Piston diameter: 47.98 mm (1.89 in)
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: Floating
- Casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap, the bracket mounting bolts and the mounting bolt are not included, so plan on new bolts because the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1774
Frequently Asked Questions
Will this Nugeon brake caliper fit the 2015-2020 Ford Transit-350?
Yes, Nugeon 99-18029B fits the 2015-2020 Ford Transit-350 as the front right caliper, and the front left is a separate part.
Do brake pads and mounting bolts come with this remanufactured caliper?
No, because Nugeon 99-18029B leaves out brake pads, anti-squeal shims, wear sensors, a bleeder screw cap and mounting bolts; the bracket, slides, dust boots, hardware, bleeder screw and crush washers are included.
Is this disc brake caliper floating or fixed, and how many pistons does it have?
It is a floating caliper with two steel pistons, a 47.98 mm (1.89 in) piston diameter and a cast iron body.
Can a sticking floating caliper make the vehicle pull to one side?
Yes, a caliper that sticks can drag on one wheel and pull the vehicle toward that side. Have any braking problem checked promptly.
What size is the bleeder screw on the Nugeon 99-18029B?
Nugeon 99-18029B has an M10-1.0 bleeder screw, included in the box, and an M10-1.0 inlet port thread. The bleeder screw cap is not included.
