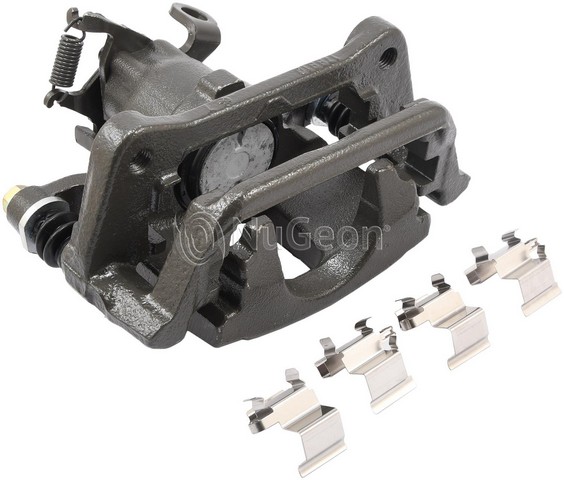

TERREPOWER 99P17770B rear left brake caliper for the 2012-2020 Dodge Journey clamps the brake pads against the rotor to slow the wheel. It is a remanufactured floating caliper with a single steel piston.
- Floating design with a single steel piston
- Cast iron housing with an E-coated finish
- Banjo inlet fitting with an M10-1.0 x 23.4 mm port thread
- Cast number 179913 on the housing and 179910 on the bracket
Quick facts
- Part: TERREPOWER 99P17770B brake caliper
- Also called: disc brake caliper
- Fits: 2012-2020 Dodge Journey
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side, uneven pad wear or brake fluid near the wheel. A collapsed brake hose, worn pads or a worn rotor can be behind those signs too, so find the cause before buying.
Fits
This caliper is a direct-fit replacement for the 2012-2020 Dodge Journey. This listing is one caliper for the rear left; the rear right is a separate part ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston quantity: 1
- Piston outside diameter: 45.31 mm (1.78 in)
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0 x 23.4 mm
Build and materials
- Caliper type: Floating
- Inlet fitting: Banjo
- Housing material: Cast iron
- Piston material: Steel
- Finish: E-coated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket and caliper mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is the TERREPOWER 99P17770B a rear brake caliper for the 2012-2020 Dodge Journey, including a 2013?
Yes. TERREPOWER 99P17770B fits the 2012-2020 Dodge Journey, 2013 included, at the rear left. The rear right takes its own caliper, sold separately.
Does this remanufactured caliper come with the mounting bracket and slides, or just the caliper body?
The bracket, caliper slides, dust boots, hardware, bleeder screw and crush washers are included. Brake pads, shims, wear sensors and mounting bolts are not.
What type of disc brake caliper is the TERREPOWER 99P17770B, and how big is its piston?
TERREPOWER 99P17770B is a floating caliper with a cast iron housing and one steel piston. The piston is 45.31 mm (1.78 in) in outside diameter.
How do I know if a rear brake caliper is sticking or leaking fluid?
Signs can include the car pulling to one side, pads wearing unevenly, or brake fluid near the caliper or its dust boot. A shop can test the brake hydraulics, so have the brakes checked promptly.
What thread does the bleeder screw on this caliper use?
The bleeder screw included with TERREPOWER 99P17770B is M10-1.0, and the banjo inlet port thread is M10-1.0 x 23.4 mm. The bleeder screw cap is not included.
