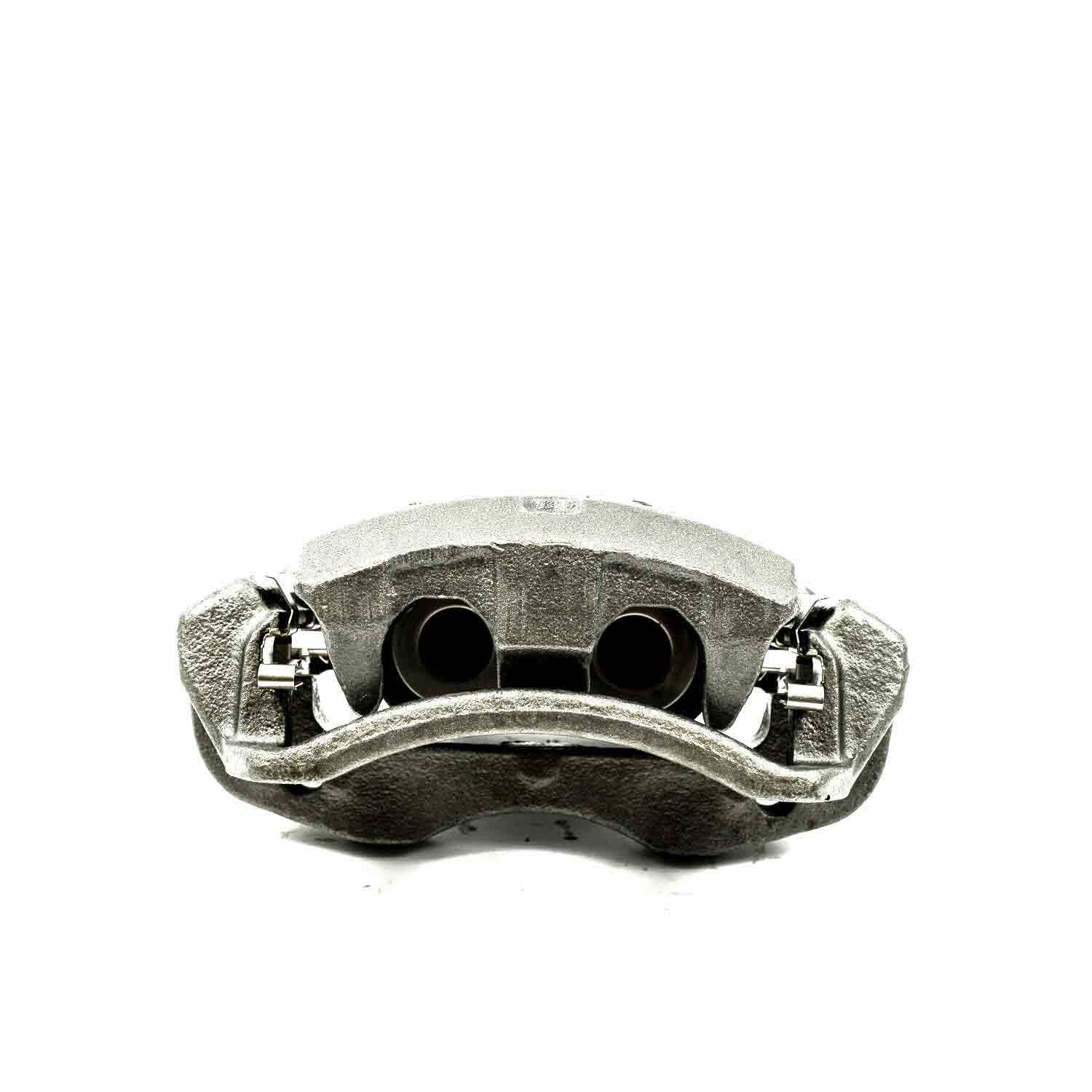

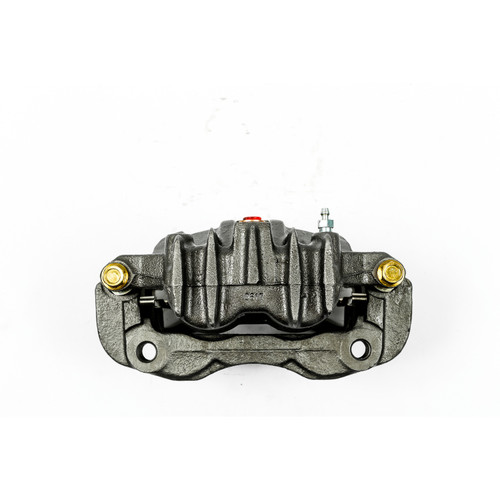

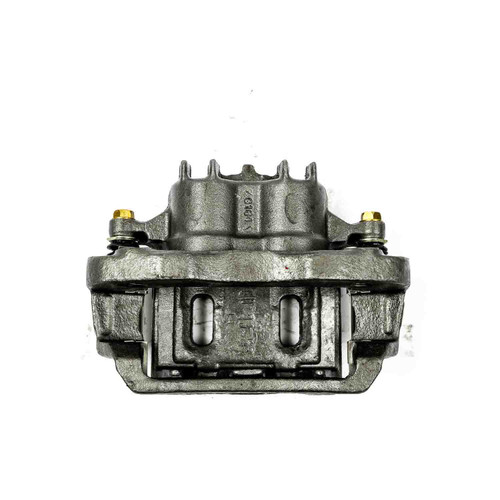

PowerStop L4753 rear left brake caliper for the 2000-2005 Ford Excursion and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a floating, two-piston caliper sold individually.

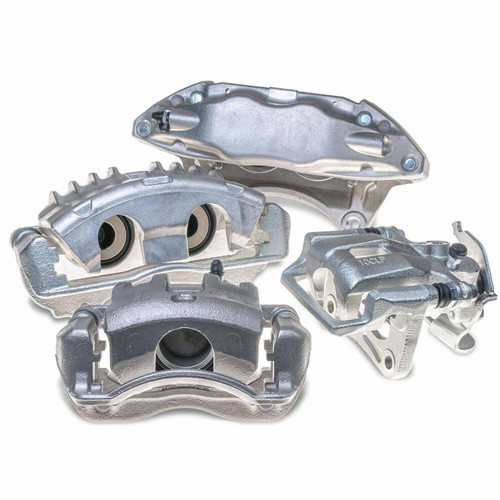

- Autospecialty by PowerStop replacement brake caliper line
- Bolt-on design with no modifications necessary
- 100% pressure tested and inspected
- New seals, caliper guide pins, dust boots and bleeder screw fitted
- High temperature EPDM rubber dust boots
- Assembly lubricant for smooth caliper operation
Quick facts
- Part: PowerStop L4753 brake caliper
- Also called: disc brake caliper
- Fits: 2000-2005 Ford Excursion and other vehicles
- Position: Rear left
- Material: Cast iron
- Condition: New
A sticking or leaking caliper can show up as the vehicle pulling to one side, a brake that drags or uneven pad wear. Before you replace this disc brake caliper, rule out worn pads, seized slide pins and a collapsed brake hose, since each of those can pull or drag a brake too.
Fits
The same caliper also fits the 2000-2004 Ford F-250 Super Duty and the 2000-2004 Ford F-350 Super Duty. The rear axle takes one caliper per side; this listing is the left one, and the right side is a separate part that is normally replaced at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity per position: 1
- Piston quantity: 2
- Piston diameter: 44.96 mm
- Inlet thread: 3/8 - 24 (0.375 in, 24 threads per inch)
- Bleeder screw quantity: 1
Build and materials
- Type: Floating caliper
- Casting material: Cast iron
- Piston material: Phenolic
- Dust boots: High temperature EPDM rubber
- Integrated parking brake: No
- Condition: New
- Country of origin: China
In the box
One rear left brake caliper with new seals, caliper guide pins, dust boots and a bleeder screw. Brake pads, a mounting bracket, mounting bolts and caliper grease are not included, and the old bolts may not be reusable, so plan on new ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the L4753 among the 2000-2005 Ford Excursion calipers for the rear left side?
Yes. PowerStop L4753 is a rear left caliper for the 2000-2005 Ford Excursion; the rear right side takes a separate caliper.
Is this a 2000-2004 Ford F-250 Super Duty brake caliper for the rear left side?
Yes. PowerStop L4753 is listed for the rear left of the 2000-2004 Ford F-250 Super Duty, and the right side is ordered as its own part.
Do PowerStop brake calipers like this one come with pads or a bracket?
No. The L4753 comes with new seals, guide pins, dust boots and a bleeder screw. Brake pads, a mounting bracket, mounting bolts and caliper grease are not included.
What size are the pistons in this floating caliper?
This rear left caliper has two phenolic pistons with a piston diameter of 44.96 mm.
What thread does the inlet on the L4753 caliper use?
The inlet thread is 3/8 - 24, which is 0.375 in with 24 threads per inch.
