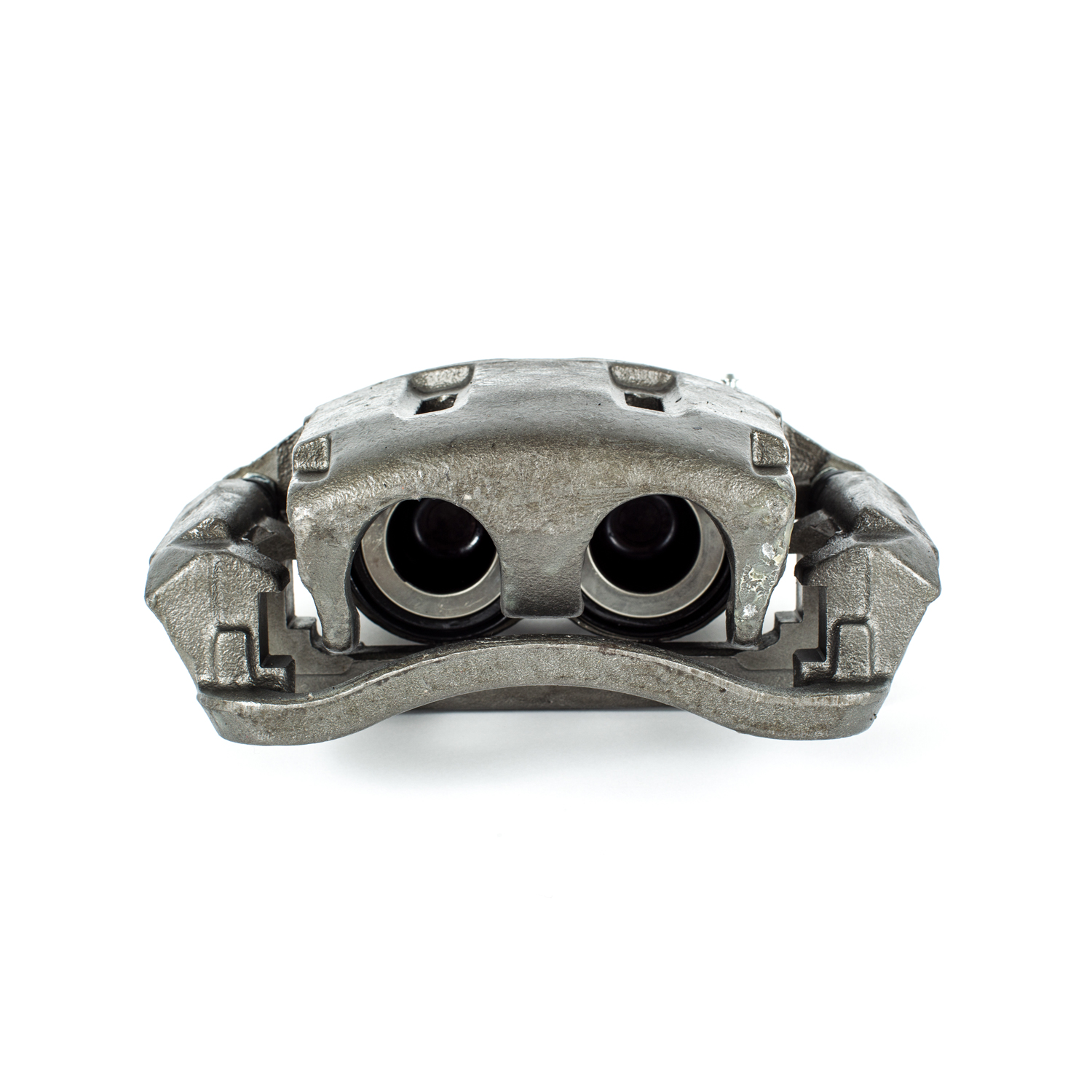

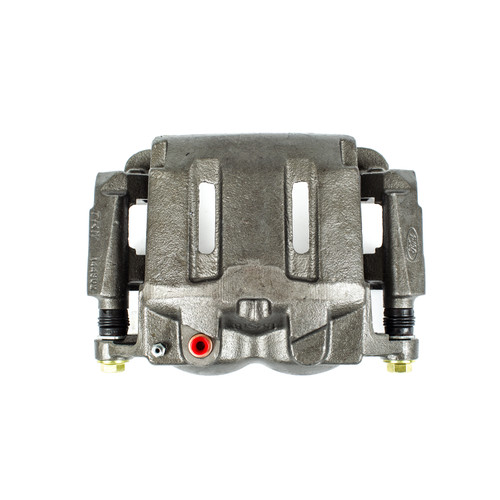

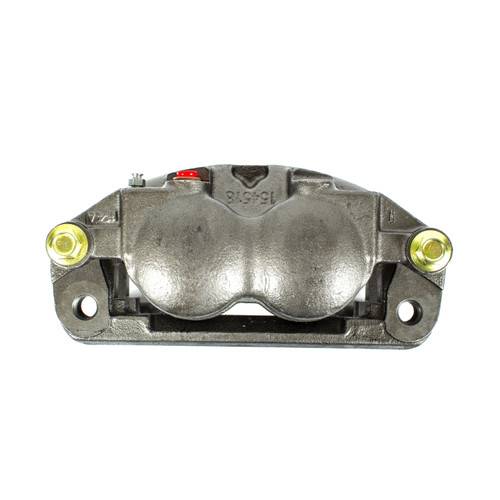

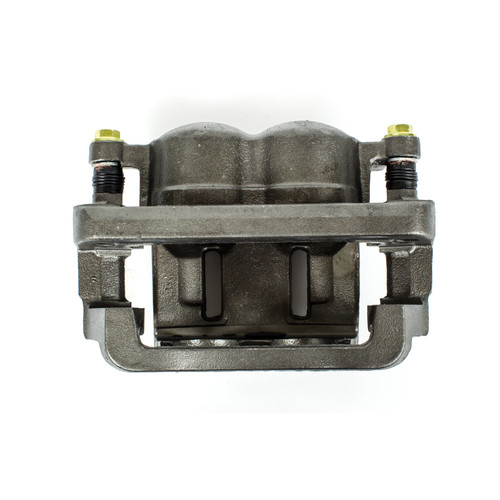

PowerStop L4996 front right brake caliper for the 2005-2012 Ford F-350 Super Duty and other vehicles squeezes the brake pads against the rotor to slow the wheel. It is a floating caliper with two pistons.
- Part of the Autospecialty by PowerStop replacement brake caliper line
- Bolt-on ready, with no modifications necessary
- 100% pressure tested and inspected
- Assembled with new seals, caliper guide pins and a bleeder screw
- High temperature EPDM rubber dust boots
- Assembly lubricant for smooth caliper operation and durability in harsh conditions
Quick facts
- Part: PowerStop L4996 brake caliper
- Also called: disc brake caliper
- Fits: 2005-2012 Ford F-350 Super Duty and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: New
A disc brake caliper that sticks or leaks may show up as the vehicle pulling to one side, brake fluid around the caliper or pads that wear unevenly. Before you replace the caliper, rule out worn pads, a damaged brake hose and a rotor problem, since any of those may produce a similar pull or drag.
Fits
This brake caliper for the 2005-2012 Ford F-350 Super Duty and the 2011-2012 Ford F-450 Super Duty covers one position on each vehicle: the front right. Calipers are normally replaced in pairs, so plan on the front left as well, which is a separate part; this listing is one caliper.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle position: 1
- Piston quantity: 2
- Piston diameter: 59.94 mm
- Bleeder screw thread: 3/8 - 24 (0.375 in diameter, 24 threads per inch)
- Inlet thread: 3/8 - 24 (0.375 in diameter, 24 threads per inch)
Build and materials
- Caliper type: Floating
- Caliper body material: Cast iron
- Piston material: Phenolic
- Integrated parking brake: No
- Condition: New
- Country of origin: China
In the box
One caliper. The mounting bracket, mounting hardware, mounting bolts, brake pads, caliper grease and a pad wear sensor are not included, so plan on new bolts instead of reusing the old ones.
Frequently Asked Questions
Will the PowerStop L4996 work as a brake caliper for the 2011-2012 Ford F-450 Super Duty?
Yes. PowerStop L4996 is a front right brake caliper for the 2011-2012 Ford F-450 Super Duty and for the 2005-2012 Ford F-350 Super Duty.
Does the L4996 caliper come with its bracket, pads and bolts?
No. PowerStop L4996 is the caliper only. The mounting bracket, mounting hardware, mounting bolts, brake pads and caliper grease are not included.
How big are the pistons on this floating caliper?
This caliper has two phenolic pistons, and the piston diameter is 59.94 mm.
Are PowerStop brake calipers like this one pressure tested?
Yes. This PowerStop L4996 caliper is 100% pressure tested and inspected, and it has high temperature EPDM rubber dust boots.
What thread size is the bleeder screw on this front right caliper?
The bleeder screw is 3/8 - 24, with a 0.375 in diameter and 24 threads per inch. The inlet uses the same 3/8 - 24 size.
