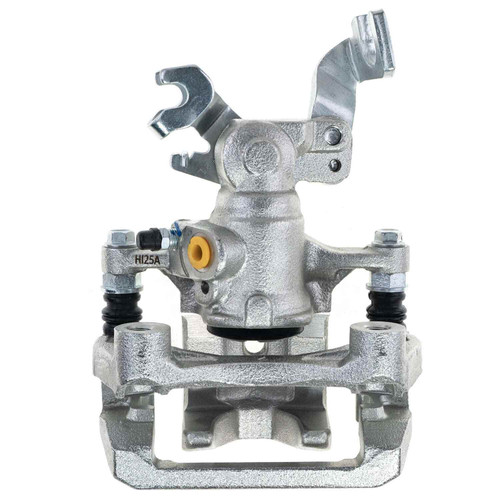

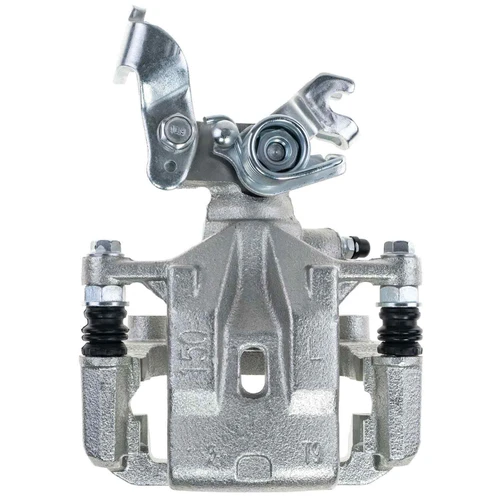

PowerStop L5002 rear left brake caliper for the 2006-2012 Ford Fusion and other vehicles squeezes the brake pads against the rotor to slow the wheel. This PowerStop brake caliper replaces the original stock caliper and has an integrated mechanical parking brake.
- Part of the Autospecialty by PowerStop replacement brake caliper line, sold individually
- 100% pressure tested and inspected for brake performance
- Assembled with new seals, guide pins, dust boots, bleeder screws and stainless-steel abutment hardware clips
- High temperature EPDM rubber dust boots
- Assembly lubricant used for smooth caliper operation and durability in harsh conditions
Quick facts
- Part: PowerStop L5002 brake caliper
- Also called: disc brake caliper
- Fits: 2006-2012 Ford Fusion and other vehicles
- Position: Rear left
- Material: Cast iron caliper casting, steel piston
- Condition: New
Before you replace this caliper, rule out a worn brake hose, sticking pads or a seized slide pin, since any of them can mimic a failing caliper. Pulling to one side, a parking brake that will not hold or a burning smell after driving can be signs the caliper is sticking.
Fits
This rear left brake caliper is a direct-fit part for the 2006-2012 Ford Fusion, the 2006-2013 Mazda 6 and the 2007-2012 Lincoln MKZ, plus other vehicles. Driving something not named here? Open the "Vehicles it fits" section and check your exact model and engine.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 for this side
- Piston diameter: 33.78 mm
- Pistons: 1
- Bleeder screws: 1
Build and materials
- Caliper type: Floating, with integrated mechanical parking brake
- Caliper casting material: Cast iron
- Piston material: Steel
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One rear left brake caliper with its caliper slides. Pads, the mounting bracket, mounting bolts, caliper grease and a pad wear sensor are not included, so plan on new mounting bolts rather than reusing the old ones. This listing holds one caliper and the rear left takes one; the rear right is a separate part ordered separately, and both sides are normally replaced together.
Installation notes
- Bolts on directly in place of the original stock caliper, with no modifications necessary.
Frequently Asked Questions
Is this Ford Fusion caliper the right one for a 2006-2012 model?
Yes. PowerStop L5002 is a rear left brake caliper for the 2006-2012 Ford Fusion. For another model, open the "Vehicles it fits" section and check your exact model and engine.
Is this the 2011 Ford Fusion rear brake caliper for both sides of the car?
No. PowerStop L5002 is the rear left side only; the rear right caliper is a separate part, and both sides are normally replaced together.
Does this disc brake caliper come with pads, a bracket or mounting bolts?
No. This caliper comes with its slides, new seals, guide pins, dust boots and a bleeder screw; pads, the mounting bracket, mounting bolts and caliper grease are not included.
What piston does the PowerStop L5002 caliper have?
The PowerStop L5002 is a floating caliper with one steel piston that measures 33.78 mm in diameter.
What should I look for on a worn rear left brake caliper?
Fluid around the dust boot, a torn boot or uneven pad wear can be signs of a failing caliper; check these during a brake service. Have the brakes inspected promptly rather than driving on.
