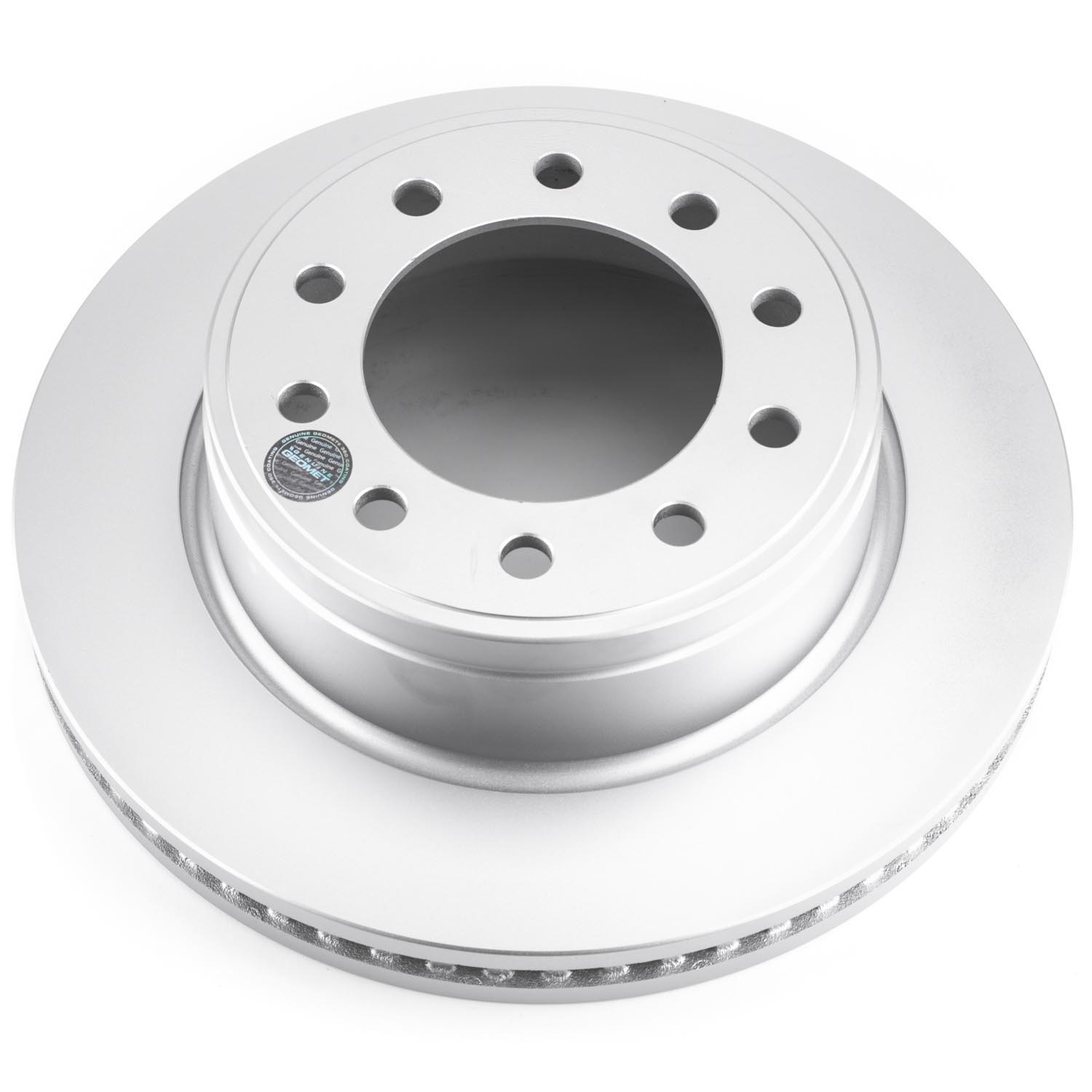

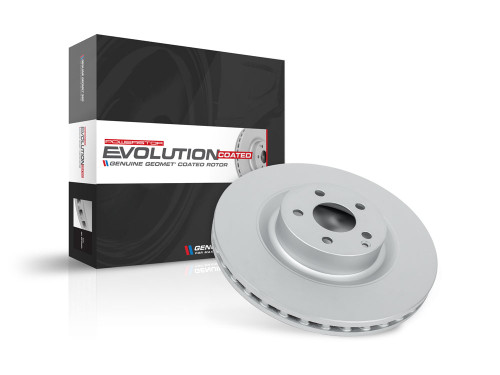

PowerStop AR83074EVC front brake rotor for the 2011-2024 Ram 4500 and other vehicles gives the brake pads a smooth surface to press against. This PowerStop brake rotor is a vented, full-cast design.

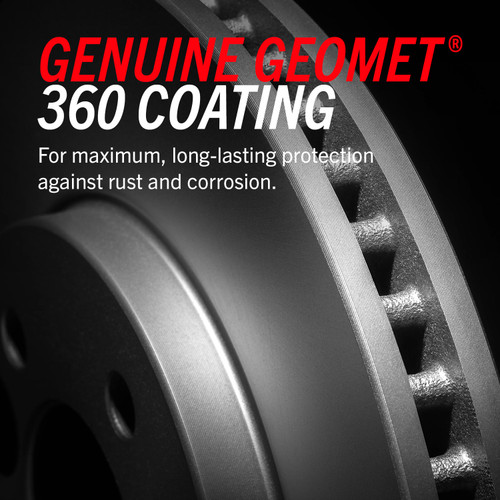

- PowerStop Evolution Coated rotors are fully coated with Genuine GEOMET 360 to protect against rust and corrosion
- Bolt-on installation with no modifications necessary
- Strict tolerances for DTV and runout for smooth, quiet performance
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop AR83074EVC brake rotor
- Also called: disc brake rotor
- Fits: 2011-2024 Ram 4500 and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, grooves on the rotor face or noise when braking can mean a worn rotor. A sticking caliper or worn brake pads can be behind these signs too, so work out which part is at fault before you buy a rotor.
Fits
This vented front rotor is a direct bolt-on replacement for the 2011-2024 Ram 4500, the 2011-2024 Ram 5500, the 2008-2010 Dodge Ram 4500 and many other vehicles. It is built to original equipment specifications for fitment, weight, vane count and performance. The front axle takes one rotor per side; this listing is a single rotor, and the other side of that axle is normally done at the same time. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2 (one on each side of the front axle)
- Outside diameter: 390.30 mm (15.37 in)
- Bolt circle diameter: 170.00 mm (6.69 in), 10 lug holes
- Overall height: 111.00 mm (4.37 in)
- Nominal thickness: 39.00 mm (1.54 in); discard thickness: 37.40 mm (1.47 in)
Build and materials
- Construction: vented, full cast
- Surface: smooth
- Coating: Genuine GEOMET 360 rust-resistant coating
- Balancing: 100% dynamic mill balanced
- ABS tone ring: not included
- Condition: new
- Country of origin: China
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the PowerStop AR83074EVC fit a 2011-2024 Ram 5500?
Yes. PowerStop AR83074EVC is a front rotor for the 2011-2024 Ram 5500, and it fits the 2011-2024 Ram 4500 as well, with one rotor on each side of the front axle.
Is this disc brake rotor vented or solid?
Vented. This front rotor is a full-cast vented design with a smooth surface, a 390.30 mm outside diameter and a 39.00 mm nominal thickness.
At what thickness should this rotor be replaced?
Replace this rotor at its discard thickness of 37.40 mm (1.47 in); a new rotor measures 39.00 mm (1.54 in). A shop can measure it during a brake service.
Do PowerStop front rotors like this one include an ABS tone ring?
No. The PowerStop AR83074EVC rotor does not include an ABS tone ring.
How is this rotor balanced and held to tolerance?
This rotor is 100% dynamic mill balanced and manufactured to strict tolerances for DTV and runout, for smooth, quiet performance.
