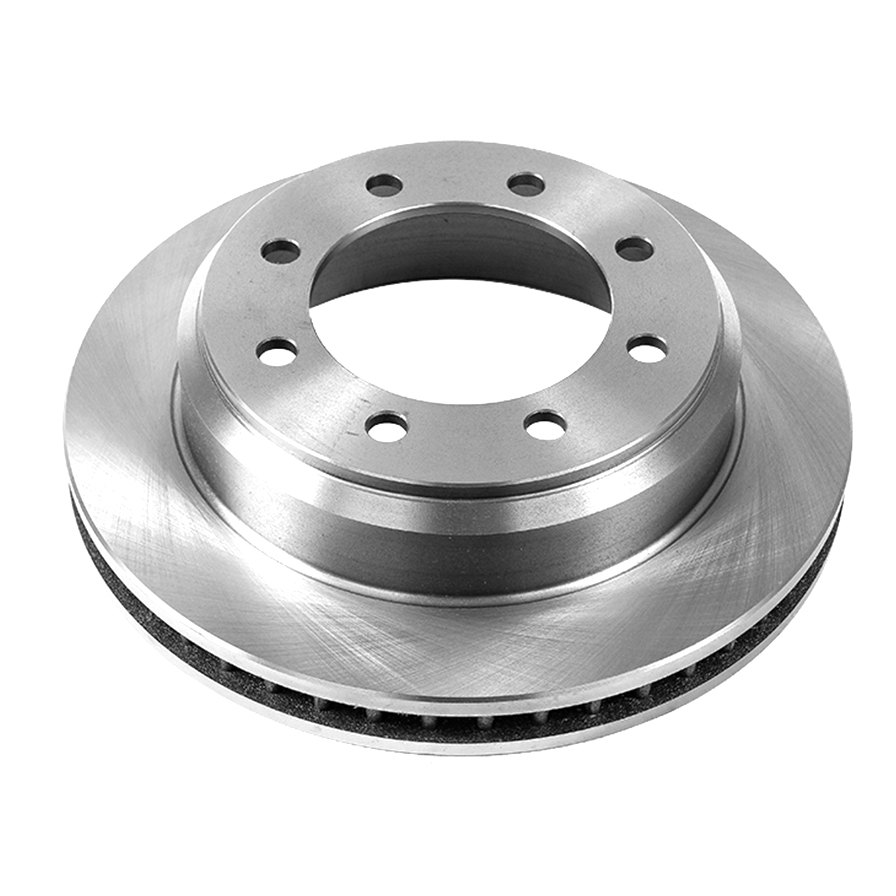

PowerStop AR85123 rear brake rotor for the 2008-2019 Ford E-350 Super Duty and other vehicles gives the brake pads a flat friction surface to clamp against and slow the wheel. This PowerStop brake rotor replaces a worn or grooved rotor on the rear axle.
- Power Stop Autospecialty line, standard replacement grade
- Bolt-on replacement that needs no modifications
- Manufactured to strict tolerances for DTV and runout for smooth, quiet performance
- Cross-hatched finish on the friction surface for pad break-in
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop AR85123 brake rotor
- Also called: disc brake rotor
- Fits: 2008-2019 Ford E-350 Super Duty and other vehicles
- Position: Rear
- Condition: New
A pulsing brake pedal, vibration under braking or visible grooves on the friction surface can mean a rotor is worn. Those symptoms can trace to other brake parts too, so during a brake service with the wheel off, look the rotor over for grooves and cracks and measure its thickness against the discard thickness before replacing it.
Fits
This is a direct-fit rear brake rotor for the 2008-2019 Ford E-350 Super Duty, the 2017-2018 Ford E-450 Super Duty and the 2008-2014 Ford E-150, with weight and vane count that follow the original equipment design. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one rear rotor; the other rear rotor on the axle is normally replaced at the same time.
Specifications
Fit and size
- Position: Rear
- Outside diameter: 345.00 mm (13.58 in)
- Bolt circle: 165.10 mm (6.50 in), 8 lug holes
- Overall height: 90.50 mm (3.56 in)
- Nominal thickness: 36.00 mm (1.42 in)
- Discard thickness: 34.40 mm
Build and materials
- Construction: Vented, full cast
- Grade: Standard replacement
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One rear brake rotor, sold individually. The vehicle takes two.
Frequently Asked Questions
Is the PowerStop AR85123 one of the 2008-2014 Ford E-150 brake rotors for the rear axle?
Yes, PowerStop AR85123 is a rear brake rotor listed for the 2008-2014 Ford E-150, which takes two. Open the "Vehicles it fits" section for other models and engines.
Are PowerStop brake pads and rotors included together in this listing?
No. This listing is one PowerStop AR85123 rear brake rotor only; brake pads are a separate part and are not included.
What does the cross-hatched surface do when rotors and pads are installed together?
The cross-hatched finish on this rotor's friction surface is made for optimal pad break-in.
What is the discard thickness for this rear rotor?
Nominal thickness is 36.00 mm (1.42 in) and discard thickness is 34.40 mm. Measure during a brake service with the wheel off; a rotor at or below 34.40 mm is worn out.
Is this disc brake rotor vented or solid?
It is vented: PowerStop AR85123 is full cast, with 8 lug holes on a 165.10 mm (6.50 in) bolt circle, and the ABS tone ring is not included.
