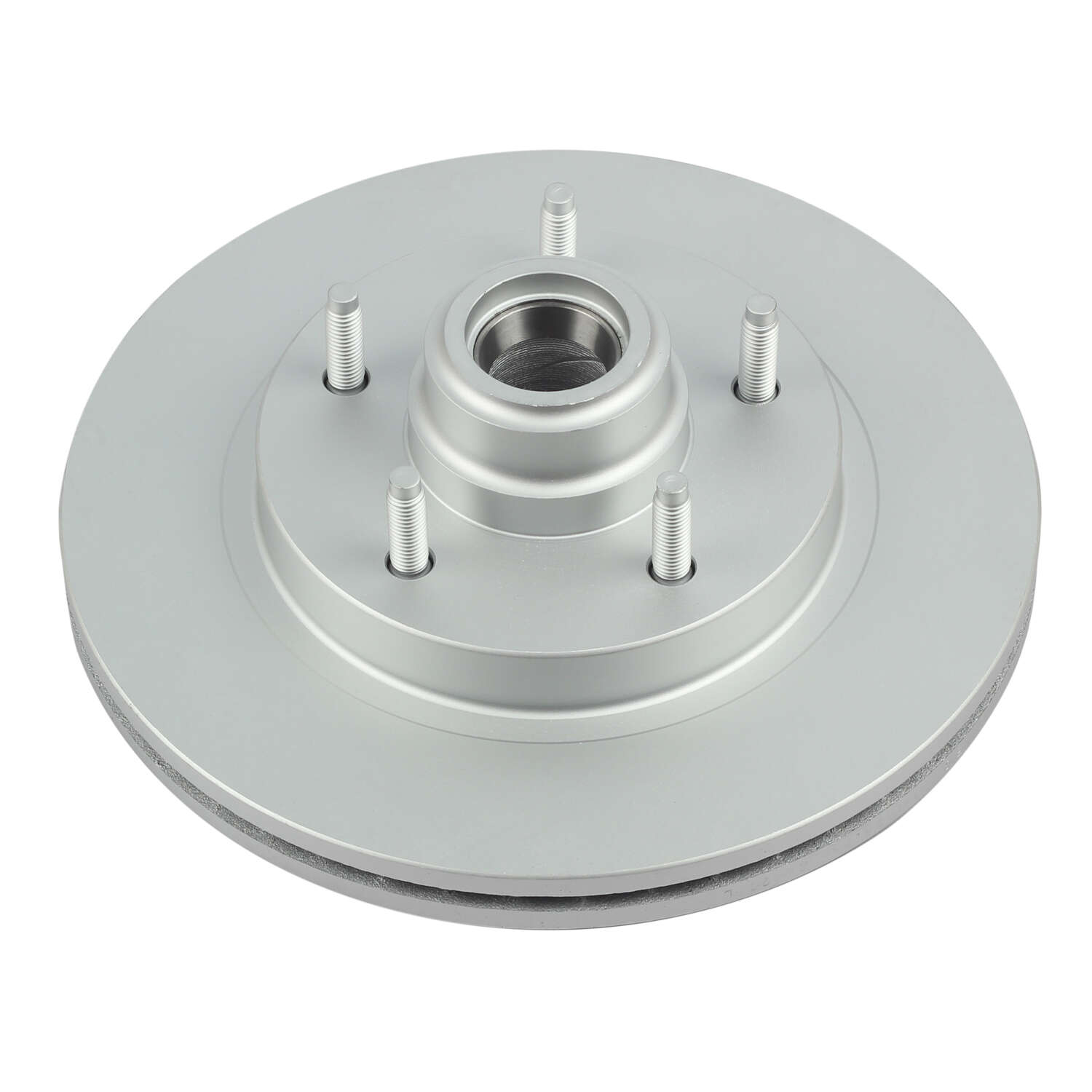

PowerStop AR8556EVC front brake rotor for the 1997-1999 Ford F-150 is the vented disc the brake pads clamp to slow the truck. This PowerStop brake rotor spins with the wheel while the pads squeeze it to create stopping friction.
- Part of the PowerStop Evolution Coated rotor line
- Fully coated with Genuine GEOMET 360 to protect against rust and corrosion
- Held to strict DTV and runout tolerances for smooth, quiet performance
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop AR8556EVC brake rotor
- Also called: disc brake rotor
- Fits: 1997-1999 Ford F-150
- Position: Front
- Condition: New
Pedal pulsation, vibration under braking, deep grooves or heavy rust on the rubbing surface can mean a disc brake rotor is worn. Pads, calipers and wheel bearings can cause similar signs, so find the cause before replacing the rotor. During a brake service with the wheel off, measure the thickness and compare it with the discard thickness below.
Fits
The rotor is a direct bolt-on replacement for the 1997-1999 Ford F-150, with no modifications necessary. Its weight, vane count and fit follow original equipment specifications.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 308 mm (12.13 in)
- Bolt circle: 133.40 mm (5.25 in), 5 lug holes
- Overall height: 105.70 mm (4.16 in)
- Nominal thickness: 26.00 mm (1.02 in)
- Discard thickness: 24.70 mm (0.97 in)
Build and materials
- Type: Vented, full cast
- Surface: Smooth
- Coating: Genuine GEOMET 360 rust-resistant coating
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One front brake rotor built as a hub and rotor assembly, with bearing races included and the bearing not included. This listing is one rotor, and the 1997-1999 Ford F-150 takes two at the front, so both sides are normally replaced together.
Frequently Asked Questions
Are these front brake rotors for the 1997-1999 Ford F-150 a direct bolt-on fit?
Yes. PowerStop AR8556EVC is a direct bolt-on replacement for the 1997-1999 Ford F-150, and no modifications are necessary.
Is the bearing included with this rotor?
No. PowerStop AR8556EVC includes the bearing races, but the bearing is not included. The ABS tone ring is not included either.
Are these PowerStop front rotors vented or solid?
These front rotors are vented, with full-cast construction and a smooth surface. Outside diameter is 308 mm (12.13 in), with 5 lug holes.
At what thickness should I replace this rotor?
Discard thickness is 24.70 mm (0.97 in), and a new rotor measures 26.00 mm (1.02 in). A rotor worn down to the discard thickness is due for replacement.
What does the GEOMET 360 coating protect on this rotor?
The rotor is fully coated with Genuine GEOMET 360 to protect against rust and corrosion, without influencing braking performance.
