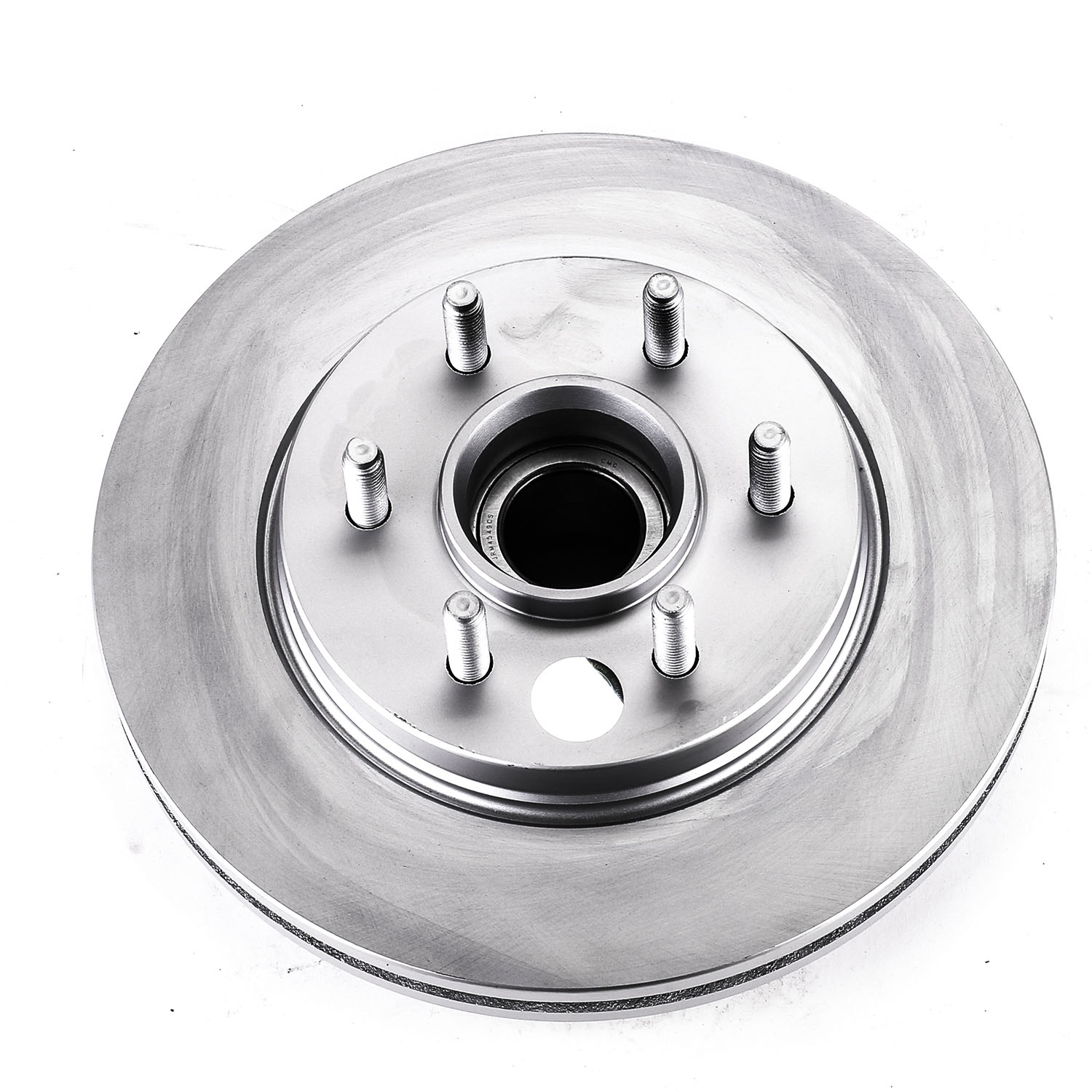

PowerStop AR8594EVC front brake rotor for the 2004-2008 Ford F-150 and other vehicles gives the pads a fully coated disc to clamp against. It is a hub and rotor assembly with a sealed bearing included.
- Evolution Coated rotor with Genuine GEOMET 360 to protect against rust and corrosion without changing braking performance
- 100% dynamic mill balanced
- Strict tolerances for DTV and runout for smooth, quiet performance
- Bolt-on design that needs no modifications
Quick facts
- Part: PowerStop AR8594EVC brake rotor
- Also called: disc brake rotor
- Fits: 2004-2008 Ford F-150 and other vehicles
- Position: Front
- Condition: New
A pulsing pedal, grooves or a lip on the disc, or a grinding noise can mean this disc brake rotor is worn, though a sticking caliper or worn pads can also be behind them, so find the cause before replacing it.
Fits
Made to original equipment specifications for fitment, weight, vane count and performance, it fits the 2004-2008 Ford F-150 and the 2006-2007 Lincoln Mark LT, which take one rotor on each side of the front axle. This listing is one side, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity: one per side of the front axle
- Outside diameter: 330.00 mm (12.99 in)
- Bolt circle: 134.90 mm (5.31 in), 6 lug holes
- Nominal thickness: 30.00 mm (1.18 in)
- Discard thickness: 28.50 mm (1.12 in)
- Overall height: 92.20 mm (3.63 in)
Build and materials
- Type: Vented, full cast
- Surface: Smooth
- Coating: Genuine GEOMET 360 rust-resistant coating
- ABS tone ring: included
- Balancing: 100% dynamic mill balanced
- Condition: New
- Country of origin: China
In the box
One front brake rotor built as a hub and rotor assembly, with a sealed bearing and the ABS tone ring included.
Frequently Asked Questions
Is this one of the F-150 brake rotors that fits 2004-2008 models?
Yes. PowerStop AR8594EVC is a front rotor for the 2004-2008 Ford F-150, and it also fits the 2006-2007 Lincoln Mark LT.
Do PowerStop front rotors like this one include the wheel bearing?
Yes. PowerStop AR8594EVC is a hub and rotor assembly, and a sealed bearing is included along with the ABS tone ring.
Is this PowerStop brake rotor coated all over?
Yes. It is fully coated with Genuine GEOMET 360, a rust-preventative coating, and the disc is a vented, full-cast design with a smooth surface.
At what thickness is this rotor worn out?
Nominal thickness is 30.00 mm (1.18 in) and discard thickness is 28.50 mm (1.12 in). Measure the cool rotor; at or below 28.50 mm it has reached its limit.
How is the Evolution Coated rotor balanced and held to tolerance?
The rotor is 100% dynamic mill balanced and made to strict tolerances for DTV and runout, which is meant for smooth, quiet performance.
