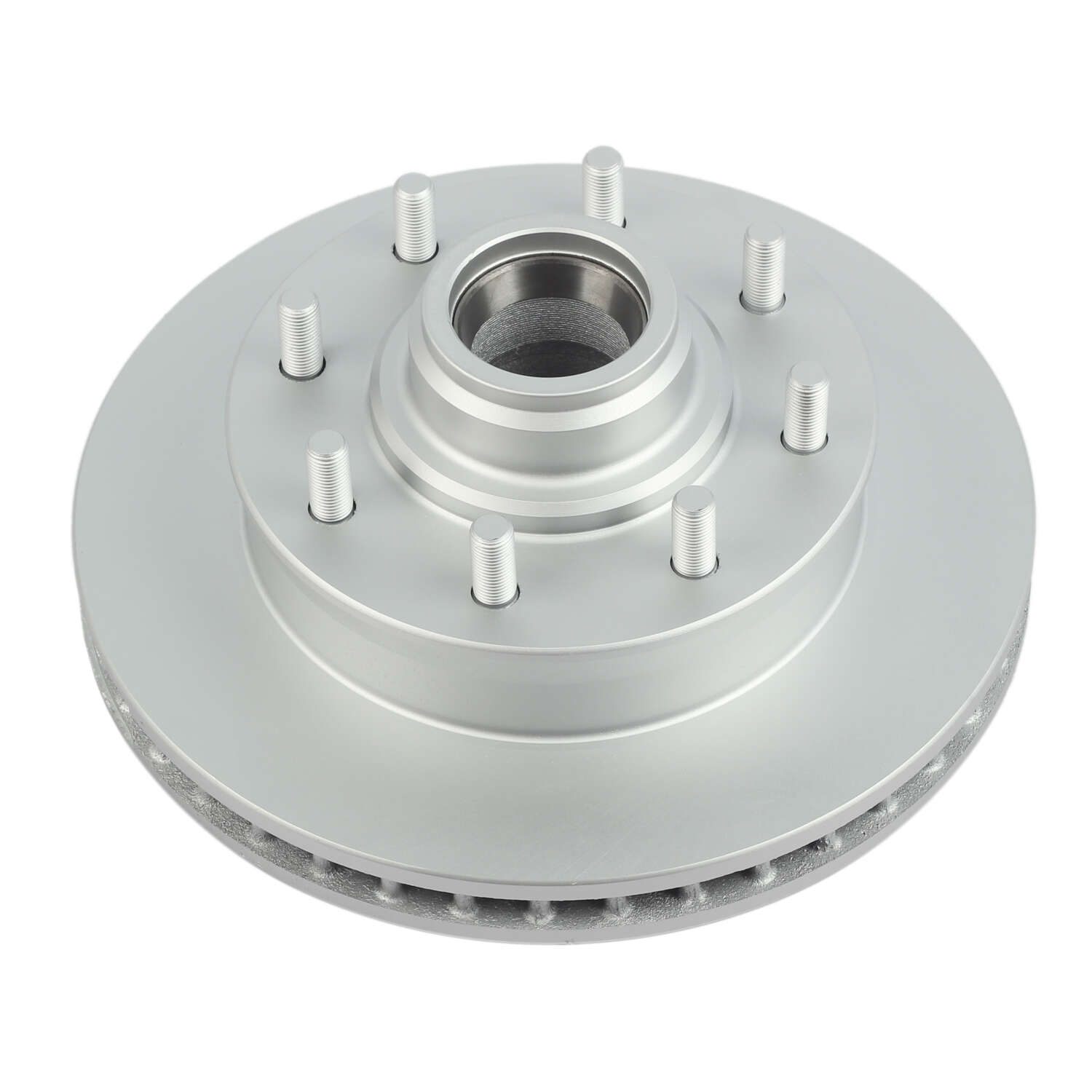

PowerStop AR8627EVC front brake rotor for the 1996-2002 Chevrolet Express 2500 and other vehicles is the disc the pads clamp against to slow the vehicle. This PowerStop brake rotor is a direct bolt-on replacement built to original equipment specifications for fitment, weight and vane count.

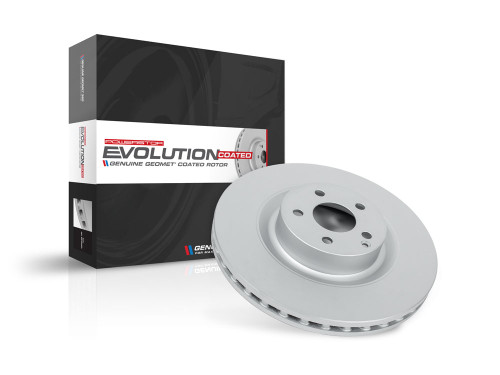

- PowerStop Evolution Coated rotors are fully coated with Genuine GEOMET 360 for rust and corrosion protection
- Genuine GEOMET 360 goes on as a thin layer that does not influence braking performance
- Strict DTV and runout tolerances for smooth, quiet performance
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop AR8627EVC brake rotor
- Also called: disc brake rotor
- Fits: 1996-2002 Chevrolet Express 2500 and other vehicles
- Position: Front
- Condition: New
Pulsation in the pedal, noise when braking or a pull to one side can mean the rotor is worn, though worn pads or a sticking caliper can also be behind those signs.
Fits
It fits the 1996-2002 Chevrolet Express 2500, the 1996-2002 GMC Savana 2500 and the 1996-2001 Chevrolet Express 3500, plus many other Chevrolet and GMC models. This listing is one rotor, and the 1996-2002 Chevrolet Express 2500 takes two, so both front sides are normally replaced together. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front
- Outside diameter: 317 mm (12.48 in)
- Bolt circle: 165.10 mm (6.50 in), 8 lug holes
- Overall height: 125.90 mm (4.96 in)
- Nominal thickness: 32.70 mm (1.29 in)
- Discard thickness: 30.80 mm (1.21 in)
Build and materials
- Type: Vented, full cast
- Surface: Smooth
- Coating: Genuine GEOMET 360 rust preventative coating
- ABS tone ring: included
- Balance: 100% dynamic mill balanced
- Condition: New
- Country of origin: China
In the box
One front brake rotor, a hub/rotor assembly with bearing races included. The bearing is not included.
Installation notes
- Bolt-on replacement; no modifications necessary.
Frequently Asked Questions
Will these Chevy Express 3500 brake rotors fit a 1996-2001 Chevrolet Express 3500?
Yes. PowerStop AR8627EVC is a front brake rotor for the 1996-2001 Chevrolet Express 3500, which takes two; each listing is one rotor.
Are PowerStop front rotors like this one right for the 1996-2002 GMC Savana 2500?
Yes. PowerStop AR8627EVC is a front rotor for the 1996-2002 GMC Savana 2500, which takes two; for other models, open the "Vehicles it fits" section.
Does this PowerStop brake rotor come with the wheel bearing?
No. The bearing races are included, but the bearing is not, and this PowerStop AR8627EVC listing is one front brake rotor.
Is this disc brake rotor vented or solid?
This rotor is vented with full-cast construction and a smooth surface. It measures 317 mm across and has a Genuine GEOMET 360 coating.
At what thickness should this rotor be replaced?
The discard thickness is 30.80 mm (1.21 in), against a nominal thickness of 32.70 mm. A rotor at or below 30.80 mm is due for replacement, which a shop can confirm during a brake service.
