PowerStop JBR1592EVC front brake rotor for the 2016-2023 Chevrolet LCF 3500 and other vehicles gives the brake pads a smooth surface to clamp against. This PowerStop brake rotor, also called a disc brake rotor, bolts on with no modifications.

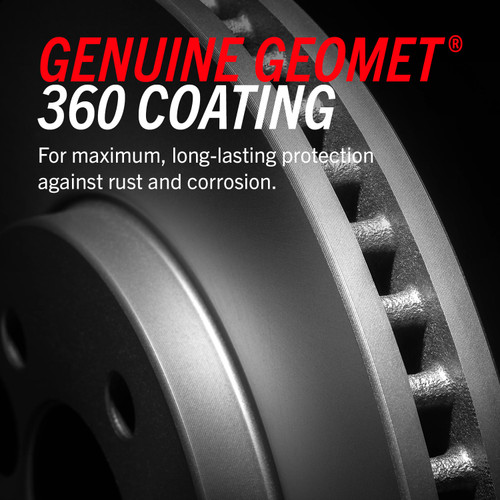

- PowerStop Evolution Coated rotors have a full rust-preventative coating that does not change braking performance
- Vented, full-cast construction with a smooth surface
- Made to strict DTV and runout tolerances for smooth, quiet braking
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop JBR1592EVC brake rotor
- Also called: disc brake rotor
- Fits: 2016-2023 Chevrolet LCF 3500 and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, vibration under braking or deep grooves in the rotor face can mean the rotor is worn. These signs alone do not prove the rotor is the problem, since a sticking caliper can also make the brakes pulse.
Fits
The 2016-2023 Chevrolet LCF 3500, the 2016-2023 Chevrolet LCF 4500 and the 2017-2023 Chevrolet LCF 4500HD take this rotor, along with other Chevrolet, GMC and Isuzu trucks. It is a direct bolt-on replacement made to original equipment specifications for fit, weight and vane count. This listing is one front rotor, and the other side of the axle is normally done at the same time. Look up your own truck by year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 293.4 mm (11.6 in)
- Bolt circle: 136 mm (5.4 in), 12 stud/lug holes
- Nominal thickness: 40 mm (1.6 in)
- Discard thickness: 37 mm (1.5 in)
- Overall height: 57.4 mm (2.3 in)
Build and materials
- Type: Vented, full cast
- Surface: Smooth
- Rust-resistant coating: Yes
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One front brake rotor; the vehicle takes two for the front axle. The ABS tone ring is not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Will the PowerStop JBR1592EVC front brake rotor fit a 2016-2023 Chevrolet LCF 4500?
Yes. The PowerStop JBR1592EVC is listed for the 2016-2023 Chevrolet LCF 4500 and the 2017-2023 Chevrolet LCF 4500HD. Other trucks are in the "Vehicles it fits" section.
Do these PowerStop front rotors include the ABS tone ring?
No. The PowerStop JBR1592EVC listing does not include the ABS tone ring.
How thin can this vented rotor get before it needs replacing?
The nominal thickness is 40 mm (1.6 in) and the discard thickness is 37 mm (1.5 in). A rotor measured at 37 mm or less is due for replacement.
How can I tell this front rotor is worn?
A pulsing pedal, vibration when braking or visible grooves can mean the rotor is worn. A shop can measure it against the 37 mm discard thickness.
Is this rotor balanced and held to tight tolerances?
Yes. It is 100% dynamic mill balanced and made to strict DTV and runout tolerances for smooth, quiet braking.
