Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

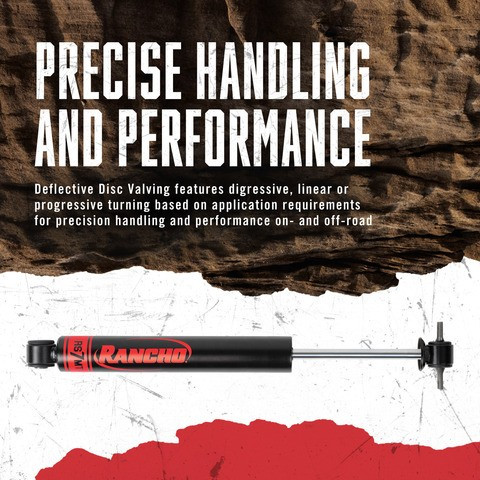

PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road

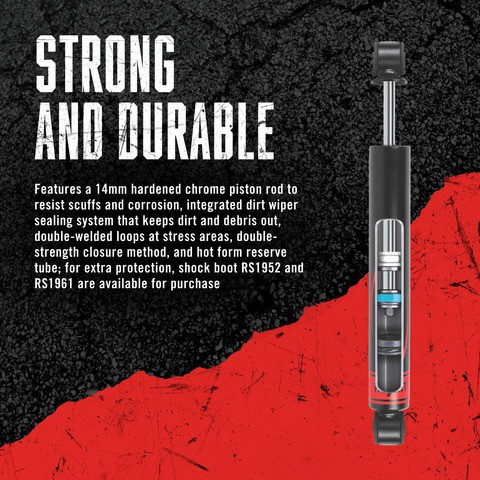

STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube

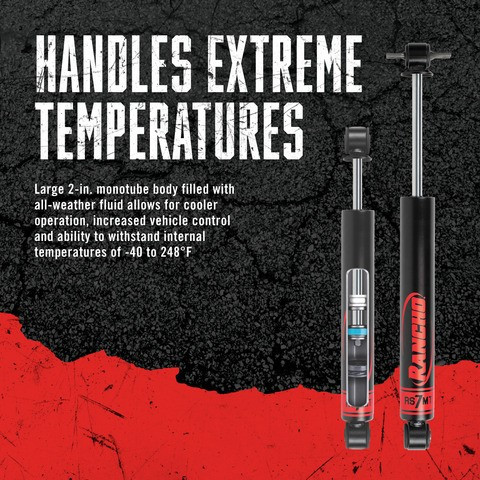

HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade

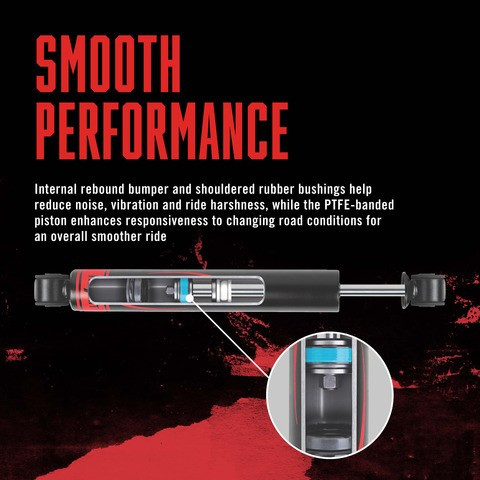

SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961
BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RS7MT Amortisseur
RS7MT Amortiguador
RS7MT Suspension Shock Absorber
Rancho RS7MT RS77328 Amortisseur pour Jeep Wrangler
Rancho RS7MT RS77328 Amortiguador para Jeep Wrangler
Rancho RS7MT RS77328 Suspension Shock Absorber for Jeep Wrangler
Name | Value |
---|---|
Body Diameter (Millimeter) | 50 |
Boot Included | No |
Short Description | Shock Absorber |
Short Description | Telescopic |
Coil Over Springs Included | No |
Color | Black |
Color | 8.25 |
Shock Stroke (Millimeter) | 209.6 |
Cylinder Outside Diameter (Inch) | 1.97 |
Cylinder Outside Diameter (Millimeter) | 50 |
Body Material | Steel |
Cylinder Material | Steel |
Cylinder Color | Black |
Cylinder Finish | Painted |
Rod Diameter (Inch) | 0.5511811023622047 |
Shaft Material | Chromed |
Shock Absorber Bore Size (Inch) | 1.8110236220472442 |
Active or Passive Suspension | Passive |
Adjustable Compression | No |
Adjustable Rebound | No |
Valving Type | Progressive |
Self-Leveling | No |
Adjustable Ride Height | No |
Maximum Ride Height Lowering Distance (Inch) | 0 |
Maximum Ride Height Raising Distance (Inch) | 0 |
Bladder(s) Included | No |
Bladder Sleeve(s) Included | No |
Bladder Heavy Duty Crimping Rings Included | No |
Coil Spring Insulator(s) Included | No |
Remote Reservoir | No |
Strut Mount Insulator(s) Included | No |
Air Adjustable | No |
Air Ride Suspension | No |
New Or Remanufactured | New |
Bearing Plate Included | No |
Spring Included | No |
Spring Isolators Included | No |
Spring Seat Included | No |
Hazardous Material | No |
Minimum Order Quantity | 1 |
Country of Origin | Poland |
Weight - Each (Gross Pounds) | 5.9100 |
Weight - Case (Gross Pounds) | 23.6400 |
Height - Each (Inch) | 24.2500 |
Height - Case (Inch) | 24.5000 |
Length - Each (Inch) | 3.3100 |
Length - Case (Inch) | 6.7500 |
Width - Each (Inch) | 4.3100 |
Width - Case (Inch) | 8.7500 |
Total Part VIO" RecordNumber="1 | No |
Compressed Length (Inch) | 15.62 |
Body Type | 23.87 |
Gas Charged | Yes |
Travel Length (Inch) | 8.25 |
Shock Absorber Body End Measuring Point | Center of Cross Pin |
Shock Absorber Body End Measuring Point | None |
Shock Absorber Rod End Measuring Point | Center of Loop |
Shock Absorber Rod End Measuring Point | Single Tube |
Body Color | Black |
Lower Mount Code | LS38 |
Adjustable | No |
Adjustable | XP12 |
Dust Shield Material | Performance |
Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL |
Lower Mount Type | 1.97 |
Free Height - MM | No |
Type of Finish | No |
Upper Mount Type | Cross Pin Mount - Open Ended, 3/8 Hole ID (Both Ends) X 3.3/16 Pin Length (Hole Center to Center) |
Life Cycle Status | Available to Order |
Upper Mount Type | No |
Upper Mount Type | Yes |
Item Level GTIN | 00039703011822 |
Finish | Painted |
Quantity Per Application | 2 |
Shock Absorber Bore Size (Millimeter) | 46 |
Rod Diameter (Millimeter) | Amortisseur |
Rod Diameter (Millimeter) | 14 |
Short Description (Spanish) | Amortiguador |
Compressed Length (Millimeter) | 396.7 |
Extended Length (Millimeter) | 606.3 |
Travel Length (Millimeter) | 209.6 |
Make | Model | Year | Engine | Type |
---|---|---|---|---|
JEEP | WRANGLER | 17-07 | All | Suspension Shock Absorber - REAR |
JEEP | WRANGLER JK | 2018 | All | Suspension Shock Absorber - REAR |
