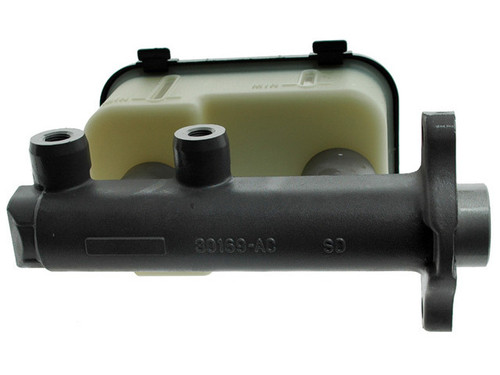

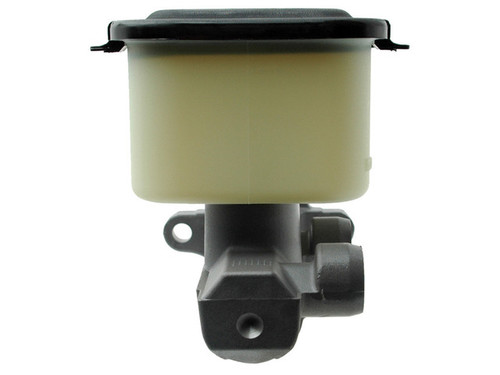

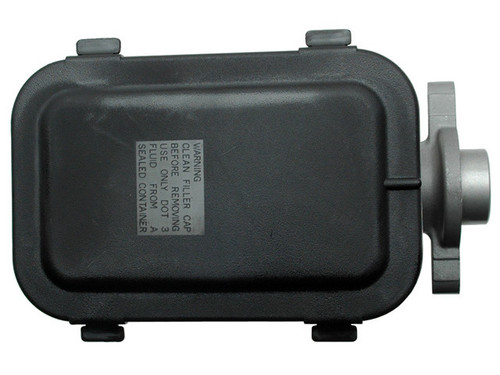

Turn pedal effort into the hydraulic pressure that feeds both brake circuits with the Raybestos Element3 Brake Master Cylinder MC390363. It drops in as a direct-fit replacement for the 1996-2002 Chevrolet Express 1500 and 2500 and the 1996-2002 GMC Savana 1500 and 2500 [All engines], built to the OE fit, form, and function so it mounts and plumbs like the original.
- OE fit, form, and function: engineered to fit each listed application like the factory unit, with materials matching OE specifications and vehicle-specific designs.
- Aluminum body: aluminum master cylinder with two outlet ports — primary 9/16-18 and secondary 1/2-20 — and two mounting holes measuring 0.433 in.
- Pressure tested: 100% end-of-line pressure tested for consistent, safe, reliable operation.
- Ready to install: includes the reservoir and cap, and ships ready to bench bleed and install with no assembly required.
Sensor, bleeder hoses, and brake booster are not included. Country of origin: China. If a failed master cylinder is the cause of a sinking pedal or poor braking, this unit replaces it — diagnose the cause before replacing.
Interchange: MCA390363 · 83-44036 · 8344036 · NM3035 · M86036 · 13273 · MC252160 · NMC21934 · 10-2763 · 102763 · 13-2763 · 132763 · M3314 · 130.66036 · 13066036 · 131.66036 · 13166036 · MC625 · M390363 · 18029955 · 18060791 · 19209267 · CM2155 · 66-93-035 · 6693035 · F140292 · MC140292 · Manufacturer part number MC390363.
This part cross-references / interchanges with the following part numbers:
MCA390363, 83-44036, NM3035, M86036, 13273, MC252160, NMC21934, 10-2763, 13-2763, M3314, 130.66036, 131.66036, MC625, M390363, 18029955, 18060791, 19209267, CM2155, 66-93-035, F140292, MC140292
