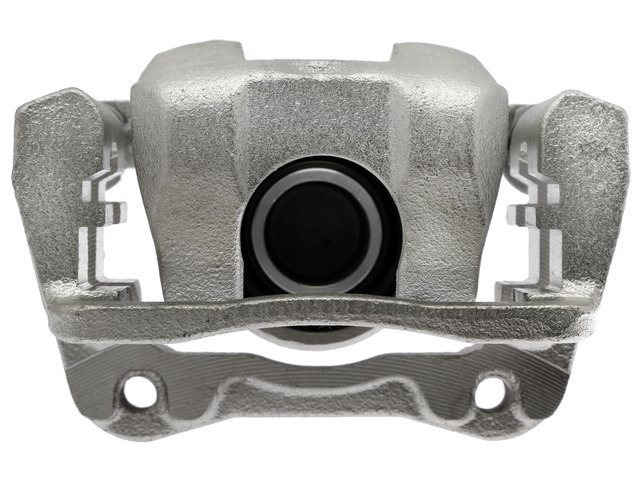

Bring firm, even braking back to the rear left corner with the Raybestos Brakes Element3 New Semi-Loaded Disc Brake Caliper and Bracket Assembly (MPN FRC11286N). Hydraulic pressure drives the caliper piston to clamp the brake pads against the rotor, slowing the wheel; this unit installs as a direct-fit rear-left replacement for the 2001-2006 Acura MDX [All] and the 2003-2008 Honda Pilot [All].
- OE Engineered Design: precision engineered to meet OE performance and durability, covering popular, high-replacement applications.
- Zinc Plating: zinc plating on the cast iron housing and bracket delivers strong corrosion resistance in harsh conditions.
- Surface Finish: meets 96-hour salt spray corrosion resistance to ASTM B-117 test standards.
- 100% New Components: newly manufactured throughout, not remanufactured.
It's a floating-type caliper with a cast iron housing, a 1.496 in (38 mm) piston, an M10x1 bleeder screw, and 10 mm bracket mounting holes with a 1.25 mm thread pitch. Ships as a semi-loaded caliper and bracket assembly. Country of origin: China.
Interchange: 19-B2675 · 19B2675 · 99-01015B · 9901015B · 19-P2675 · 19P2675 · 141.40514 · 142.40514 · SC3807 · 43019S3VA00 · 43019S3VA00RM · 14-5166 · 145166
Manufacturer part number FRC11286N.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Which vehicles does this caliper fit?
It's a direct-fit rear-left replacement for the 2001-2006 Acura MDX [All] and 2003-2008 Honda Pilot [All]. See the Buyer's Guide tab to confirm your vehicle.
What does this caliper do?
Hydraulic pressure pushes the piston to clamp the brake pads against the rotor, slowing the wheel. This floating-type unit mounts at the rear left corner.
Is this a new or remanufactured caliper?
It's built from 100% new components, newly manufactured throughout rather than remanufactured.
What are the piston size and bleeder screw thread?
The caliper piston measures 1.496 in (38 mm) and the bleeder screw thread is M10x1.
Should I replace both rear calipers at once?
For balanced braking it's best practice to service both sides of the axle together. This listing is for one caliper; order two if you're replacing the pair.
