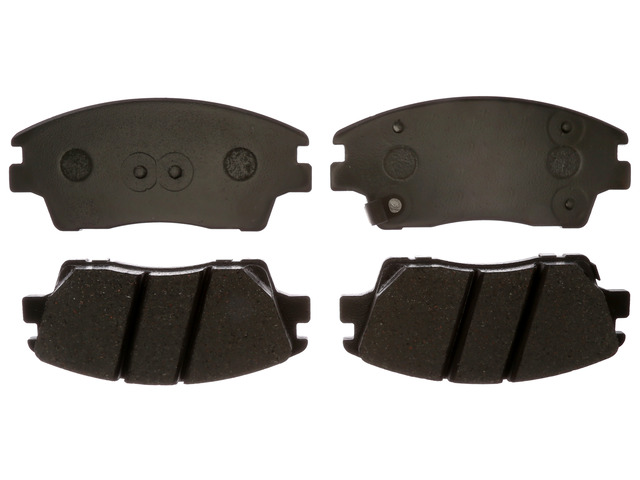

Raybestos Brakes MGD1847CH front brake pad for the 2017-2020 Hyundai Elantra and other vehicles is a pad set from the Raybestos R-Line series that gives reliable stopping power for everyday braking.
- Broad coverage for cars, vans, SUVs and light trucks
- Ceramic friction material, consistent with OE fit, form and function
- Multi-layered steel shims for noise damping
- Slots and chamfers match the OE design, for less noise, vibration and harshness
Squealing or grinding when you brake, or longer stops, can mean the pads are worn. Rotors and calipers can produce similar symptoms, so with the engine off, look at how much friction material is left and at the rotor face before you replace anything. This listing is one pad set, and the pads on both sides of an axle are normally replaced together.
This disc brake pad set also fits the 2016-2021 Hyundai Tucson and the 2017-2022 Kia Sportage.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 1
- Inner and outer pad height: 2.402 in
- Inner and outer pad width: 5.539 in
- Inner and outer pad overall thickness: 0.661 in
Build and materials
- Friction material: ceramic
- Shims: multi-layered steel, noise dampening
- Mounting hardware: included
- Country of origin: Mexico
In the box
One brake pad set with mounting hardware.
Interchange / FMSI:
FMSI: D1847
Interchange: 105.1847 · 105.18470 · 301.18470 · 500.18470 · 17-1847 · ALD1847C · GNAD1847 · PXD1847H · SC1847 · P30096N · 58101D3A00 · 58101D3A10 · 58101D3A11 · 58101D7A10 · 58101F2A50 · 58101D9A00 · OEX1847 · QC1847 · ZD1847
This part cross-references / interchanges with the following part numbers:
ALD1847C, GNAD1847, PXD1847H, D1847, SC1847, P30096N, 105.1847, 105.18470, 301.18470, 500.18470, 58101D3A00, 58101D3A10, 58101D3A11, 58101D7A10, 58101F2A50, 58101D9A00, 17-1847, OEX1847, QC1847, ZD1847
