Rear Brake Pad for 2021-2025 Ford F-150 & More - Raybestos MGD2383CH

$50.99
WARNING:California Proposition 65▾
Raybestos Brakes Disc Brake Pad Set MGD2383CH
Raybestos Brakes Disc Brake Pad Set MGD2383CH

Vehicles this part fits
    Part number: MGD2383CH
    UPC: 887213399547
    Condition: New
    Weight: 3.45 LBS
    Item Package Quantity: 1
    $50.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

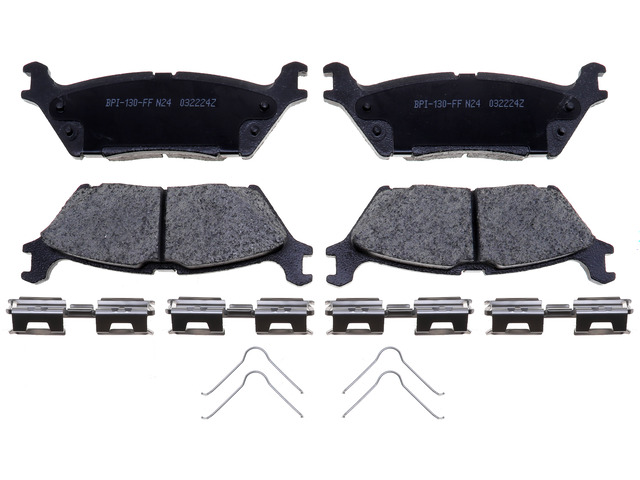

    Raybestos Brakes Disc Brake Pad Set P/N:MGD2383CH
    Raybestos Brakes Disc Brake Pad Set P/N:MGD2383CH
    $50.99
    $50.99

    Raybestos MGD2383CH rear brake pad for the 2021-2025 Ford F-150 and other vehicles is a ceramic pad from the R-Line series, made for everyday braking.

    • R-Line series: Raybestos pads with broad coverage for cars, vans, SUVs and light trucks.
    • Ceramic friction material, integrally molded.
    • Multi-layered steel shims for noise damping.
    • Slots and chamfers match the OE design, for less noise, vibration and harshness.

    Squealing or grinding when you brake, a longer stop or a pull to one side can mean the pads are worn. Before you replace them, rule out a sticking caliper or a damaged rotor, since either can produce similar noise and pulling.

    This disc brake pad set also fits the 2023 Ford Expedition and the 2024 Lincoln Navigator, with one set needed per vehicle.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 1 set
    • Pad width: 5.870 in (inner and outer)
    • Pad height: 2.070 in (inner and outer)
    • Pad thickness: 0.635 in (inner and outer)

    Build and materials

    • Friction material: ceramic
    • Friction material attachment: integrally molded
    • Slotted, with chamfered edges
    • Wear sensor: none
    • Country of origin: India

    In the box

    Mounting hardware is included. Brake lubricant is not included.

    Interchange / FMSI:

    FMSI: D2383-9350 · D2383P

    Interchange: 105.17901 · 106.17901 · 319.17901 · ALD2383C · FLD1790 · GNAD1790 · PXD1790H · SC2383 · P24252 · P24252N · ML3Z2200B · ML3Z2200C · ML3Z2200D · ML3Z2200E · ML3Z2200F · NL1Z2200A

    This part cross-references / interchanges with the following part numbers:

    ALD2383C, FLD1790, GNAD1790, PXD1790H, D2383P, SC2383, P24252, P24252N, 105.17901, 106.17901, 319.17901, ML3Z2200B, ML3Z2200C, ML3Z2200D, ML3Z2200E, ML3Z2200F, NL1Z2200A, D2383-9350

    Frequently Asked Questions

    Are these 2021-2025 Ford F-150 brake pads for the front or the rear axle?

    These 2021-2025 F-150 brake pads are rear pads, sold as Raybestos MGD2383CH.

    Are these also 2023 Ford Expedition brake pads, and do they fit the 2024 Lincoln Navigator?

    Yes. Raybestos MGD2383CH fits the rear of the 2023 Ford Expedition and the 2024 Lincoln Navigator.

    Do Raybestos pads like this one come with hardware and shims?

    Yes. This set includes mounting hardware and multi-layered steel shims. Brake lubricant is not included.

    Are these RAYBESTOS element 3 brake pads, and are they slotted?

    No. Raybestos MGD2383CH is from the R-Line series, a ceramic pad. It is slotted, with chamfered edges that match the OE design for less noise, vibration and harshness.

    Does Raybestos MGD2383CH replace OE number ML3Z2200B?

    Yes. ML3Z2200B is one of the OE numbers that Raybestos MGD2383CH replaces, and other cross-reference numbers are listed on this page.
